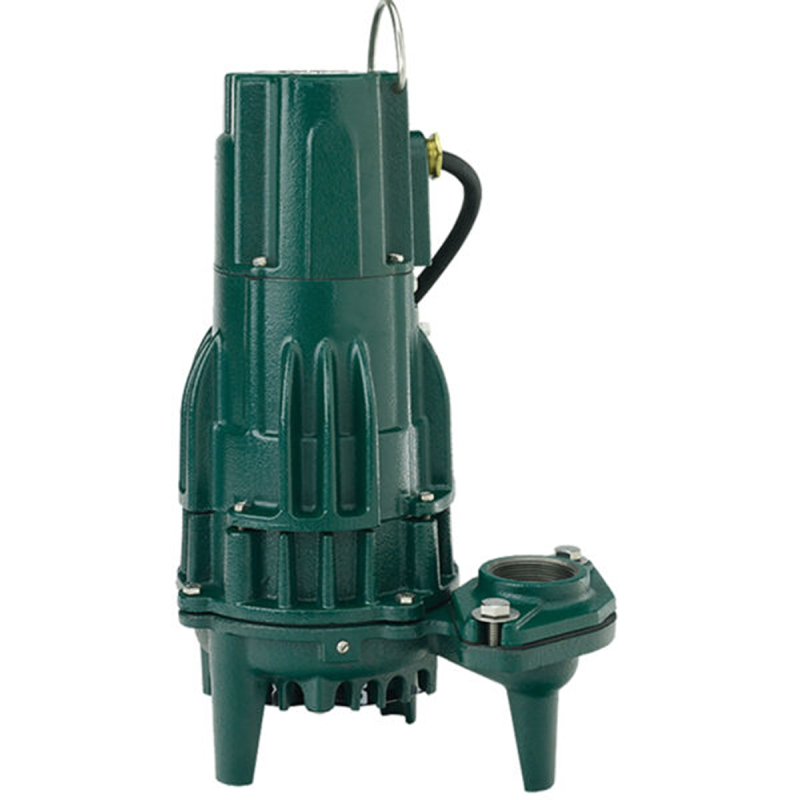

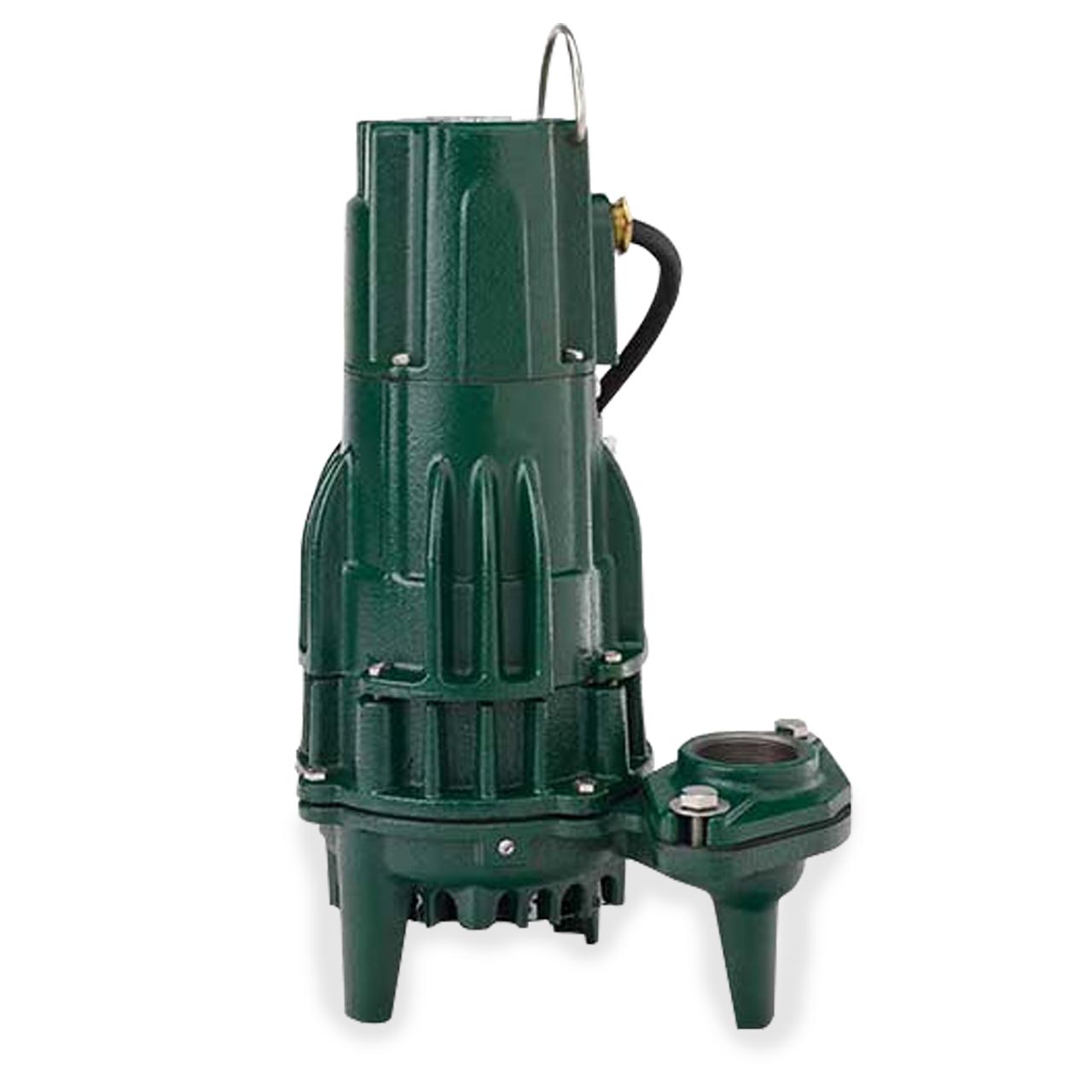

Zoeller 186-0009 Model J186 High Head Effluent Pump 1.5 HP (20 ft Cord)

Product Description

Zoeller 186-0009 is a high-head submersible effluent pump, model J186, equipped with a 1.5 HP, 200 V motor. It uses a bronze non-clogging vortex impeller that passes 3/4" (19 mm) spherical solids and provides up to 114 ft head and 58 GPM. The oil-filled, hermetically sealed motor includes automatic reset thermal overload protection; construction is cast iron with a powder-coated epoxy finish and a 20 ft UL-listed 4-wire cord.

• Bronze non-clogging vortex impeller passes 3/4" (19 mm) spherical solids
• Oil-filled, hermetically sealed motor with automatic reset thermal overload protection
• Cast iron construction with powder-coated epoxy finish, 1-1/2" NPT vertical discharge, 20 ft UL-listed 4-wire cord (no plug)

Product Highlights

High-head 1.5 HP submersible effluent pump, 200 V, up to 114 ft head and 58 GPM, 1-1/2" NPT discharge, passes 3/4" solids.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 186-0009

Technical Specifications

• Brand: ZOELLER
• MPN: 186-0009
• Model: J186
• Series: Flow-Mate / 180 Series
• Pump Type: High-head submersible effluent pump
• Input Voltage: 200 V (see note: phase information uncertain)
• Horsepower: 1.5 HP
• Full Load Amps: 7.5 A
• Motor Type: Oil-filled, hermetically sealed motor (see note: PSC vs. 3-phase inconsistency)
• RPM: 3450 RPM
• Maximum Head: 114 ft
• Maximum Flow: 58 GPM
• Discharge Size: 1-1/2" NPT vertical discharge
• Optional Discharge: 2" NPT or 3" NPT flange kits available
• Impeller Type: Bronze non-clogging vortex impeller
• Solids Handling: Passes 3/4" (19 mm) spherical solids
• Cord Length: 20 ft UL-listed 4-wire cord (no plug)
• Body Construction: Cast iron
• Seal: Stainless steel carbon and ceramic rotary shaft seal
• Finish: Corrosion-resistant powder-coated epoxy
• Maximum Operating Temperature: 130°F (54°C)
• Switch Type: Manual (nonautomatic, manual switch type)
• Mounting Type: Submersible
• Factory Testing: Pressure-tested and run before shipment
• Certifications: CSA, cCSAus
• Weight: 90 lbs
• Dimensions: 14.75 in L x 11.75 in W x 21.25 in H
• UPC: 053514026608
