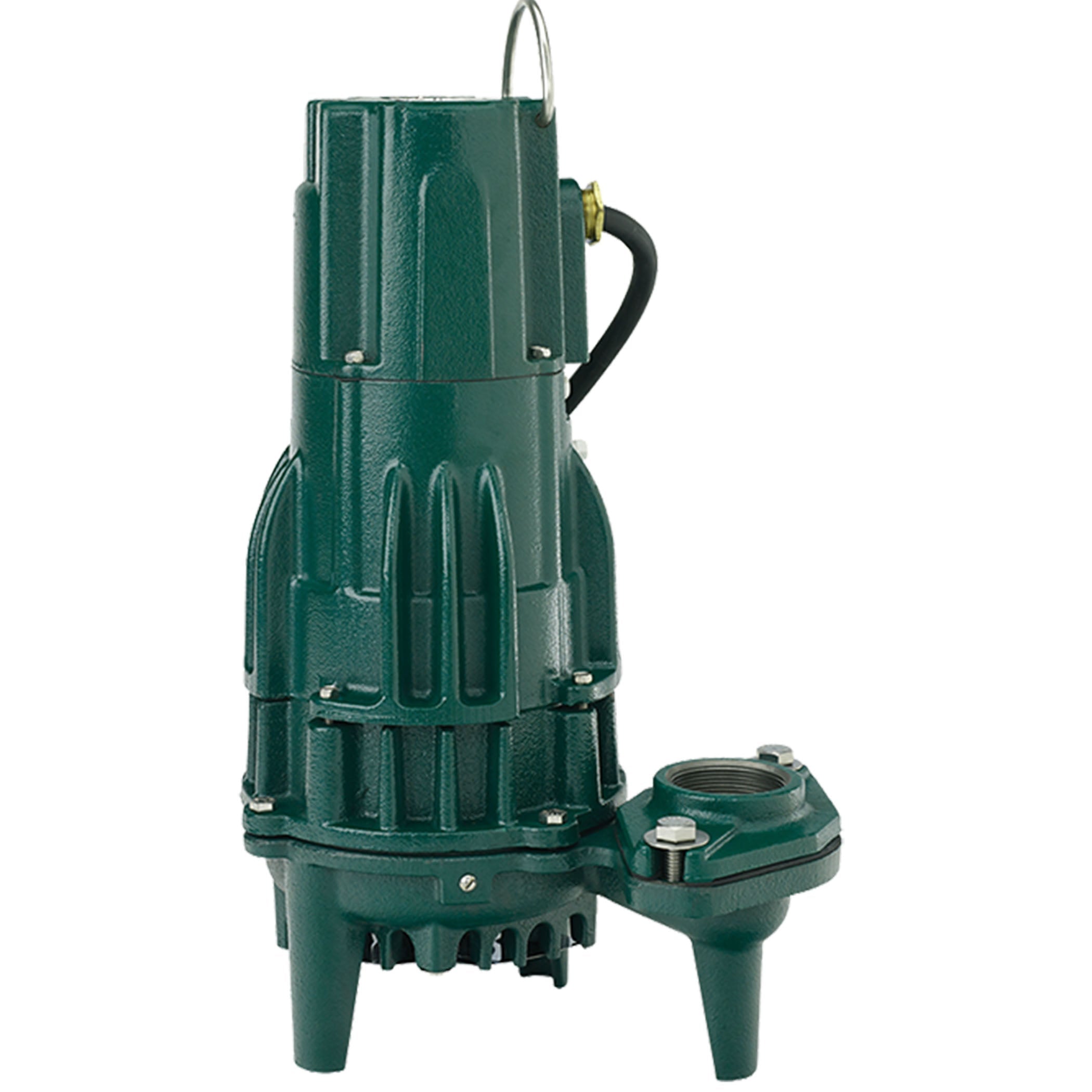

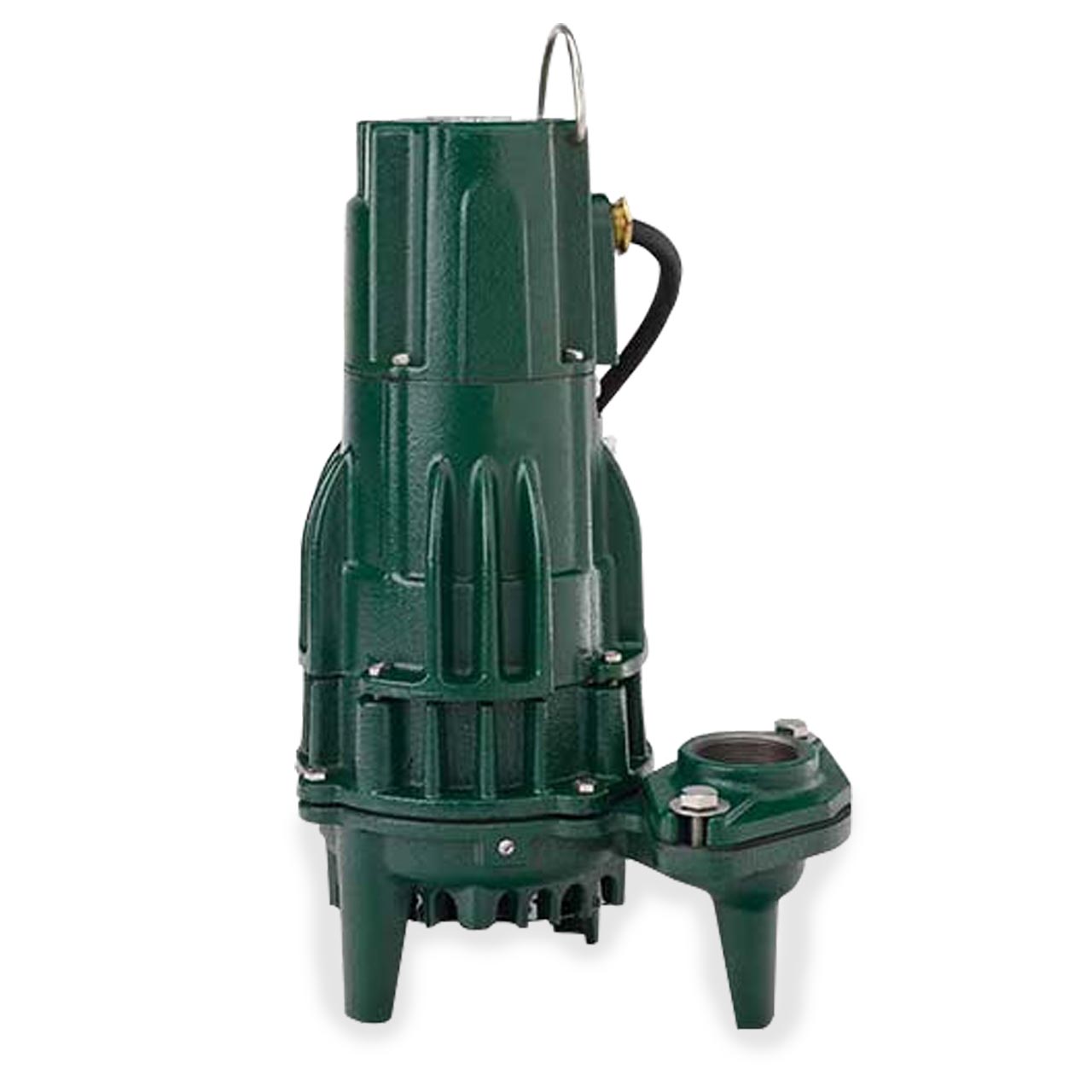

Zoeller 163-0008 Model J163 High Head Effluent Pump 0.5 HP (20 ft Cord) 490851

Product Description

The Zoeller 163-0008 is a submersible Flow-Mate high-head effluent pump with a 0.5 HP oil-filled motor rated for 200-208 V three-phase service and a 20 ft power cord. It features cast iron construction with a powder-coated epoxy finish, a bronze vortex impeller that passes up to 3/4" spherical solids, and a 1-1/2" NPT discharge for residential or light commercial dewatering and effluent transfer.

• Durable cast iron housing with corrosion-resistant powder-coated epoxy finish and stainless steel hardware
• Oil-filled, hermetically sealed motor with automatic-reset thermal overload protection; Permanent Split Capacitor motor, 3450 RPM
• Passes 3/4" (19 mm) spherical solids; 1-1/2" NPT vertical discharge; maximum head 66 ft and maximum capacity approximately 60 GPM

Product Highlights

Submersible nonautomatic effluent pump for residential and light commercial dewatering; 0.5 HP, 200-208 V 3-phase, 20 ft cord, bronze vortex impeller.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 163-0008

Technical Specifications

• Brand: Zoeller
• MPN: 163-0008
• Model: J163
• Series: Flow-Mate 160
• Type: High head effluent pump (submersible, nonautomatic)
• Horsepower: 0.5 HP
• Voltage: 200-208 V
• Phase: 3 Phase
• Full load amps: 8.5 A
• Motor type: Oil-filled, hermetically sealed; Permanent Split Capacitor (PSC)
• RPM: 3450 RPM
• Maximum head: 66 ft
• Maximum capacity: 60 GPM
• Discharge size: 1-1/2" NPT vertical discharge (standard)
• Optional discharge: 2" NPT flange kit or 3" NPT flange kit available
• Cord length: 20 ft (UL-listed 4-wire cord, no plug)
• Solids handling: Passes up to 3/4" (19 mm) spherical solids
• Impeller material: Bronze, non-clogging vortex (Bronze Class 85-5-5-5)
• Seal type: Single mechanical seal (carbon and ceramic)
• Body material: Cast iron
• Finish: Powder-coated epoxy
• Maximum fluid temperature: 130 F (54 C)
• Weight: 81.0 lbs
• Dimensions: 14.75 in L x 11.75 in W x 21.25 in H
• Operation: Nonautomatic (requires piggyback float switch or control panel for automatic operation)
• Testing: 100% pressure-tested, submerged and run to published performance curve
• Certifications: cCSAus
• Part number / Replacement MPN: 490851
