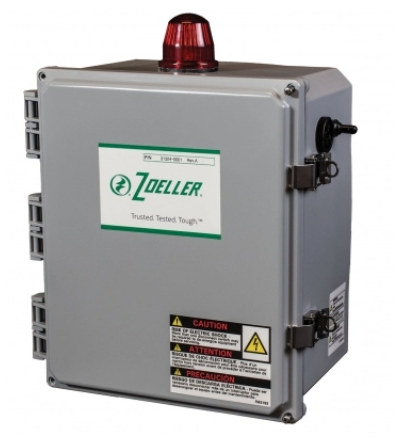

Zoeller 114E4-0001 Pivot Pro Series Simplex Control Panel 3-Phase 6-10A (14 x 12 x 6 in)

Product Description

Zoeller 114E4-0001 is a Pivot Pro Series simplex control panel that provides three-phase electrical cycling and protection for pump installations. It supports multi-tap 200/230/460 V input and 6–10 A pump operation, features a NEMA 4X lockable enclosure (14 x 12 x 6 in) for indoor or outdoor use, and includes RS-485 connectivity for optional remote monitoring.

• Multi-tap 200/230/460 V transformer; supports 6–10 A three-phase pumps and three-phase operation
• NEMA 4X 14 x 12 x 6 in lockable enclosure with labeled terminals; HAND/OFF/AUTO controls and SILENCE/RESET/TEST switch
• Integrated 360-degree alarm beacon and 95 dB audible alarm, RS-485 serial port for optional Z Control Gateway, individually fused alarm/control circuits

Product Highlights

Three-phase Pivot Pro simplex control panel with multi-tap transformer, NEMA 4X enclosure, RS-485 connectivity, audible and visual alarms, and serviceable labeled components.

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 114E4-0001

Technical Specifications

• Brand: Zoeller
• MPN: 114E4-0001
• Model: Pivot Pro Series Simplex Control Panel
• Product Type: Simplex control panel / pump control
• Compatible Series: Pivot Pro / Sim
• Phase: 3 Phase
• Input Voltage: 200 / 230 / 460 V (multi-tap)
• Current Range: 6 - 10 A
• Transformer: Multi-tap 200/230/460 V
• Control Power: 120 VAC, 60 Hz
• Alarm Power: Alarm circuit can be separately powered; terminals for 120 VAC control and alarm power
• Fusing: Alarm and control circuits individually fused, 3A fast-acting (120 VAC)
• Power Consumption: Max alarm and control (simplex) 32 W; Max standby 5 W
• Enclosure Rating: NEMA 4X
• Enclosure Dimensions: 14 x 12 x 6 in
• Enclosure Features: Lockable latch; 4 mounting brackets included; labeled wires and terminals
• Usage: Indoor or outdoor
• Controls: HAND/OFF/AUTO for pump; SILENCE/RESET/TEST toggle with weatherproof boot
• Communications: RS-485 serial port (12 VDC, 2 W) for optional Z Control Gateway
• Auxiliary Contacts: Dry contacts (NO-COM-NC), Form C, 5 A resistive
• Pump Run Contact: Dry contact (NO-COM)
• Alarm Beacon: 360-degree visibility
• Audible Alarm: 95 dB at 2 ft (0.6 m)
• Certifications: cCSAus certified to UL508; FCC Class-B to ISED Canada ICES-003
• Weight: 20 lb
• Compatibility: Compatible with multiple Zoeller pump models in Pivot Pro and Sim series
• Notes: Optional Z Control requires Wi-Fi Gateway 90002-0001; see supplied manuals for full technical specifications
