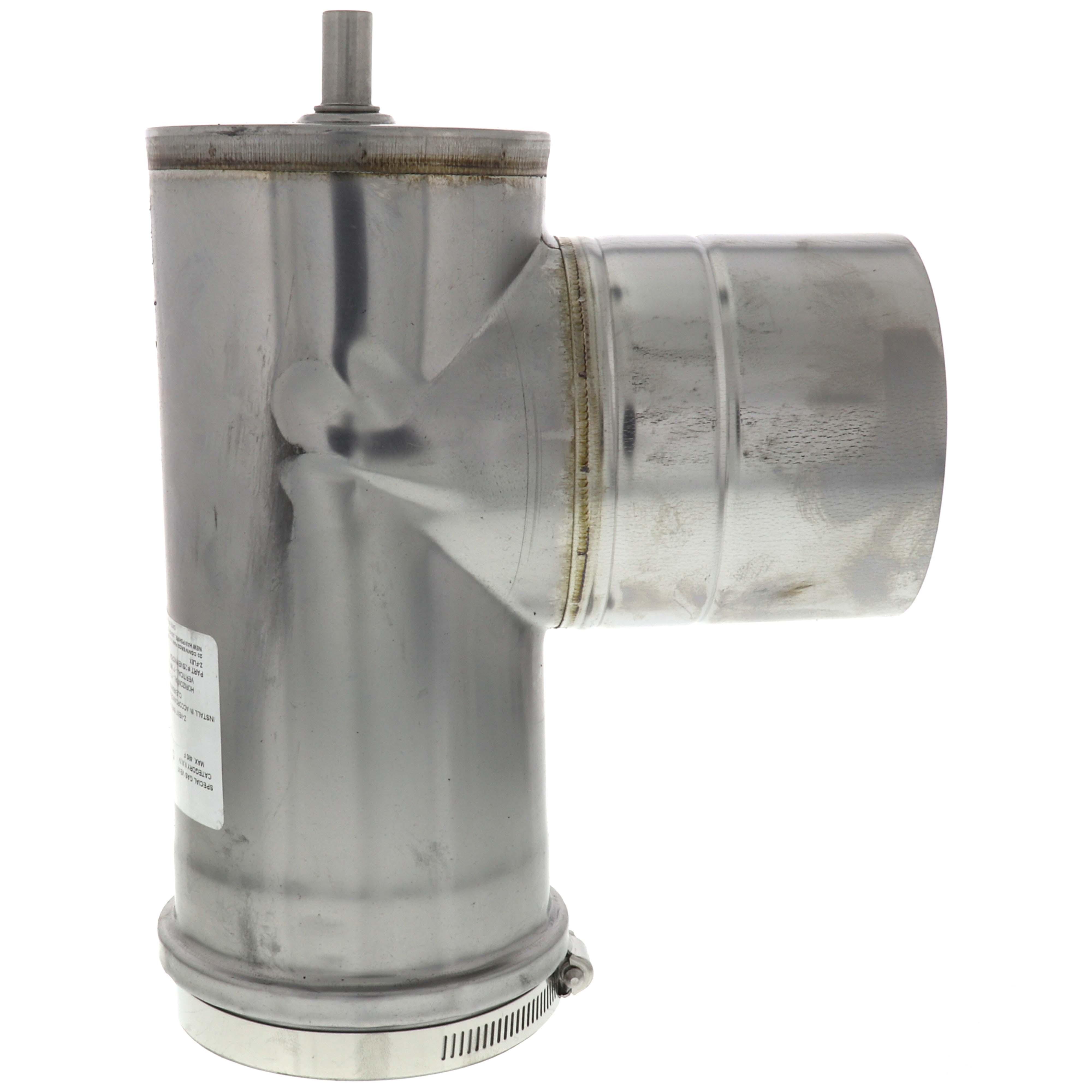

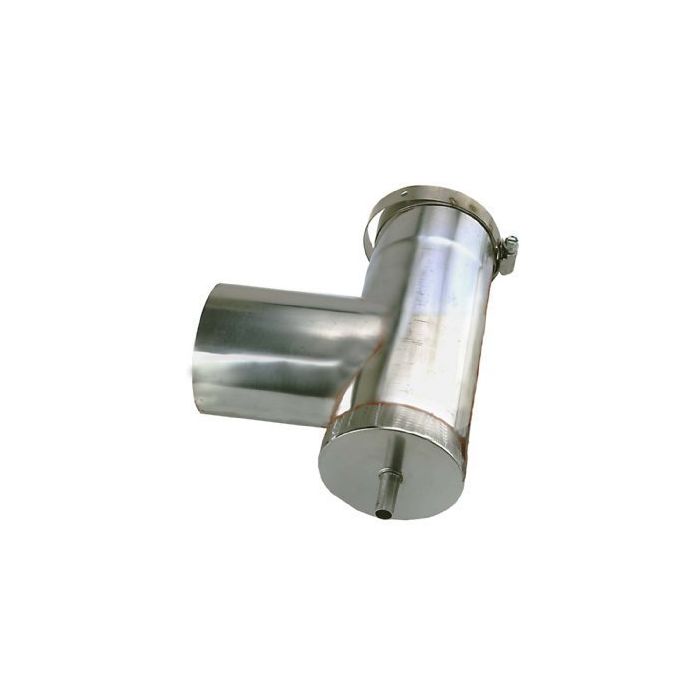

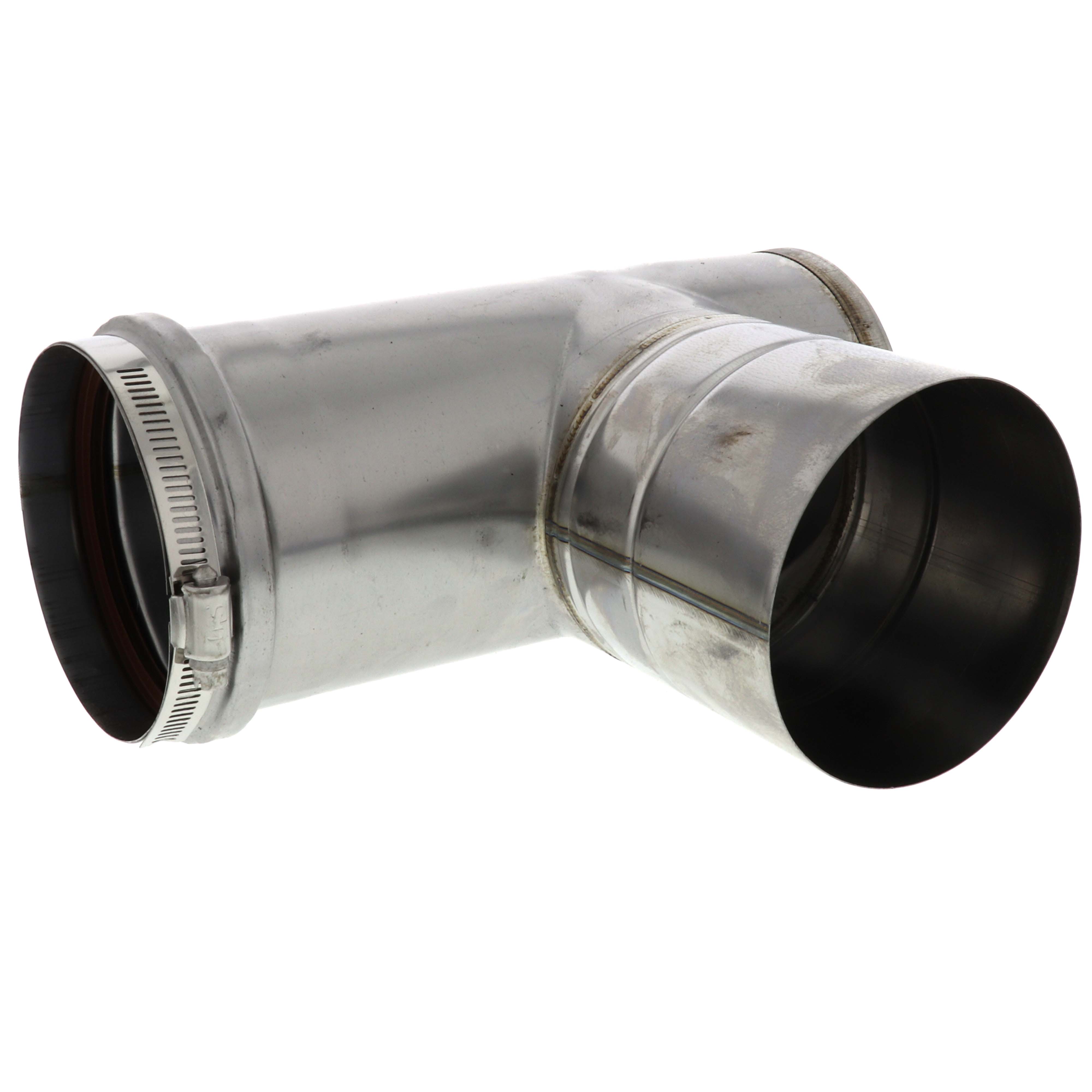

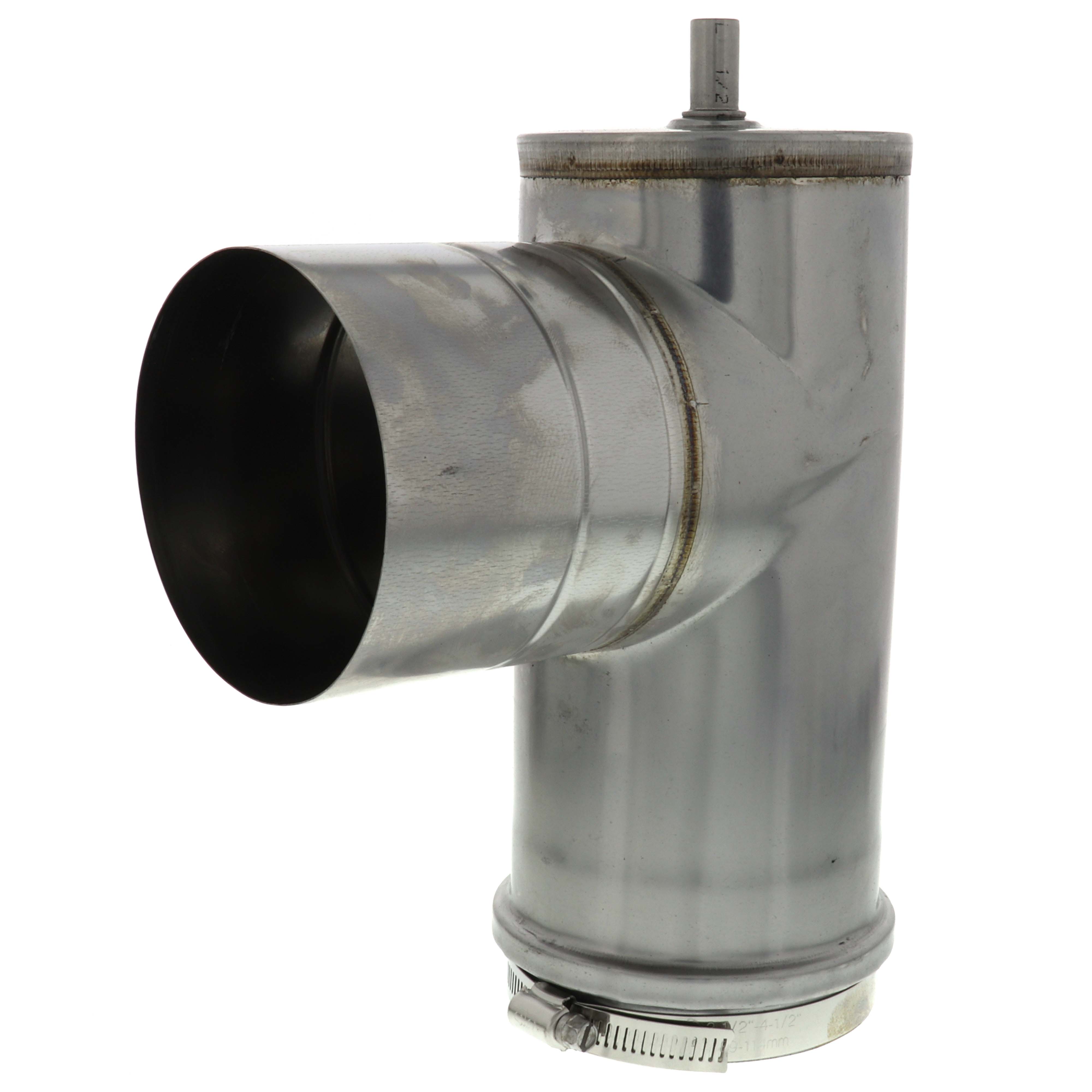

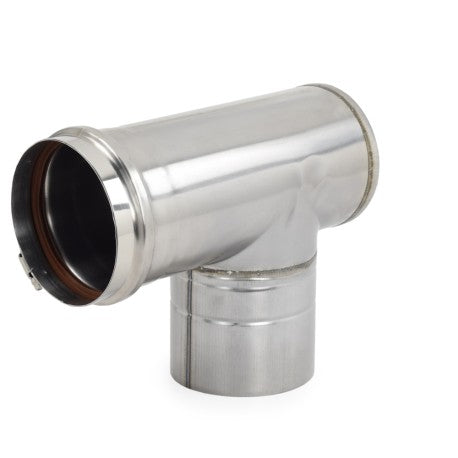

Z-Flex 2SVEVWCF04 Z-Vent Drain Tee Vertical 4 in

Product Description

The Z-FLEX 2SVEVWCF04 Z-Vent drain tee is a 4" vertical condensate drain tee, used to drain condensate on vertical pipe runs. It functions as a 2-in-1 condensate drain and a 90-degree elbow with a 3/8" condensate outlet. Suitable for positive or negative pressure and CAT II, III, IV venting approved.

• Suitable for positive or negative pressure
• UL tested and listed to UL1738/S636
• CAT II, III, IV venting approved

Product Highlights

This 4" vertical condensate drain tee is compatible with Z-Vent and NovaVent pipe and is UL listed for USA and Canada.

Product Information

Standard Information

• Brand: Z-FLEX
• Manufacturer Part Number: 2SVEVWCF04

Technical Specifications

• MPN: 2SVEVWCF04
• Manufacturer: Z-Flex
• UPC: 663053021196
• Product Type: DRAIN_STRAINER
• Product Group: Home Improvement
• Number of Items: 1.0
• Pkg Quantity: 1.0
• Size [Features]: 4"
• Vent Type [Features]: Single Wall
• Product Type [Features]: Condensation Drain
• Diameter (Inches) [Features]: 4"
• Installation Type [Features]: Vertical
• Shipping Depth [Dimensions]: 10.38
• Shipping Width [Dimensions]: 7.5
• Shipping Height [Dimensions]: 4.38
• Vent Size: 4" (nominal size and actual OD)
• Condensate Drain Connection: 3/8"
• Max. Temperature: 480°F (249°C)
• Material: AL29-4C
• Hex Nut Size: 5/16"
• Certifications/Standards: UL listed for USA and Canada, meets UL 1738
• Connector Type: Elbow
• Item Weight: 4 Pounds
• Unit Count: 1.0 Count
