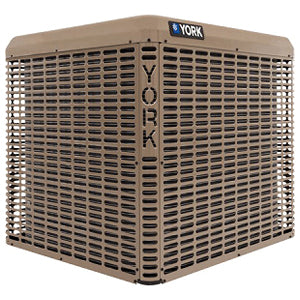

York YHE18B21S Split-System Heat Pump 1.5 Ton Replacement MPN

Product Description

The York YHE18B21S is a residential split-system heat pump designed for reliable heating and cooling. This model features a capacity of 1.5 tons and operates with a SEER rating of 14. Its efficient design meets the latest energy standards.

• 14 SEER and 8.2 HSPF efficiency ratings
• Durable construction with G90 galvanized steel
• Easy installation and maintenance access

Product Highlights

This heat pump combines advanced features for optimal performance in various weather conditions. It is designed to work efficiently with indoor coils, ensuring a complete climate control solution.

Product Information

Standard Information

• Brand: York
• Manufacturer: York

Technical Specifications

• Amperage Rating: 0.8 A
• BTU Rating: 18 mbh
• CFM Rating: 2850 cfm
• Coil Rating: 16.15 sq-ft Face Area, 22 fins/in
• Color: Champagne
• Compressor Type: Scroll
• Connection Type: 3/8 in Liquid, 3/4 in Vapor
• Decibel Rating: 72 dBA Cooling and Heating
• Dimension: 29-1/4 in W x 33-1/14 in H x 29-1/4 in D
• Finish: G90 Galvanized
• Frequency Rating: 60 Hz
• HP Rating: 1/8 hp
• HSPF: 8.2
• Item Name: Split-System Heat Pump
• Material: Steel
• Phase: 1 ph
• RPM: 1075 rpm
• Refrigerant: R-410A
• SEER: 14
• Series: LX, YHE
• Stages: 1
• Temperature Rating: 55 - 125 deg F DB Cooling, -20 to 75 deg F DB Heating
• Tonnage: 1.5 ton
• Type: Residential
• Voltage Rating: 208/230 VAC
