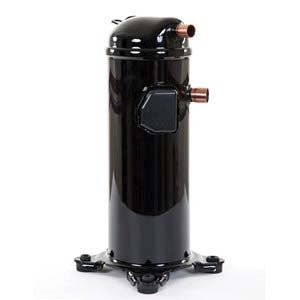

York S1-015-03594-004 Scroll Compressor 41.3 kBtu/hr 208/230 VAC R-410A

Product Description

The York S1-015-03594-004 is a scroll compressor designed for efficient operation in residential and light commercial air conditioning systems. This unit has a cooling capacity of 41.3 kBtu/hr and operates on a voltage rating of 208/230 VAC using R-410A refrigerant.

• Compact design reduces weight and noise
• Features internal motor protection
• Compatible with other major manufacturers

Product Highlights

This scroll compressor is ideal for applications needing effective temperature control and reliability.

Product Information

Standard Information

• Brand: York
• Part Number: S1-015-03594-004

Technical Specifications

• Amperage Rating: 21 A Rated Load, 115 A Locked Rotor
• BTU Rating: 41.3 kBtu/hr
• Connection Type: Brazed, 1/2 in Discharge x 7/8 in Suction
• Dimension: 239 mm L x 455 mm H x 184 mm Dia
• Frequency Rating: 60 Hz
• Item Name: Scroll Compressor
• Oil Type: PVE
• Phase: 1 ph
• Pressure Rating: 31.1 - 46.1 bar
• RPM: 3500 rpm
• Refrigerant: R-410A
• Temperature Rating: 45 - 100 deg F
• Viscosity: 68 cPs
• Voltage Rating: 208/230 VAC
• Wattage: 12.1 kW
