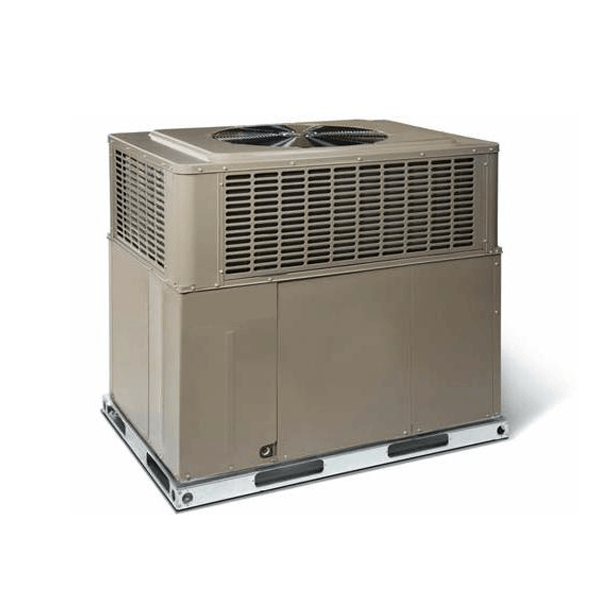

YORK PHE4B3624 LX Packaged Heat Pump 36,000 BTU 3 Ton

YORK
Brand: YORK
SKU: PHE4B3624
Availability: Out Of Stock
$8,699.20
$8,699.20
LTL Delivery

This product weighs 453 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The YORK PHE4B3624 is an LX series packaged electric cooling/heating unit that provides 36,000 BTU (3 ton) capacity for outdoor rooftop or ground installation. It is a single-package, single-stage heat pump operating on 1-phase 208/230 V with a SEER2 rating of 13.4. The unit includes condenser, evaporator coil and blower, and requires only utility and duct connections.

Key Features

  • 36,000 BTU (3 ton) packaged heat pump; single-package configuration with single-stage compressor
  • 1-phase 208/230 V operation with SEER2 13.4 (SEER 14, EER 11.0, HSPF 8.0); factory charged with R-410A refrigerant
  • Convertible airflow and field-convertible duct connections; corrosion-resistant condensate pan and G90 galvanized steel cabinet

Installation Notes

Requires only utility and duct connections at installation. Mounting is rooftop or ground installation. Airflow configuration is field convertible for side or bottom supply/return.

Technical Specifications
Series
LX / PHE4
Product Type
Packaged heat pump (self-contained rooftop or ground unit)
Cooling Capacity (BTU)
36,000
Heating Capacity (BTU)
33,500
Nominal Tons
3.0 Ton
SEER2
13.4
SEER
14
EER
11.0
HSPF
8.00
Refrigerant Type
R-410A
Phase
1-Phase
Input Voltage
208/230 V
Compressor Stage
Single
Cooling Stages
1
Maximum Airflow (CFM)
1,200
Dimensions (H x W x D inches)
47 in x 45.75 in x 51.25 in
Weight (lbs)
453
Mounting Type
Rooftop or ground installation
Cabinet
G90 galvanized steel with powder paint finish
Condensate Drain
3/4 inch NPT female
Airflow Configuration
Field convertible (side or bottom supply/return)
Notes
Requires only utility and duct connections at installation; includes condenser, evaporator coil and blower
Brand
YORK
Manufacturer Part Number
PHE4B3624
