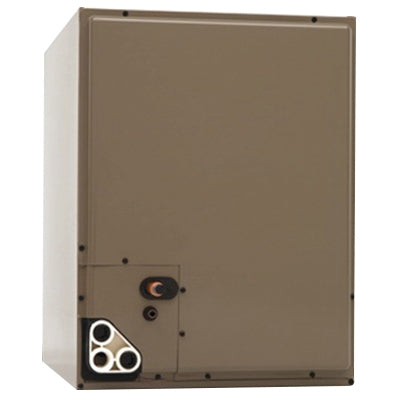

York CM60DXA2 Add-On Indoor Coil 5 Ton

Product Description

The York CM60DXA2 is a five-ton add-on indoor coil designed for use with UPG furnaces and modular air handlers. This equipment is integral to creating a matched air conditioning or heat pump system. The CM series features flexible installation options, providing versatility for various applications.

• Multi-position installation options.
• Heavy gauge galvanized steel construction.
• Factory-installed features for easy setup.

Product Highlights

The CM60DXA2 adds efficiency with a robust design and includes aluminum coils intended for long service life.

Product Information

Standard Information

• Brand: York
• Part Number: CM60DXA2
• Material: Steel

Technical Specifications

• Air Flow Direction: Multi-Position
• CFM Rating: 1800 cfm
• Coil Rating: 9.98 sq-ft Face Area, 2 Rows, 14 fins/in
• Coil Size: (3) 28 x 17.1 inches
• Connection Type: 3/8 inches Sweat Liquid, 7/8 inches Sweat Vapor
• Dimension: 24-1/2 inches W x 32-3/4 inches H x 21-1/2 inches D
• Finish: Galvanized
• Nominal Capacity: 5 ton
• Refrigerant: R-410A, R-22
• Standards/Certifications: cCSAus, AHRI certified, ISO 9001
• Applications: For split-system cooling and heat pump
