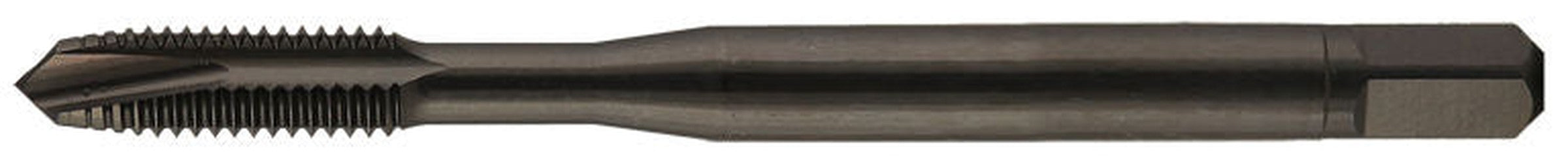

YMW 382604 YMW HP ZELX #6-32 H2 SP/PT PLUG TAP

Product Description

The YMW HP ZELX #6-32 H2 SP/PT Plug Tap, with part number 382604, is designed for threading and tapping in various materials. Made from high-speed steel, this tap is ideal for creating internal threads in soft and hard materials alike. It features a spiral point design which aids in chip removal and allows for efficient tapping. The plug tap configuration allows for easier entry into the material.

• High-speed steel material
• Plug tap for easy threading
• Spiral point for improved chip ejection

Product Highlights

This tap is suitable for use in machinery and metalworking projects where precision and durability are required.

Product Information

Standard Information

• Brand: YMW
• Material: High Speed

Technical Specifications

• Size: 6 - 32
• Shank: 0.1410 inches
• Overall Length: 2 inches (50.800 mm)
• Thread Length: 0.4130 inches (10.490 mm)
• Point Type: Spiral
• Flute Type: Spiral
• Limit: H2
• Chamfer: Plug
• Direction: Right Hand
• Coolant Hole: No
• Number of Flutes: 3
• Teeth: 3 - 5
