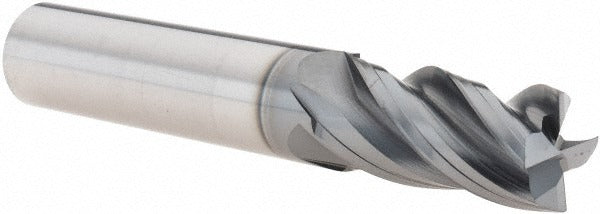

YG-1 UGMF70925 Corner Chamfer Radius End Mill

Product Description

The YG-1 UGMF70925 is a corner chamfer and corner radius end mill designed for precision milling operations in metal and composite materials. This tool produces chamfered or radiused corner profiles in a single pass, reducing the need for secondary deburring or finishing operations. With a 1.5-inch length of cut, it accommodates medium-depth profiling work. It is intended for use by machinists and tooling professionals on CNC machining centers and manual milling equipment where edge geometry and dimensional accuracy are critical.

This end mill is suited for job shop and production environments handling ferrous and non-ferrous workpieces. Typical applications include edge preparation, corner blending, and chamfer milling on components requiring tight geometric tolerances. The 1.5-inch cutting length makes it a practical choice for moderate-depth slots, pockets, and peripheral milling passes where a combined chamfer and radius profile is needed in one tool.

Key Features

• Combined corner chamfer and corner radius geometry for dual-profile cutting in a single tool
• 1.5-inch length of cut for medium-depth milling applications
• Designed for CNC machining centers and conventional milling equipment
• Reduces secondary finishing steps by integrating chamfer and radius in one pass
• Packaged and sold individually (quantity of 1)

Compatibility

Designed as an OEM-style solid end mill for use in standard milling machine tool holders and CNC machining center spindles accepting the appropriate shank diameter and connection type.

Installation Notes

This tool is installed and serviced by machinists and CNC tooling technicians. Ensure the machine spindle is fully stopped and locked out before changing or inspecting tooling. Secure the end mill in a properly sized collet or end mill holder torqued per the tool holder manufacturer's specifications. Verify runout with a dial indicator before beginning production cuts.
