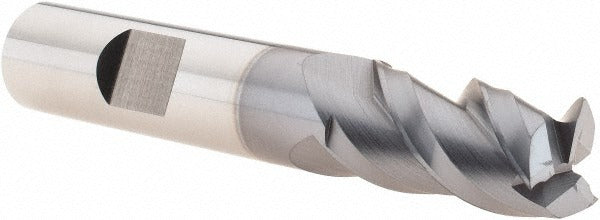

YG-1 34593TC Square End Mill 3 Flute Solid Carbide Ticn

Product Description

The YG-1 34593TC is a 3-flute, solid carbide square end mill designed for high-performance milling in steel and stainless steel applications. Built from micrograin carbide and coated with TiCN, it delivers wear resistance and edge retention in demanding cutting conditions. The 45-degree helix angle promotes efficient chip evacuation and smooth cutting action. With a 1/2 inch mill diameter, 1 inch length of cut, and 3 inch overall length, this single-end tool fits standard milling setups. It is intended for use by machinists and tool-and-die professionals working on CNC machining centers and manual mills.

This end mill is suited for milling steel, stainless steel, cast iron, super alloys, and titanium. The right-hand cutting and right-hand flute direction make it compatible with standard spindle configurations. The straight cylindrical shank fits conventional collets and end mill holders with a 1/2 inch bore. It is well matched for finishing and semi-finishing passes in production and job-shop environments where tool life and dimensional accuracy are priorities.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• TiCN coating extends tool life in steel and stainless steel applications
• 45-degree helix angle promotes chip evacuation and reduces cutting forces
• 3-flute geometry balances material removal rate with chip clearance
• Right-hand cut, right-hand spiral flute for standard machine spindles
• Mill diameter tolerance of 0.0000 to -0.0012 inches for consistent fit

Compatibility

Designed as a direct-fit replacement for standard 1/2 inch straight-shank end mill holders and collet chucks in CNC and manual milling applications targeting steel, stainless steel, cast iron, super alloys, and titanium workpiece materials.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the spindle is fully stopped and the machine is in a safe lockout state before changing tooling. Seat the straight cylindrical shank fully into the collet or end mill holder and torque the retention nut to the holder manufacturer specification. Verify runout with a dial indicator before beginning a cut to confirm proper seating and minimize tool deflection.
