Yellow Jacket 68862 Digital Charging Scale 220lbs

Product Description

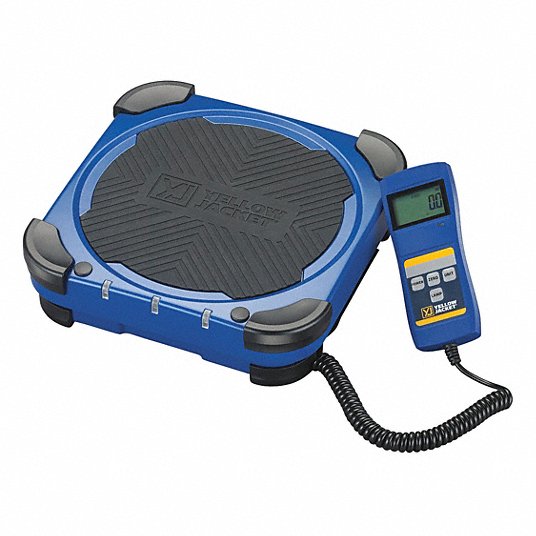

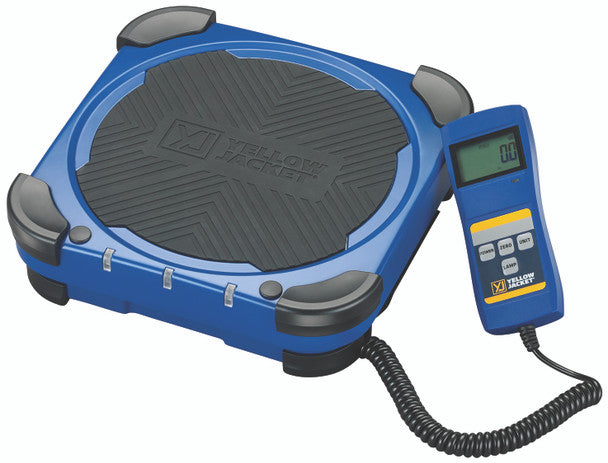

The YELLOW JACKET 68862 digital charging scale has a capacity of 220lbs. With 0.05% accuracy and 0.17 oz resolution, this compact charging scale provides precise information. It features a large, backlit LCD and a control module with a six-foot cord for ease of use. Ideal for service technicians needing accurate refrigerant measurements.

• Compact and lightweight design
• Maximum weight capacity of 220 lb
• Includes carrying case, shoulder strap, and storage pouch

Product Highlights

This digital charging scale offers accuracy and convenience for refrigerant handling.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 68862
• Country of Origin: China

Technical Specifications

• MPN: 68862
• Brand: YELLOW JACKET
• Capacity: 220 lb
• Width: 10.6 in
• Depth: 2.9 in
• Height: 10.6 in
• Display: 1/2 in LCD (7-Segment)
• Power Source: (5) 1.5 V AAA Alkaline Batteries
• Type: Digital
• Accuracy: +/-0.05% Reading +/-17 oz
• Includes: Carrying Case, Shoulder Strap, Storage Pouch
• Resolution: 0.17 oz; 0.011 lb; 5 g
• For Use With: Eliminate Refrigerant Transfer From Tank to Cylinder to System
• Operating Mode: Handset with Cord
• Platform Size (In.): 12 x 12
• Weight Capacity: 220 lbs. (100 kg)
• Readout Options: lbs. / oz. / kg
• Battery Type: 5 x 1.5V 'AAA' Alkaline Batteries
• Battery Life: 40 hours continuous
• Operating Temperature: 14° to 104° F (-10° to 40° C)
• Temperature Fluctuation Range: 41° F/hr (5° C/hr)
• Storage Temperature: 5° to 122° F (-15° to 50° C)
• Relative Humidity: 50 - 85%
• Display Type: LCD
• Display Location: Wired Handset
• Load Capacity: 220 lb
• Units Measured: kg; lb; oz
• Programmability: Non-Programmable
• For Refrigerant Type: Universal
• Battery: Battery
• Number of Batteries Required: 5
• Includes Batteries: Batteries Not Included
• Battery Recharge: Not Rechargeable
• Includes Low Battery Warning: Low Battery Warning Included
• A2L Compatibility: A2L Compatible
• Operating Temperature - Maximum: 104 °F
• Operating Temperature - Minimum: 14 °F
• Operating Humidity - Minimum: 50 %
• Operating Humidity - Maximum: 85 %
• Calibration Certificate Type: Not Certified
• System of Measurement: lb
• Refrigerant: R-410a
• Items Included: Carrying Case
• Features: Digital
• Platform Height: 2 in
• Platform Length: 12 in
• Platform Width: 12 in
