Yellow Jacket 67073 YJACK Charging & Air Kit (2 Press, 2 Temperature Clamps, 2 Dew Psychrometers)

YELLOW JACKET
Brand: YELLOW JACKET
SKU: 67073
Availability: In Stock

Ships same day if ordered by 12 pm
$915.01
$915.01
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

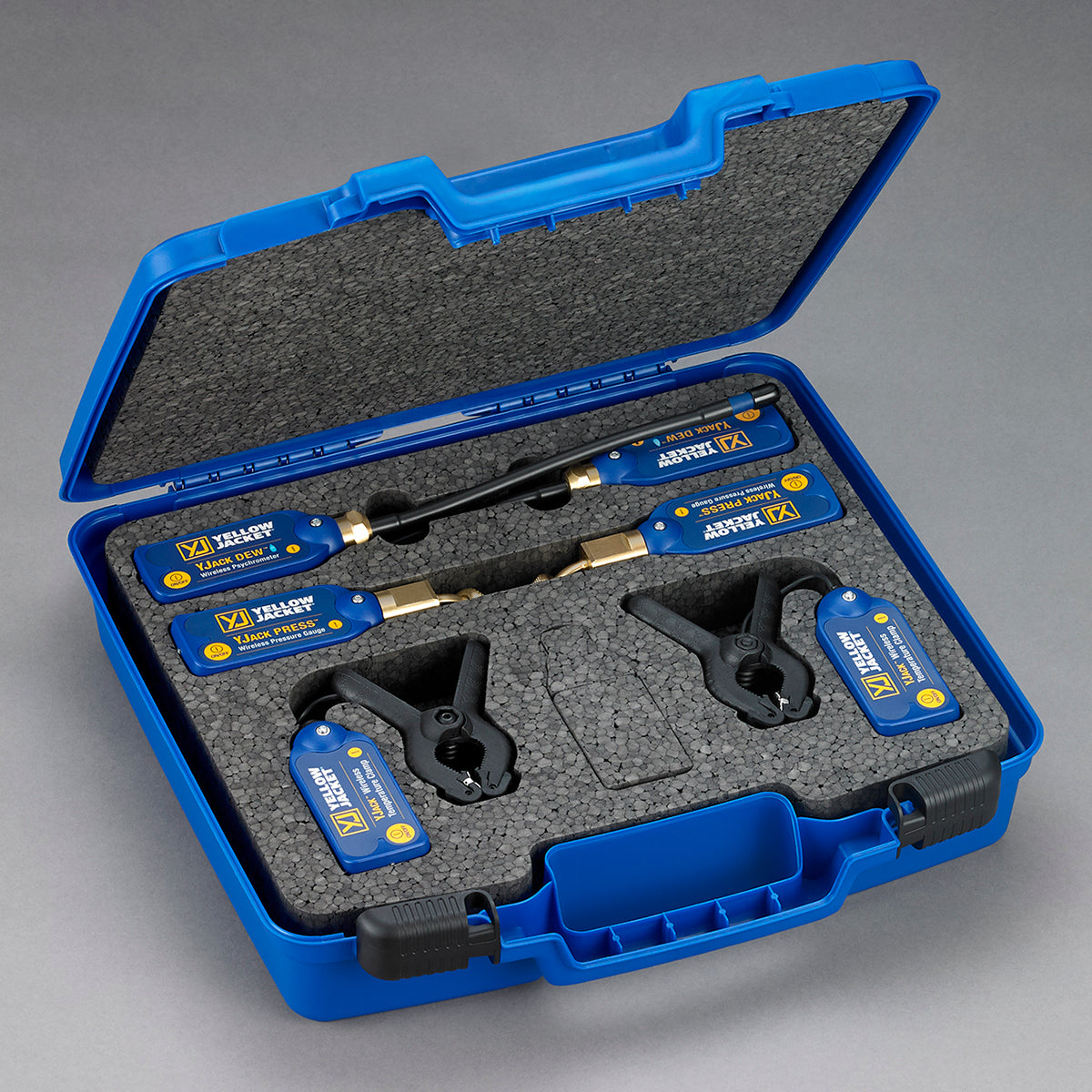

The Yellow Jacket 67073 YJACK Charging & Air Kit includes two YJACK PRESS pressure gauges, two YJACK temperature clamps, and two YJACK DEW psychrometers for HVAC/R charging and airflow diagnostics. The wireless probes provide pressure, temperature and psychrometric measurements with Bluetooth connectivity and compatibility with the YJACK VIEW app and TITANMAX/P51-870 TITAN devices (firmware v2.0 or later). Probes are IP52 rated and battery powered for field use.

  • Includes 2 YJACK PRESS wireless pressure gauges, 2 YJACK temperature clamp probes and 2 YJACK DEW wireless psychrometers plus accessories and case.
  • Wireless Bluetooth connectivity (YJACK PRESS Bluetooth 5.2 LE; YJACK DEW Bluetooth 4.2 LE) with long line-of-sight range for remote viewing, logging and reporting via YJACK VIEW and compatible digital manifolds.
  • Measurement capabilities: pressure to -14.7 to 725 psig, temperature ranges per probe, DEW measures relative humidity, wet bulb, dew point; IP52 rated.

Product Highlights

Wireless pressure, temperature and psychrometric probes for HVAC/R charging and airflow diagnostics; Bluetooth connectivity and YJACK VIEW compatibility; IP52 rated.

Product Information

Standard Information

  • Brand: YELLOW JACKET
  • Manufacturer Part Number: 67073
  • Country of Origin: United States
Technical Specifications
Brand
Yellow Jacket
MPN
67073
Model
67073
Includes
2 YJACK PRESS wireless pressure gauges; 2 YJACK temperature clamp wireless probes; 2 YJACK DEW wireless psychrometer probes; accessories; hard case; batteries
Batteries
2x AAA per probe (12 AAA included)
Wireless Range
Up to 1000 ft line-of-sight for YJACK PRESS and Temperature Clamp probes (manufacturer note applies)
Bluetooth
YJACK PRESS Bluetooth 5.2 low energy; YJACK DEW Bluetooth 4.2 low energy
Compatibility
YJACK VIEW app; TITANMAX and P51-870 TITAN digital manifolds (firmware v2.0 or later)
A2L Compatible
Yes

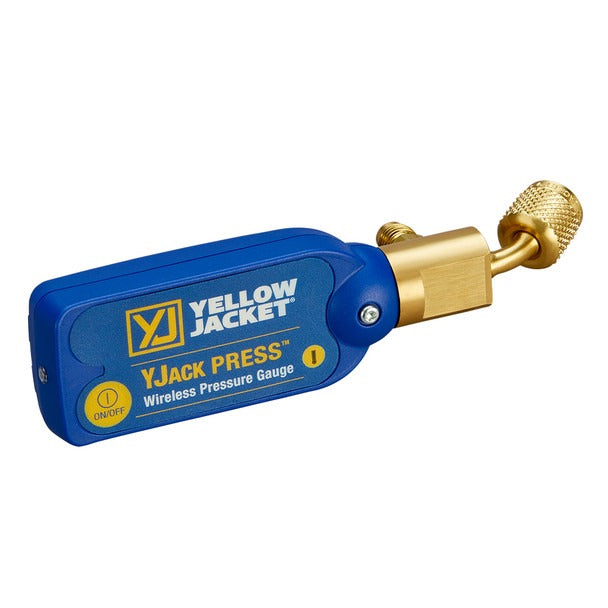

YJACK PRESS - Measurement Type
Pressure
YJACK PRESS - Working Pressure
-14.7 to 725 psig (-1.01 to 50 bar gauge)
YJACK PRESS - Pressure Sensor Accuracy
0.5% full scale at 77 F (25 C); 1.8% full scale from 0 F to 130 F (-18 C to 55 C)
YJACK PRESS - Temperature Measurement Range
-40 F to 176 F (-40 C to 80 C)
YJACK PRESS - Temperature Accuracy
+/- 1.0 C TYP
YJACK PRESS - Response Time
10 seconds to 90% of differential TYP
YJACK PRESS - Operating Temperature
-0.4 F to 131 F (-18 C to 55 C)
YJACK PRESS - Storage Temperature
-40 F to 131 F (-40 C to 50 C)
YJACK PRESS - Battery Life
1200 hours (2x AAA included)
YJACK PRESS - IP Rating
IP52
YJACK PRESS - Quick Coupler Fitting
1/4 inch Flare with depressor
YJACK PRESS - Charging Port
1/4 inch male flare with core

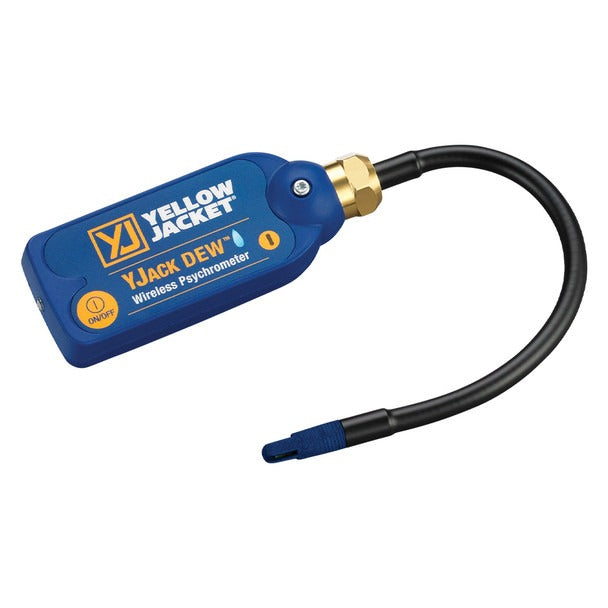

YJACK DEW - Measurements
Relative humidity, dry bulb temperature, wet bulb temperature, dew point temperature
YJACK DEW - Relative Humidity Range
0 to 100% RH
YJACK DEW - Relative Humidity Accuracy
+/- 2.0 %RH TYP (10 to 90 %RH)
YJACK DEW - Temperature Measurement Range
-40 F to 257 F (-40 C to 125 C)
YJACK DEW - Temperature Accuracy
+/- 0.2 C TYP (-10 to 80 C)
YJACK DEW - Operating Temperature
-0.4 F to 131 F (-18 C to 55 C)
YJACK DEW - Storage Temperature
-40 F to 122 F (-40 C to 50 C)
YJACK DEW - Battery Life
1500 hours (2x AAA included)
YJACK DEW - IP Rating
IP52
YJACK DEW - Wand Length
8 inch flexible steel wand for sensor positioning
Temperature Clamp - Measurement Type
Surface pipe temperature
Temperature Clamp - Pipe Diameter Max
Up to 1.25 inch (32 mm)
Temperature Clamp - Measurement Range
-40 F to 176 F (-40 C to 80 C)
Temperature Clamp - Accuracy
+/- 1.0 C TYP
Temperature Clamp - Response Time
10 seconds to 90% of differential TYP
Temperature Clamp - Operating Temperature
-0.4 F to 131 F (-18 C to 55 C)
Temperature Clamp - Storage Temperature
-40 F to 131 F (-40 C to 55 C)
Temperature Clamp - Battery Life
1200 hours (2x AAA included)
Temperature Clamp - IP Rating
IP52
Measurement Units (pressure)
psig, psia, bar, kPa, MPa, kg/cm^2
Working Use
HVAC/R system charging, low-side and high-side pressure and temperature measurement; supply and return air psychrometric calculations
Dimensions (Pressure Gauge)
6.5 inch L x 1.8 inch W x 2.3 inch H (165 x 45 x 58 mm)
Weight (Pressure Gauge)
0.52 lb (235 g)
Dimensions (Temperature Clamp incl clamp)
10 inch L x 4 inch W x 1.5 inch H (254 x 102 x 38 mm)
Weight (Temperature Clamp)
0.35 lb (160 g)
Dimensions (Dew incl wand)
13 inch L x 1.7 inch W x 1.4 inch H (330 x 43 x 36 mm)
Weight (Dew Psychrometer)
0.38 lb (175 g)
