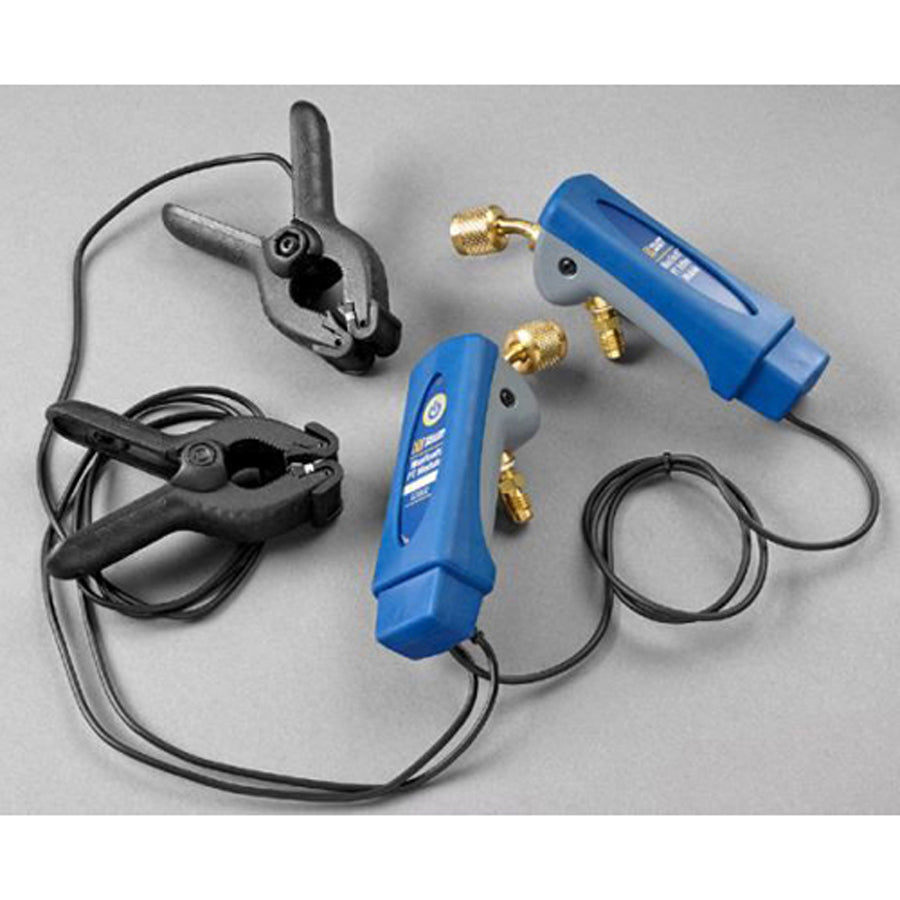

Yellow Jacket 67002 Wireless Digital Pressure Temperature Gauge

Product Description

The YELLOW JACKET 67002 is a wireless digital pressure and temperature gauge set designed for HVAC/R service work. It measures from 0 to 700 PSIA with a full-scale accuracy of 0.5 percent at 25 degrees C, giving technicians reliable pressure readings across a wide service range. The dual-gauge set transmits readings wirelessly, eliminating the need to physically check gauge faces while working around equipment. The high-impact glass-reinforced housing protects the unit in demanding field conditions, and an integrated rubber side grip allows secure one-hand handling. An integral magnet mounts the gauge directly to equipment framework, keeping hands free during service calls.

This gauge set is built for HVAC/R applications including refrigerant charging, system diagnosis, and pressure testing on residential and commercial refrigeration and air conditioning equipment. Built-in Schrader ports allow refrigerant charging with or without hoses attached, streamlining setup and teardown. The interchangeable and removable vacuum gauge combined with an easy-to-clean vacuum sensor makes the 67002 a practical choice for technicians who perform both pressure and vacuum service regularly. Its wireless operation is especially useful in confined mechanical rooms or rooftop equipment where gauge access is limited.

Key Features

• Wireless digital display transmits pressure and temperature readings remotely
• 0 to 700 PSIA measurement range with 0.5 percent full-scale accuracy at 25 degrees C
• Built-in Schrader ports support refrigerant charging with or without hoses
• Interchangeable and removable vacuum gauge with easy-to-clean vacuum sensor
• High-impact glass-reinforced housing for rugged field use
• Integral magnet for hands-free mounting on equipment framework

Compatibility

Designed for use in HVAC/R pressure and temperature service applications. Suitable for refrigerant charging, system diagnosis, and vacuum service on air conditioning and refrigeration equipment.

Installation Notes

Installation and use should be performed by a licensed HVAC/R technician. Always recover refrigerant and relieve system pressure before connecting or disconnecting gauge ports. Verify that all Schrader valve cores and port connections are secure and leak-free before taking readings. Follow applicable EPA Section 608 regulations when handling refrigerants.

Technical Specifications

• Application: HVAC/R
• Display Type: Digital, Wireless
• Pressure Gauge Type: Wireless, Dual, PSIA
• Minimum Pressure: 0 PSIA
• Maximum Pressure: 700 PSIA
• Full Scale Accuracy: 0.5 percent at 25 degrees C, 1 percent at 55 to 130 degrees F, 2 percent at -40 to 248 degrees F
• Temperature Rating: -4 to 160 degrees F

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 67002
