Yellow Jacket 49002 Compound Gauge 2-1/2 inch (2-1/2 in)

Product Description

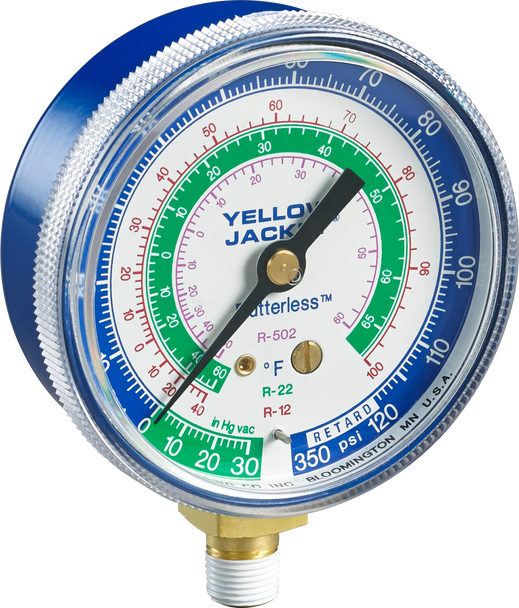

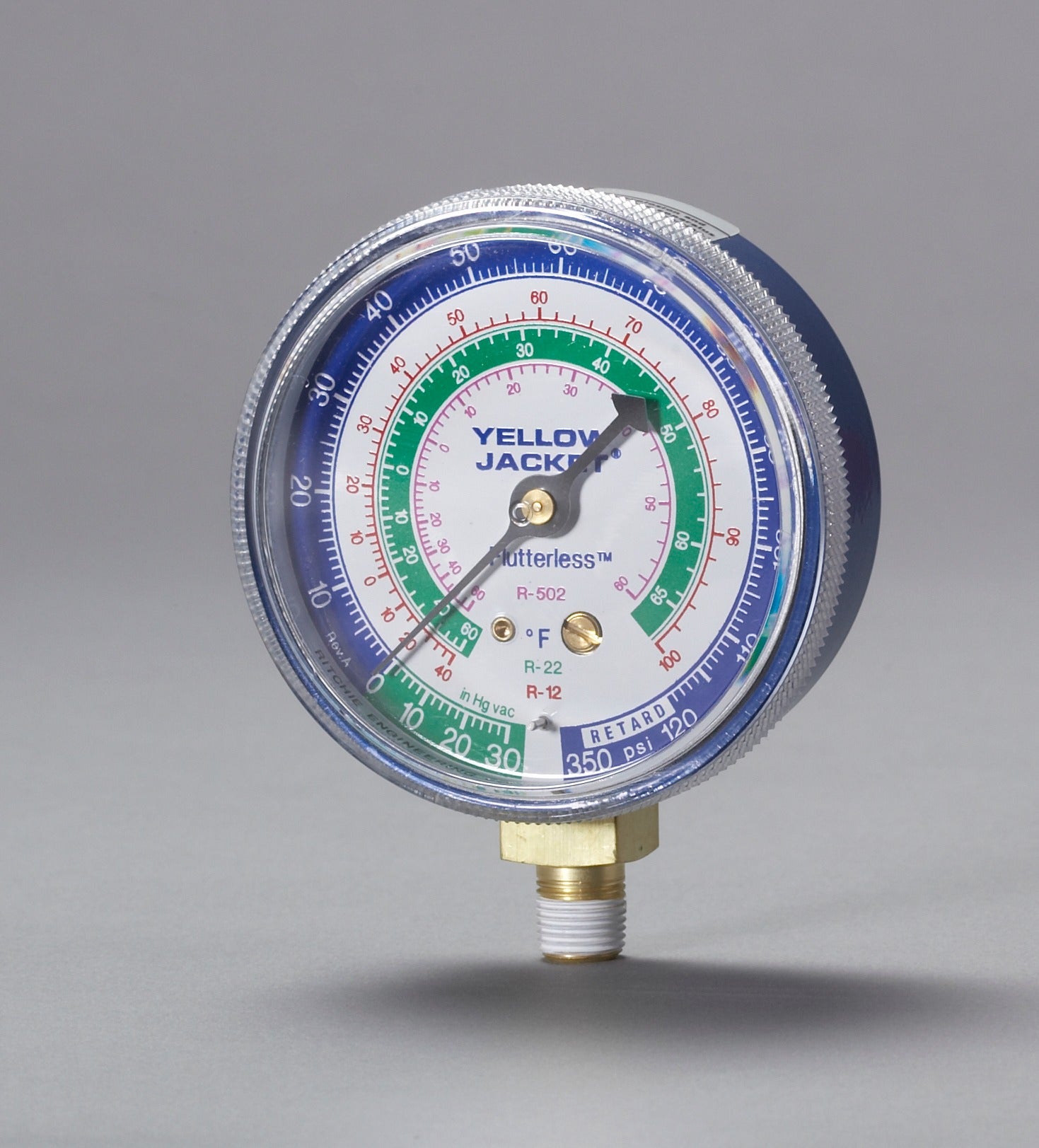

Yellow Jacket 49002 is a 2-1/2-inch compound refrigeration gauge for service on R-12, R-22 and R-502 systems. The gauge reads 0–120 psi with retard protection to 350 psi, includes a 30 inch lead/tubing and mounts via a 1/8" NPT male connection. It uses a steel case with Flutterless surge protection and calibration traceable to NIST for HVAC/R diagnostics and pressure measurement.

• 2-1/2-inch dial; compound gauge for pressure and vacuum service
• Pressure range 0–120 psi with retard protection to 350 psi; compatible with R-12, R-22, R-502
• 1/8" NPT male connection, 30" lead/tubing, steel case, Flutterless surge protector; NIST-traceable calibration

Product Highlights

2-1/2-inch compound refrigeration gauge for R-12/R-22/R-502 with 0–120 psi range and 1/8" NPT connection.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 49002
• Country of Origin: US

Technical Specifications

• Brand: Yellow Jacket
• Manufacturer: Fotronic Corporation
• Manufacturer Part Number: 49002
• Dial Size: 2-1/2 inches
• Gauge Type: Compound gauge
• Pressure Units / Temperature Scales: psi (pressure); temperature scales in °F for refrigerant temperature readings
• Pressure Range: 0-120 psi (retard protection to 350 psi)
• Lead/Tubing Length: 30 inches
• Connection: 1/8" NPT male
• Case Material: Steel
• Accuracy: Full scale ±3%, mid scale ±2%
• Calibration: Traceable to NIST standards
• Refrigerants: R-12, R-22, R-502
• Surge Protection: Flutterless surge protector
• Weight: 6.4 ounces
• Notes: Gauge not meant to be used with nitrogen
