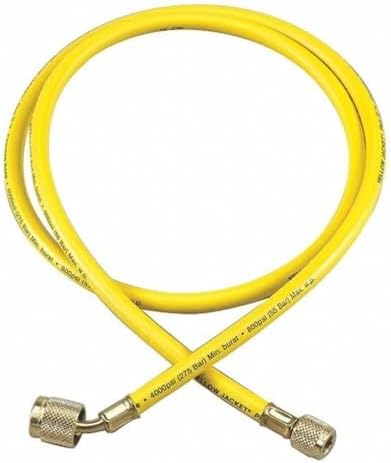

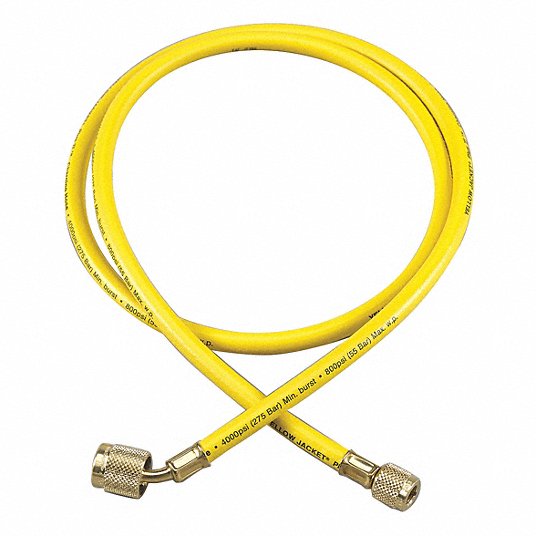

Yellow Jacket 22012 Charging/Vacuum Hose 12 inches L Brass Fitting

Product Description

The YELLOW JACKET 22012 charging/vacuum hose is designed to reduce refrigerant permeation during the charging process. It features a 1/4" female connection, a 45-degree angle for easy installation, and is constructed from durable rubber with brass fittings. Suitable for use with refrigerant manifold gauge sets.

• 12" long yellow hose
• 45° end for easy installation in tight areas
• Gaskets resist deterioration from existing CFC, HCFC and HFC refrigerants and oils

Product Highlights

This hose is UL recognized and Made in the USA. It features a low loss anti-blow back SealRight fitting.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 22012
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Charging/Vacuum Hose
• Angle [Specifications]: 45 Degrees
• Length [Specifications]: 12 in
• For Use With [Specifications]: Refrigerant Manifold Gauge Sets
• Hose Material [Specifications]: Rubber
• Accessory Type [Specifications]: Charging/Vacuum Hose
• Burst Pressure [Specifications]: 4,000 psi
• Connection Size [Specifications]: 1/4 in Female
• Number of Hoses [Specifications]: 1
• Fitting Material [Specifications]: Brass
• Working Pressure [Specifications]: 800 psi
• Promotion Restriction [Specifications]: Not eligible for promotion
• Length (Straight Wireway) [Specifications]: 12 in
• Country of Origin (subject to change) [Specifications]: United States
• Brand: Yellow Jacket
• Product Dimensions: 12"L x 1"W
• Item Weight: 1 Pounds
• UPC: 686800220123
• Manufacturer: Yellow Jacket
• Unit Count: 1.0 Count
• Manufacturer Part Number: 22012
• Product Type: Hose
• Application: Charging
• Hose End Angle: 45
• Overall Length: 1 ft
• Bending Radius - Minimum: 6 in
• Manifold Connection Size: 1/4 in
• Manifold Connection Gender: Female
• Line Connection Size: 1/4 in
• Maximum Operating Pressure: 800 psi
• Operating Temperature - Minimum: -20 °F
• Maximum Operating Temperature: 180 °F
• For Refrigerant Group: CFC; HCFC;
• For Refrigerant Type: R-410A
• Standards: UL Listed
• UNSPSC: 40142007
• Model: 22012
• Condition: New
• Vendor Name: Yellow Jacket
• URI Part Number: 22012
• Vendor Part Number: 22012
• Length (In.): 12.00
• Shipping Weight (Lbs.): 0.30
• Operating Temperature: -20 to 180°F
