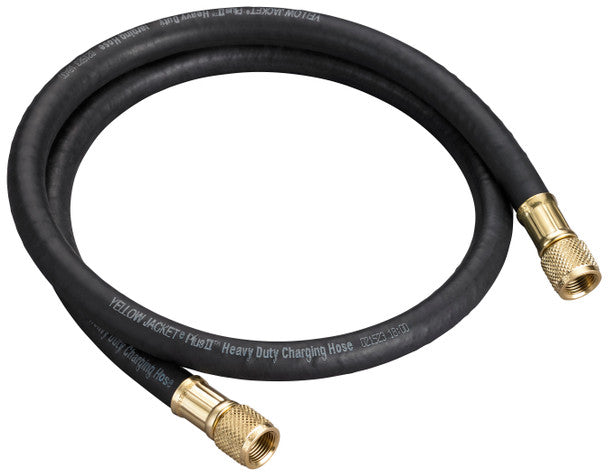

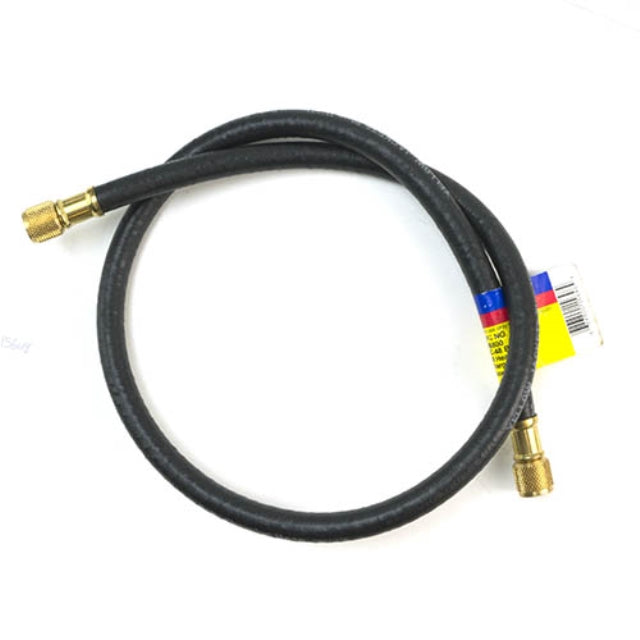

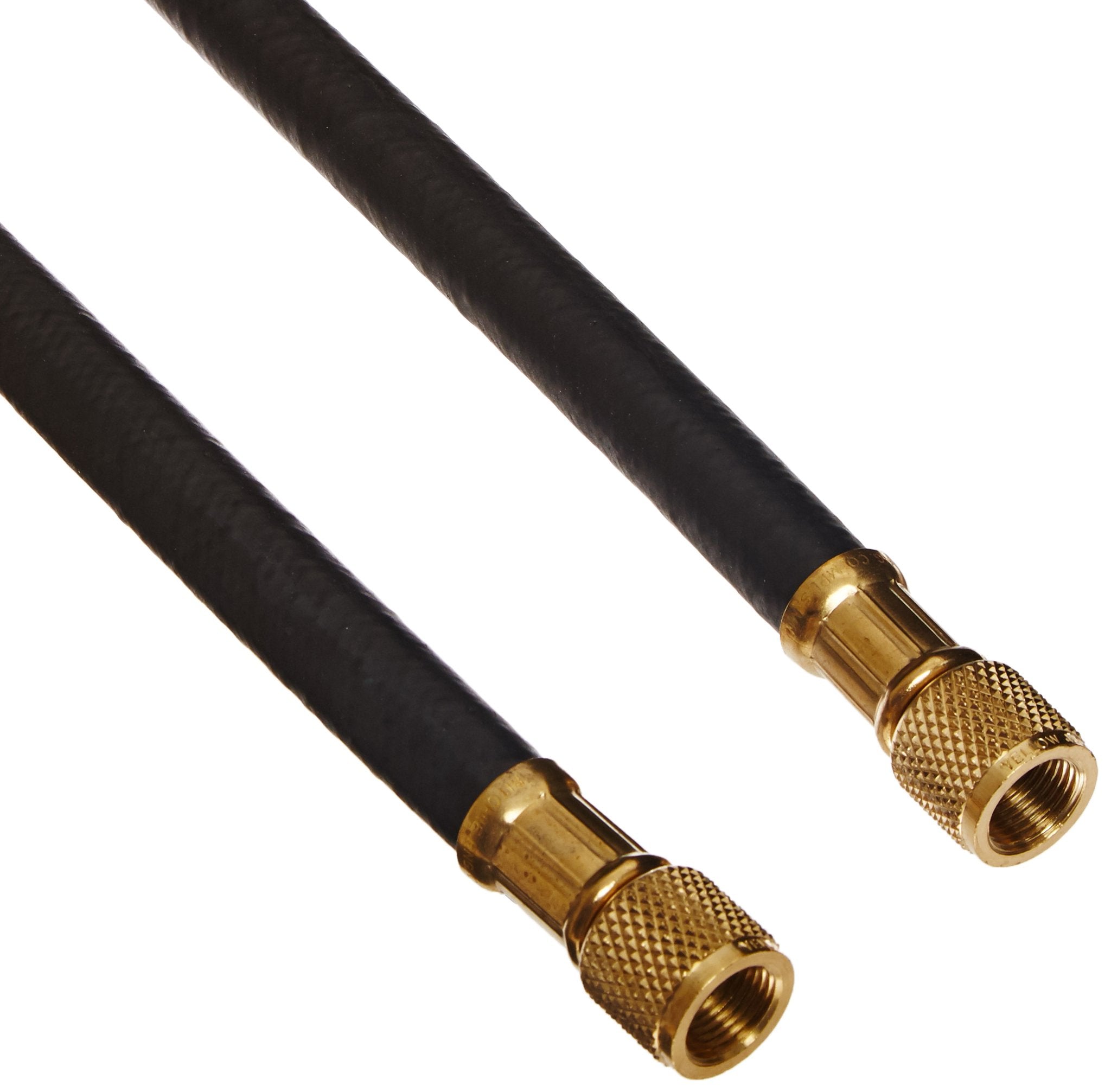

Yellow Jacket 15648 Plus II Combination Charging/Vacuum Hose 48 Inch

Product Description

The YELLOW JACKET 15648 PLUS II combination charging/vacuum hose features a nylon core and rubber cover. With a minimum bend radius of 8 inches and an overall length of 48 inches, it's suitable for air conditioning and refrigeration systems. The hose has 3/8 Inch straight flare end connections and a pressure rating of 600 PSI.

• Heavy Duty construction
• Pulls a vacuum much faster than the 1/4 Inch hose
• Made in USA

Product Highlights

This heavy-duty charging/vacuum hose is designed for efficient performance in demanding air conditioning and refrigeration applications.

Product Information

Standard Information

• Brand: YELLOW JACKET
• Manufacturer Part Number: 15648
• Country of Origin: USA

Technical Specifications

• Application: Air Conditioning and Refrigeration System
• Burst Pressure Rating: 3000 PSI
• Core Material: Nylon
• Cover Material: Rubber
• End Connection: 3/8 Inch Straight Flare x 3/8 Inch Straight Flare
• Minimum Bend Radius: 8 Inch
• Overall Length: 48 Inch
• Pressure Rating: 600 PSI
• Temperature Rating: -22 to 176 Deg F
• Type: Heavy Duty
• Nominal Size: 3/8 Inch
• Operating temperature: -22 to 176 Deg F
• Minimum burst: 3000 psi (207 bar)
• Maximum working pressure: 600 psi (41 bar)
• Connection: 3/8" Straight x 3/8" Straight
• Length: 48"
• Item Length: 48 in
• Fitting Size: 3/8"
• Hose Length: 48"
• Working Pressure: 600 PSI (41 bar)
• Min. Bend Radius: 8"
• Hose End: Standard 3/8"
• Nominal Hose Diameter: 3/8"
• Nominal Hose Length: 4'
