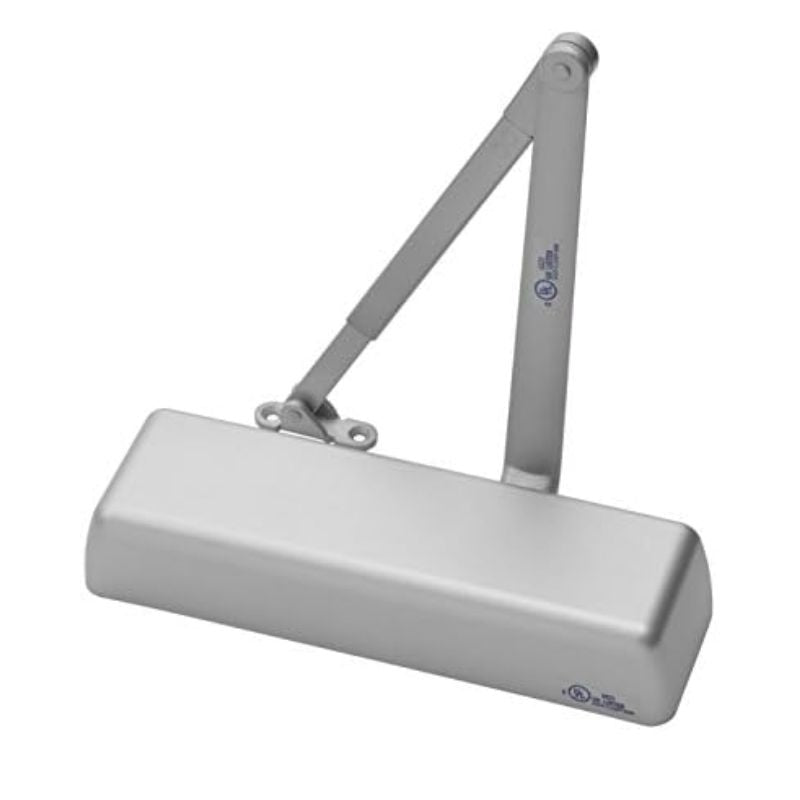

Yale 2701-689 Accentra 2701 Door Closer (Tri-Pack)

Product Description

Yale 2701-689 is an Accentra 2700 series surface door closer providing rack-and-pinion operation with adjustable spring sizes 1–6. It is tri-packed for regular, parallel, or top-jamb mounting and offers adjustable backcheck, closing speed, and latch speed. The non-handed aluminum body includes a full plastic cover and sleeve nuts furnished standard; optional hold-open and heavy-duty arms and additional fasteners are available for commercial door installations.

• Rack-and-pinion operation with adjustable spring sizes 1–6 for a range of door weights

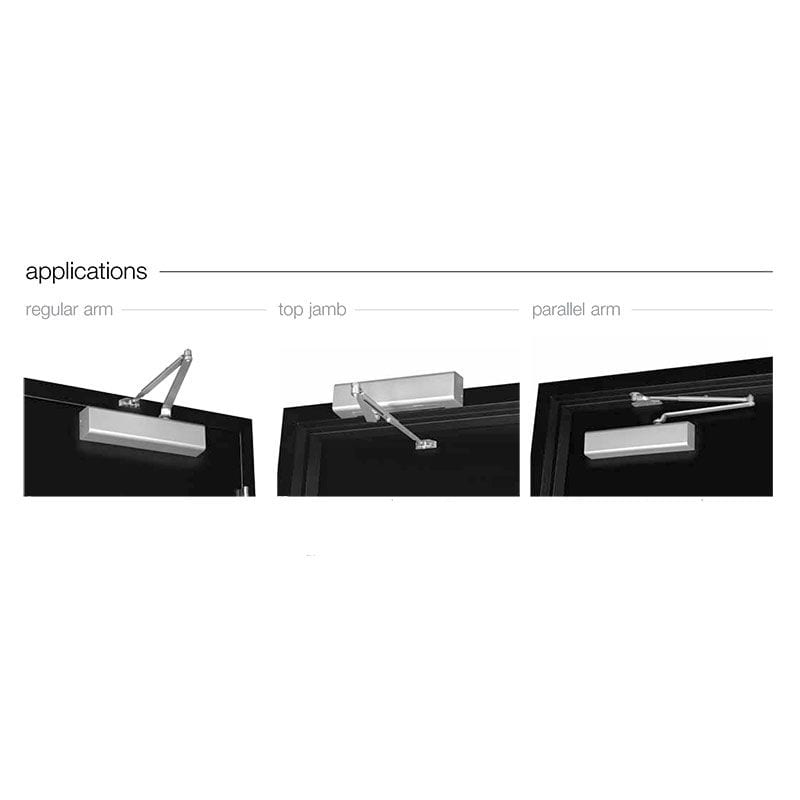

• Tri-packed for regular (pull), parallel arm (push), or top-jamb (push) mounting; non-handed design
• Adjustable backcheck, closing speed, and latch speed; sleeve nuts furnished standard

Product Highlights

Tri-packed surface closer; adjustable spring sizes 1–6; rack-and-pinion operation; ANSI/BHMA A156.4 Grade 1 and UL10c listed

Product Information

Standard Information

• Brand: YALE
• Manufacturer Part Number: 2701-689

Technical Specifications

• Brand: Yale (Accentra)
• Manufacturer Part Number: 2701-689
• Series: 2700 Series
• Product Type: Surface door closer
• Operation: Rack and pinion
• Adjustments: Backcheck; closing speed; latch speed
• Spring Sizes: Adjustable 1-6
• Handing: Non-handed
• Body Material: Aluminum
• Cover: Full plastic cover
• Mounting Options: Tri-packed: regular (pull), parallel arm (push), top jamb (push)
• Standard Hardware: Sleeve nuts furnished
• Optional Hardware: Hold-open and heavy-duty arms; thrubolts and grommet nuts
• Certifications: ANSI/BHMA A156.4 Grade 1; UL and cUL listed (includes UL10c)
• ADA Compliance: Meets ADA A117.1 accessibility requirements
• Usage: Commercial; medium duty
• Templating (Hole Pattern): 3/4" x 12"
• Maximum Reveal: Fits up to 3" reveal
• Body Finish: Aluminum finish; powder coat options available
