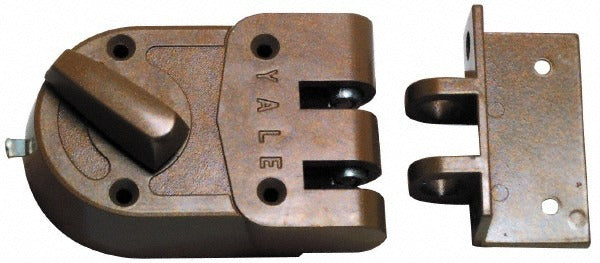

Yale 197-1/4 Jimmy Proof Rim Deadbolt Brass Lacquer

Product Description

The YALE 197-1/4 is a jimmy proof rim deadbolt designed for doors ranging from 1-1/8 to 2-1/4 inches in thickness. This rim-cylinder lock provides a high level of forced-entry resistance by interlocking the deadbolt with the strike plate, making it extremely difficult to pry apart. Finished in brass lacquer, it suits both residential and light commercial applications where a traditional appearance is required. The unit ships with 2 keys and features a 5-pin cylinder for solid key control. It is non-handed, meaning it installs on doors regardless of swing direction. Licensed locksmiths and security contractors are the typical installers.

This deadbolt is well suited for apartment entry doors, tenant unit doors, and secondary exit doors where rim-mount hardware is preferred or required. The jimmy proof design makes it a common choice in multi-family residential buildings and urban settings where door jamb reinforcement is limited. The 2.375-inch backset and non-handed design allow for straightforward installation across a range of door configurations without requiring separate left-hand or right-hand variants.

Key Features

• Jimmy proof rim deadbolt construction resists prying and forced entry
• Fits door thickness from 1-1/8 to 2-1/4 inches
• Non-handed design installs on doors of any swing direction
• 5-pin rim cylinder for improved key control
• Includes 2 keys at time of installation
• Brass lacquer finish for a clean, traditional appearance

Compatibility

Designed as an OEM-style rim deadbolt replacement or new installation for doors with a thickness between 1-1/8 and 2-1/4 inches and a 2.375-inch backset. Key number RB8 applies for key duplication reference.

Installation Notes

Installation is typically performed by a licensed locksmith or a qualified security contractor. Before installing or replacing this lock, ensure the door is closed and all existing hardware is fully removed. Verify the door thickness and backset measurement match the specified ranges before mounting. Follow all applicable local building and fire codes when installing hardware on egress or tenant-unit doors.
