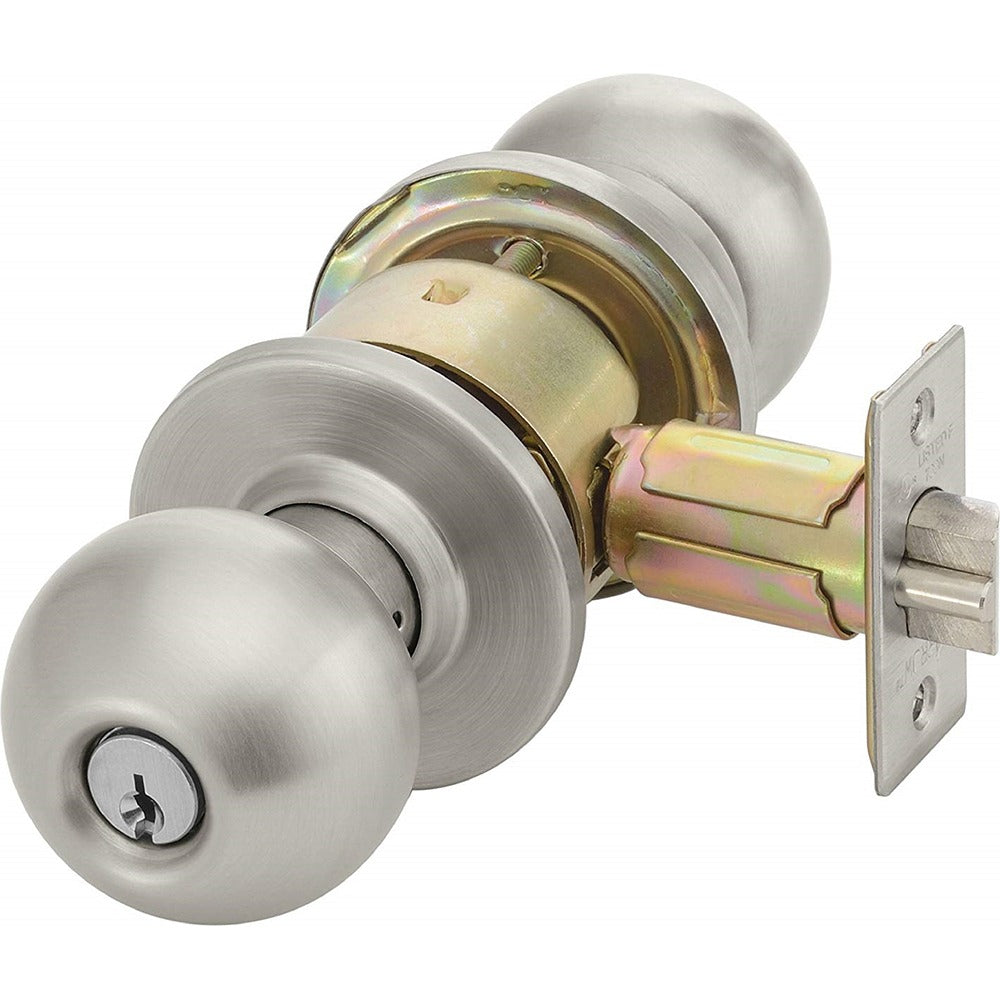

Yale 085270 Entry Lockset Satin Stainless Steel

Product Description

The YALE 085270 is a Series CA 4607 630 entry lockset designed for residential and light commercial doors. It features a 6-pin Para keyway cylinder for reliable keyed entry and a 1/2-inch stainless steel latchbolt throw. The 2-3/4-inch backset fits standard door preparations, and the universal front plate accommodates both flat and beveled door edges. Cast zinc knob construction and a satin stainless steel (Finish Code 630) surface deliver durability in high-contact environments. Installed by locksmiths, general contractors, and facilities maintenance personnel, this lockset suits entry and general home or office door applications.

The YALE 085270 is rated for use with 1-3/4-inch thick doors and carries a fire rating, making it appropriate for fire-rated door assemblies in both residential and commercial settings. The entry lock function supports standard keyed-entry operation. The non-handed design simplifies inventory and installation. A 1-1/4-inch curved lip strike for 1-3/4-inch doors is included, covering the standard rough opening without additional hardware sourcing.

Key Features

• 6-pin Para keyway cylinder for keyed entry security
• 2-3/4-inch backset fits standard door bore preparations
• 1/2-inch stainless steel latchbolt throw
• Universal front plate fits both flat and beveled door edges
• Non-handed design installs on left- or right-hand doors without modification
• Fire-rated for use in fire-rated door assemblies
• Includes 1-1/4-inch curved lip strike for 1-3/4-inch doors

Compatibility

Designed for use with 1-3/4-inch thick entrance and general home or office doors. Fire-rated designation supports installation on compliant fire-rated door assemblies where an entry lock function is required.

Installation Notes

Installation is performed by a qualified locksmith or licensed contractor in accordance with applicable building and fire codes. Confirm door thickness and bore dimensions match the 1-3/4-inch door specification and 2-3/4-inch backset before installation. Verify fire-door assembly compliance with local fire code requirements when installing on rated assemblies. Do not force the latchbolt during installation; confirm proper strike alignment before completing the door hardware cycle test.
