Xtrweld TWHMAG40 Magnetic Welding Position Holder

Product Description

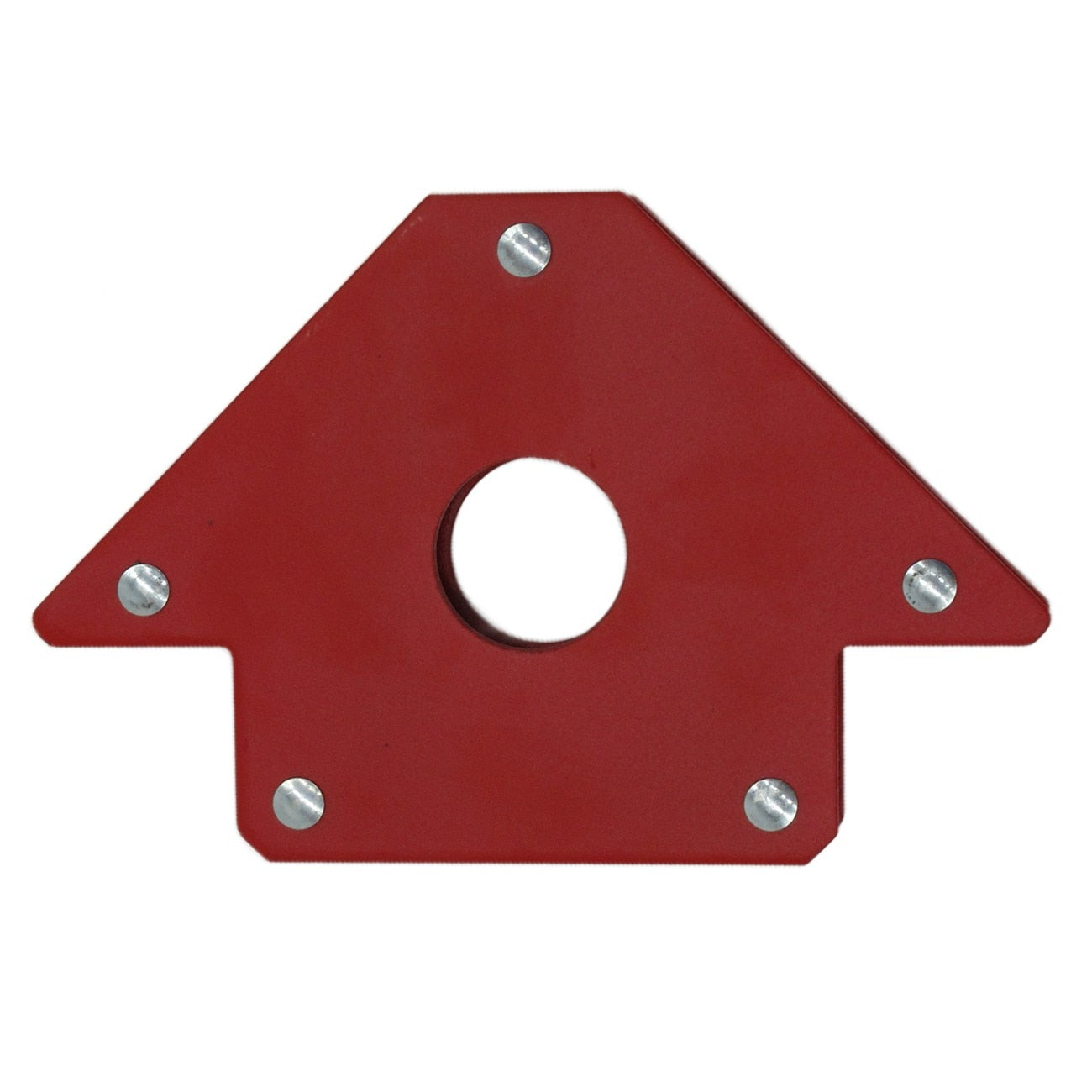

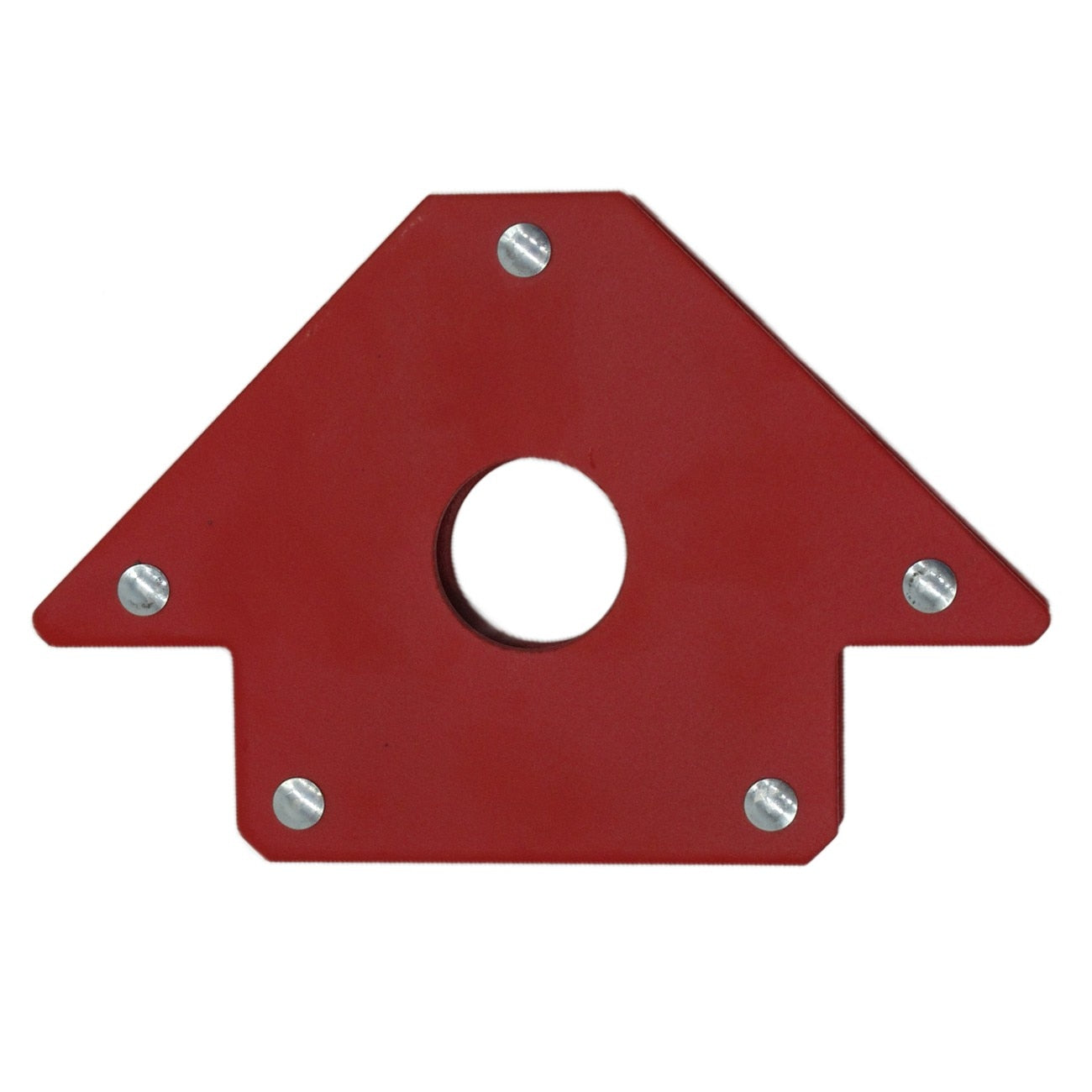

The XTRWELD TWHMAG40 is a 4-inch arrow-shaped magnetic welding position holder designed to secure steel workpieces at fixed angles during fabrication, assembly, and installation tasks. Rated to hold up to 80 pounds, it supports three preset positions: 45, 90, and 135 degrees. High-gloss enamel end plates add durability and protect the magnet body from shop wear. The compact form factor keeps it maneuverable in tight weld setups. Welders, pipefitters, and ironworkers reach for this type of tool when hands-free positioning is needed to maintain a consistent joint angle before tacking or full welding.

The TWHMAG40 is suited for light industrial and trade applications including welding, soldering, metal assembly, and pipe installation. Its 4-inch size works well with smaller structural members, tube stock, angle iron, and pipe sections. The three fixed angle positions cover the most common joint geometries encountered in field and shop work. The unit ships individually and is a standard consumable-grade positioning aid kept in most welding and pipefitting tool kits.

Key Features

• Holds steel workpieces at 45, 90, and 135 degree angles for hands-free positioning
• 80-pound holding capacity for light structural and pipe fabrication tasks
• Arrow-shaped body provides three distinct positioning surfaces in a single tool
• High-gloss enamel end plates resist chipping and wear in shop environments
• Compact 4-inch design fits tight clearances on small weld assemblies
• Multipurpose use: welding, soldering, metal assembly, and pipe installation

Compatibility

Designed for general-purpose use with ferrous steel workpieces in welding, soldering, assembly, and pipe installation applications where fixed-angle magnetic positioning is required.

Installation Notes

Position the magnet on clean, dry, scale-free steel surfaces for best holding force. Remove the magnet before striking an arc directly against it, as weld spatter and current can damage the magnet and reduce holding capacity over time. No tools are required to place or reposition the holder. Inspect the magnet body and enamel end plates periodically for cracks or heat damage that could reduce performance.

Technical Specifications

• Holding Capacity: 80 pounds
• Size: 4 inches
• Angle Positions: 45, 90, and 135 degrees
• End Plate Finish: High-gloss enamel
• Weight: 1.408 pounds
• Unit of Measure: Each

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: TWHMAG40
