Xtrweld LENS45P-SH11 Shade 11 Welding Filter Plate

Product Description

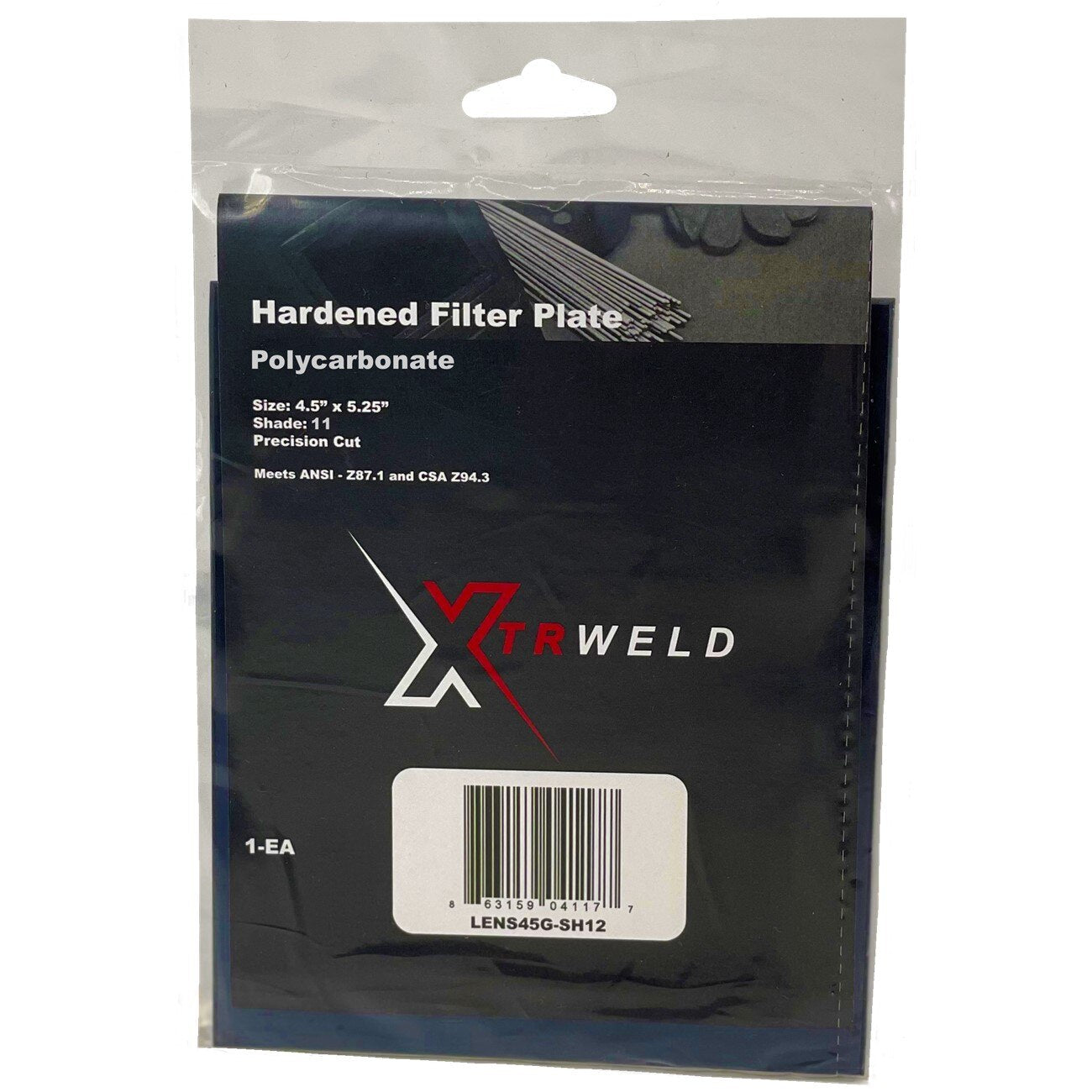

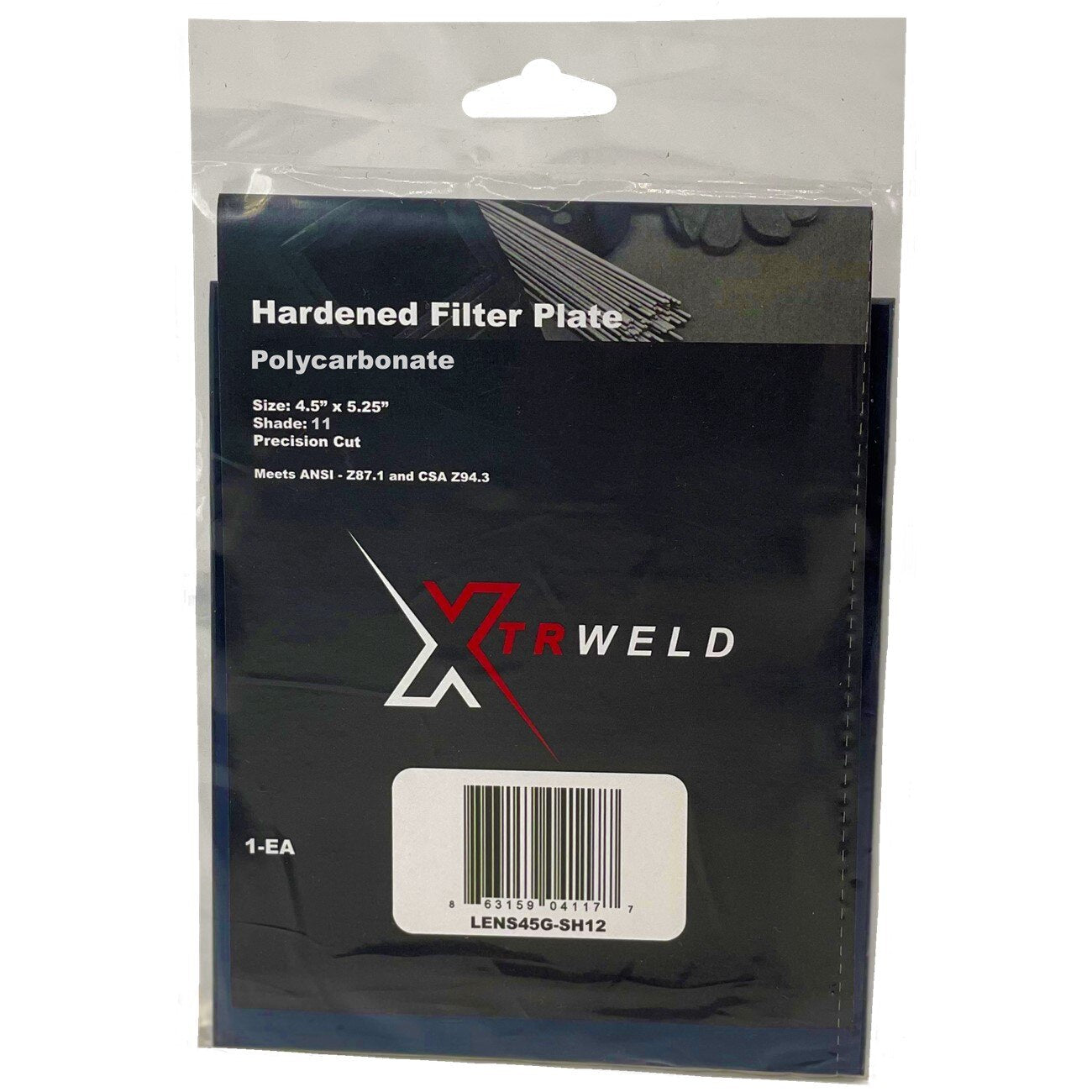

The XTRWELD LENS45P-SH11 is a Shade 11 polycarbonate welding filter plate designed for use in passive welding helmets and goggle frames that accept a 4.5 x 5.25 inch lens insert. Polycarbonate construction provides optical clarity and impact resistance suited to arc welding environments. The Shade 11 filter density is appropriate for shielded metal arc welding (SMAW) and similar processes operating at mid-to-high amperage ranges. Each unit is packaged individually in a hangable bag for point-of-use or counter display. This filter plate meets ANSI Z87.1 and CSA Z94.3 optical and impact protection standards.

This filter plate is intended for professional welders, fabricators, and welding supply technicians who need a compliant replacement or spare lens in a standard 4.5 x 5.25 inch format. It suits typical passive-lens helmets and fixed-shade goggles used in shop and field welding applications. The Shade 11 density is commonly specified for stick welding applications in the 160-250 amp range. Individual hangable bag packaging makes it practical for tool cribs, supply counters, and jobsite distribution.

Key Features

• Shade 11 filter density for mid-to-high amperage arc welding processes
• Polycarbonate lens material for impact resistance and optical clarity
• 4.5 x 5.25 inch format fits standard passive helmet and goggle frames
• Meets ANSI Z87.1 and CSA Z94.3 optical and protective standards
• Individually packaged in hangable bag for retail and supply-counter display

Compatibility

Designed as a replacement filter plate for passive welding helmets and goggle frames accepting a 4.5 x 5.25 inch lens insert.

Installation Notes

Filter plate replacement is typically performed by the welder or equipment technician without specialized tools. Remove the existing lens from the helmet or goggle frame before installing the new filter plate, following the frame manufacturer's lens-retention procedure. Inspect the retaining frame or gasket for damage before reinstalling. Verify that the installed lens meets the shade and impact requirements specified by your employer's safety program and applicable ANSI Z87.1 standards before returning the equipment to service.

Technical Specifications

• Lens Shade: 11
• Material: Polycarbonate
• Lens Dimensions: 4.5 x 5.25 inches
• Package Length: 4.5 inches
• Package Width: 2.25 inches
• Package Height: 0.25 inches
• Packaging: Hangable Bag, 1 per bag
• UPC: 840349232584
• Certifications: ANSI Z87.1, CSA Z94.3

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: LENS45P-SH11
