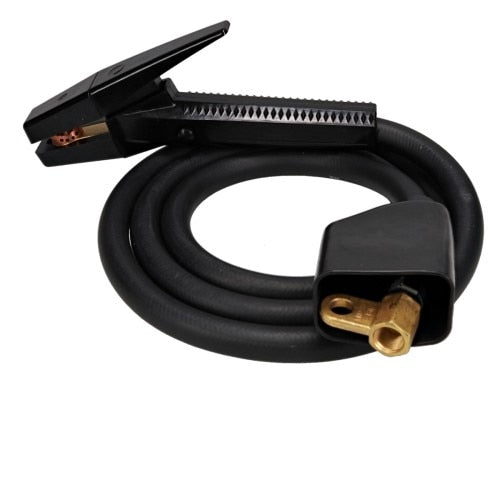

Xtrweld AATCH1000-TW7 Arc Gouging Torch 1000A

Product Description

The XTRWELD AATCH1000-TW7 is a heavy-duty arc gouging torch rated at 1000 amps, designed for high-amperage carbon arc gouging applications in metal fabrication, weld removal, and structural repair work. Built to Arcair-style specifications, it accepts round carbon electrodes from 5/32 inches up to 1/2 inches in diameter, covering a wide range of material thicknesses and gouging profiles. The torch ships with a 7-foot cable, giving the operator working distance from the power source. Construction is heavy-duty throughout, built for sustained use in demanding shop and field environments. Welding professionals and ironworkers are the primary installers and operators of this equipment.

The AATCH1000-TW7 is suited for industrial and heavy fabrication settings where high-amperage carbon arc gouging is required. Typical applications include weld joint preparation, defect removal, back-gouging, and metal cutting on carbon steel, stainless, cast iron, and non-ferrous alloys. The 1000-amp rating makes it appropriate for heavy plate work and structural steel applications. The Arcair-style form factor allows it to work as an OEM-quality replacement or spare torch in existing gouging setups.

Key Features

• 1000-amp rated for high-amperage carbon arc gouging
• Accepts round carbons from 5/32 inches to 1/2 inches diameter
• 7-foot cable for operator working distance from the power source
• Heavy-duty construction for durability and extended service life
• Arcair-style compatibility for use as an OEM-quality replacement torch

Compatibility

Designed as an OEM-quality Arcair-style replacement arc gouging torch compatible with Arcair gouging systems. Verify amperage rating and cable termination type match your power source before installation.

Installation Notes

Arc gouging torches are installed and operated by qualified welding professionals familiar with high-amperage DC welding equipment. Always de-energize and lock out the power source before connecting or disconnecting the torch cable. Ensure the work lead and ground connections are properly rated for the amperage in use. Follow applicable workplace safety and electrical codes when operating carbon arc gouging equipment.

Technical Specifications

• Amperage Rating: 1000 amps
• Cable Length: 7 feet
• Carbon Electrode Capacity: 5/32 inches to 1/2 inches round
• Package Length: 84.83 inches
• Weight: 5.78 pounds
• Minimum Order Quantity: 1
• UPC: 840349200323

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: AATCH1000-TW7
