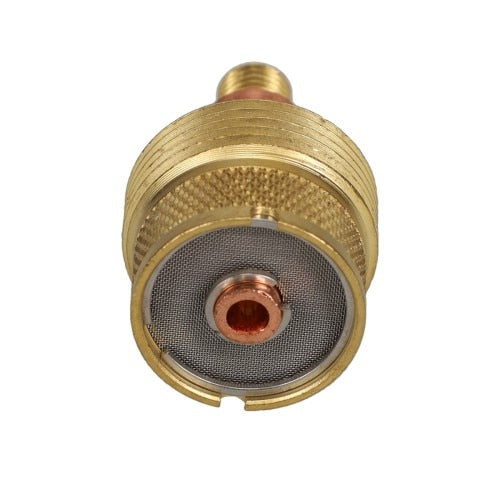

Xtrweld 995795S Stubby Gas Lens 1/8 Inch Tig Torch

Product Description

The XTRWELD 995795S is a stubby gas lens designed for TIG welding torches, specifically the 9 and 20 series. Gas lenses replace the standard collet body to produce a laminar shielding gas flow around the tungsten electrode, reducing turbulence and improving arc stability and weld quality. This lens measures 0.90 inches in width and 1.66 inches in height, making it a compact, stubby-profile component suited for tight joints and out-of-position work. The electrode diameter is marked directly on the part for fast identification during torch setup. Welders and pipe fitters working with TIG processes install this lens as a direct consumable replacement.

This stubby gas lens fits 1/8 inch electrode diameter configurations on 9 and 20 series TIG torches. The stubby form factor shortens the overall torch assembly length compared to standard-length gas lenses, offering better sightlines in confined spaces. It is appropriate for both shop and field TIG applications across HVAC, plumbing, and industrial piping work where clean, consistent shielding gas coverage is required.

Key Features

• Stubby profile shortens torch length for improved visibility and access in tight weld joints
• Designed for 1/8 inch electrode diameter on 9 and 20 series TIG torches
• Produces laminar shielding gas flow to reduce turbulence and improve arc stability
• Electrode diameter marked on part for quick identification during torch assembly
• OEM-quality construction compatible with major torch brands in the 9 and 20 series

Compatibility

Compatible with 9 and 20 series TIG torches using a 1/8 inch electrode diameter. Designed as an OEM-style replacement consumable compatible with all major brands offering 9 and 20 series torch configurations.

Installation Notes

Gas lens replacement is performed by licensed welders or qualified technicians. Before servicing the torch, disconnect the power source and ensure shielding gas flow is fully shut off at the cylinder valve. Remove the nozzle, back cap, and collet before extracting the existing gas lens body. Hand-tighten components during reassembly to avoid cross-threading or damage to the collet body seat.

Technical Specifications

• Electrode Size: 1/8 inch
• Width: 0.90 inches
• Height: 1.66 inches
• Weight: 0.21 pounds
• Compatible Torch Series: 9, 20
• Profile: Stubby

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 995795S
