Xtrweld 45V64S Gas Lens Stubby Large 3/32 Inch

Product Description

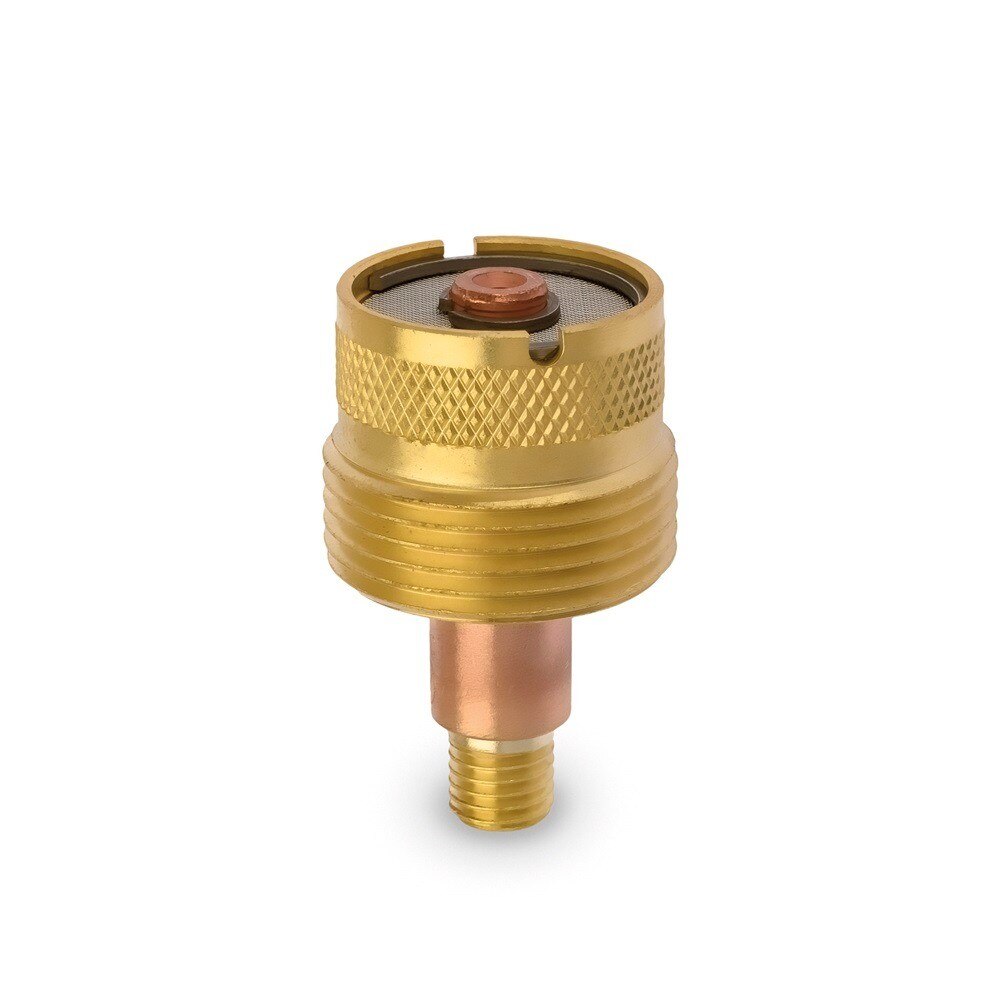

The XTRWELD 45V64S is a stubby large-style gas lens designed for TIG welding applications. Gas lenses replace standard collet bodies to provide a more laminar shielding gas flow around the tungsten electrode, reducing turbulence and improving arc stability and weld quality. This unit is sized for a 3/32 inch electrode diameter, which is marked directly on the product for quick identification in the field. At 1.66 inches in height, the stubby form factor keeps the torch compact and maneuverable in tight weld joints. It weighs 0.208 pounds and is built to OEM quality standards for reliable performance.

The 45V64S is designed for use with 9 and 20 Series TIG torches. These torch series are common in both shop and field TIG welding setups across light fabrication, pipe work, and precision weld applications. The stubby large gas lens configuration suits technicians who prefer a shorter torch assembly without sacrificing shielding gas coverage. This consumable is suited for licensed welding professionals and experienced tradespeople performing TIG welding on ferrous and non-ferrous base metals.

Key Features

• Sized for 3/32 inch tungsten electrode diameter, marked on product for easy identification
• Stubby large style at 1.66 inches height for compact torch assembly
• Promotes laminar shielding gas flow for improved arc stability
• Compatible with 9 and 20 Series TIG torches
• OEM quality construction for consistent fit and performance

Compatibility

Designed for use with 9 and 20 Series TIG torches. Fits 3/32 inch electrode diameter applications. Compatible with all major brands of torches in those series according to the manufacturer.

Installation Notes

Gas lens installation is typically performed by the welding technician during torch setup or consumable changeover. Always disconnect the torch from the power source and shut off the shielding gas supply before replacing consumables. Thread the gas lens into the torch body by hand first to avoid cross-threading, then snug with the appropriate wrench. Verify shielding gas flow rate after installation before striking an arc.

Technical Specifications

• Electrode Size: 3/32 inches
• Style: Stubby Large
• Height: 1.66 inches
• Weight: 0.208 pounds
• Compatible Torch Series: 9 Series, 20 Series
• UPC: 840349230177

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 45V64S
