Xtrweld 45V41 Tig Gas Lens 0.020 Inch Small Style

Product Description

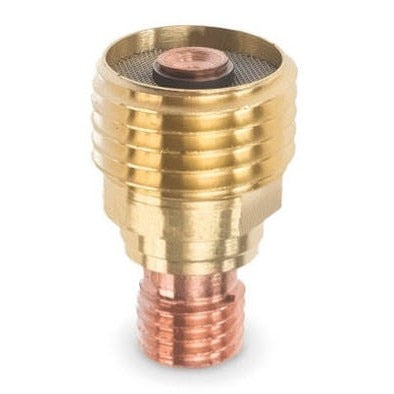

The XTRWELD 45V41 is a standard small-style TIG gas lens designed for use with 9 and 20 series TIG torches. The gas lens replaces the standard collet body in a TIG torch assembly and distributes shielding gas evenly across the tungsten electrode, producing a laminar gas flow that improves arc stability and weld quality. Built to OEM quality standards, the 45V41 is sized for a 0.020-inch electrode diameter and measures 0.94 inches in height. The electrode diameter is marked directly on the part for quick identification during setup. Licensed welding technicians and fabricators install this component as part of routine consumable replacement.

The 45V41 is suited for precision TIG welding applications where consistent shielding gas coverage is critical. The small-style form factor fits compact torch heads used in tight-access weld zones. Compatible with 9 and 20 series torch configurations, this gas lens is appropriate for both shop and field welding environments where 0.020-inch tungsten electrodes are specified. It is sold as a single unit and is a direct-fit consumable for the listed torch series.

Key Features

• Standard small-style gas lens for 9 and 20 series TIG torches
• Sized for 0.020-inch electrode diameter
• Electrode diameter marked on part for fast identification
• Laminar gas flow design improves shielding gas coverage and arc stability
• OEM quality construction compatible with all major brands in the listed torch series

Compatibility

Designed for use with 9 and 20 series TIG torches and 0.020-inch tungsten electrodes. Compatible with all major brands of 9 and 20 series torch bodies per manufacturer specifications.

Installation Notes

TIG gas lens installation is performed by a qualified welder or welding technician. Shut off shielding gas supply and ensure the torch is disconnected from the power source before replacing consumables. The gas lens threads into the torch body in place of the standard collet body — do not overtighten, as this can damage the lens body or torch threads. Verify correct electrode diameter compatibility before assembly.

Technical Specifications

• Electrode Diameter: 0.020 inches
• Height: 0.94 inches
• Style: Standard Small
• Compatible Torch Series: 9, 20 Series
• Weight: 0.1 pounds
• Sold As: Single unit

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 45V41
