Xtrweld 13N11 Alumina Standard Tig Cup Size 7 10 Pack

Product Description

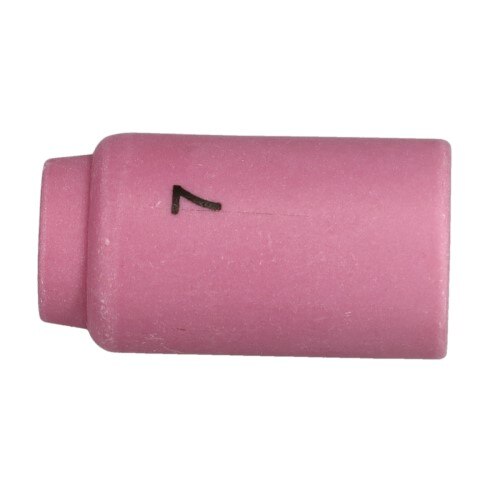

The XTRWELD 13N11 is a size 7 alumina standard cup designed for TIG welding applications. It fits 9 and 20 series TIG torches and provides a stable shielding gas envelope around the tungsten and weld pool. The cup is machined from alumina ceramic, which withstands the heat generated during the welding arc while resisting cracking and contamination. Each pack contains 10 cups, making it a practical stock item for shops and field welders who go through consumables regularly. Licensed welders and TIG technicians install these as routine consumable replacements during torch maintenance.

This cup is suited for light to medium-duty TIG welding on steel, stainless steel, and aluminum in both shop and field environments. The size 7 designation refers to the cup orifice, which measures 7/16 inches in diameter and is matched to standard tungsten and collet body sizing for 9 and 20 series torches. It is a direct replacement consumable used in production welding, fabrication shops, and maintenance and repair operations.

Key Features

• Size 7 alumina ceramic cup with 7/16 inch orifice diameter
• Compatible with 9 series and 20 series TIG torches
• Alumina ceramic construction resists heat and arc contamination
• Standard cup profile for conventional shielding gas coverage
• Sold in a 10-pack for efficient consumable stocking

Compatibility

Designed for use with 9 series and 20 series TIG torches as a standard consumable cup replacement.

Installation Notes

TIG welding consumables are installed and replaced by qualified welders or welding technicians. Power down and de-energize the welding machine before replacing the cup. Hand-tighten the cup onto the torch body until snug — do not over-torque, as alumina ceramic can crack under excessive force. Inspect the collet body and gas lens for contamination or wear before installing a new cup.

Technical Specifications

• Cup Size: 7
• Orifice Diameter: 7/16 inches
• Material: Alumina ceramic
• Compatible Torch Series: 9, 20
• Pack Quantity: 10
• Weight: 0.22 pounds

Standard Information

• Brand: XTRWELD
• Manufacturer Part Number: 13N11
