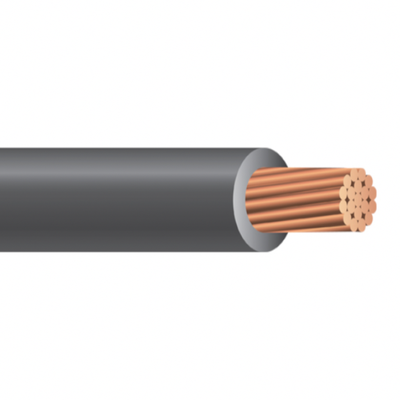

XHHWCU XHHW600MCMSTRYELMR Single Conductor Unarmored Power Cable

Product Description

The XHHWCU XHHW600MCMSTRYELMR is a single conductor unarmored power cable designed for a variety of applications including power, control, signal, and instrumentation, especially in marine and offshore environments.

• Conductor is soft annealed tinned copper
• Insulation type is Bostrig Type P chemically cross-linked polyolefin (XLPO)
• Flame-retardant XLPO sheath offers resistance to oil, abrasion, moisture, sunlight, crush, and impact

Product Highlights

This cable provides effective performance in challenging conditions. Its design supports high ampacity levels, making it suitable for demanding electrical tasks.

Product Information

Standard Information

• Country of Origin: -
• UPC: -

Technical Specifications

• Conductor Size (AWG/MCM): 1111
• Conductor Size (mm²): 563.0
• Sheath Thickness (in): 0.110
• Sheath Thickness (mm): 2.8
• Cable Diameter (in): 1.930
• Cable Diameter (mm): 49.0
• Impedance (Phase-Neutral) (Ω/kft): 0.04
• Impedance (Phase-Neutral) (Ω/km): 0.1
• Inductance (mH/kft): 0.10
• Inductance (mH/km): 0.3
• Capacitance (pF/ft): 257
• Capacitance (pF/m): 843
• Ampacity (95°C): 942
• Ampacity (100°C): 1,025
• Ampacity (110°C): 1,098
• Ampacity (125°C): 1,374
• Cable Weight (lbs/mft): 4,495
• Cable Weight (kg/km): 6,690
• Type Designation: SPM2KV(HD)-1111
• Prysmian and Draka Cable Number: 026023M
