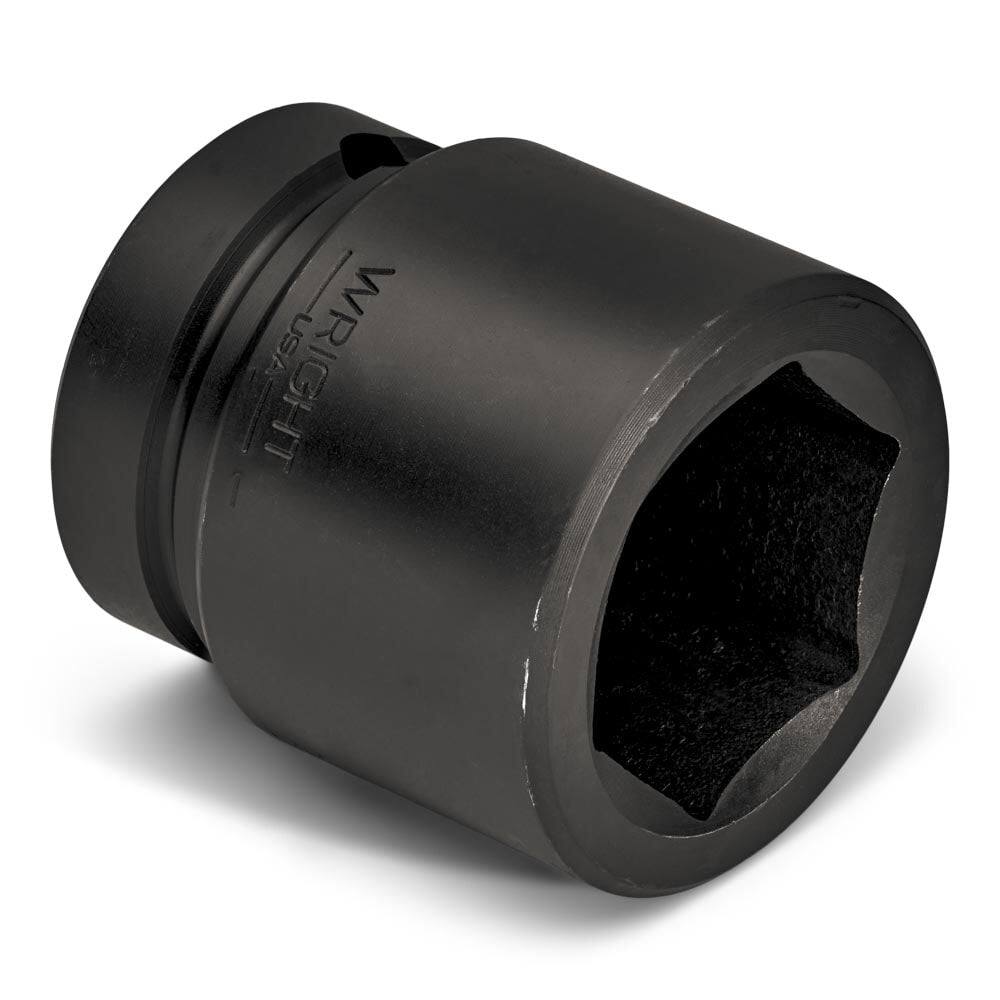

Wright Tool 6860 6 point standard impact socket 1 7/8 in 3/4 in drive

Product Description

The WRIGHT TOOL 6860 is a 6 Point Standard Impact Socket designed for robust performance. It features a patented Wright Drive system that distributes contact over a larger surface area, enhancing gripping power and strength. This inch-sized socket, with a 1 7/8 inch opening and 3/4 inch drive, is forged and machined for optimal fit and strength. It is precision heat-treated and tempered for hardness, ductility, and durability, meeting ASME B107 hand tool standards.

• Patented Wright Drive design distributes contact over a larger surface area for enhanced gripping power.
• Forged and machined construction ensures optimal fit and unyielding strength.
• Precision heat-treated and tempered for optimal hardness, ductility, and durability.

Product Highlights

Durable 6-point impact socket with Wright Drive technology for superior grip and strength, manufactured to ASME B107 standards.

Product Information

Standard Information

• Brand: WRIGHT TOOL
• Manufacturer Part Number: 6860
• Country of Origin: USA

Technical Specifications

• Finish: Black Oxide
• Nut Depth: 1 31/64 in
• Measuring System: Inch
• Length Type: Standard
• Socket Size: 1 7/8 in
• Socket Type: Impact
• Number of Points: 6
• Overall Length: 2 3/4 in
• Drive Size: 3/4 in
• Drive End Diameter: 1 29/32 in
• Nut End Outside Diameter: 2 13/16 in
• Drive Type: Square
• Head Width: 2 23/32 in (opening side); 1 29/32 in (drive side)
• Locking Type: Pin
• Material: Alloy Steel
• Standards: ASME B107.110
• Tether Ready: Not Tether Capable
• Impact Rated: Impact Rated
• Insulated: Not Insulated
• Includes Non-Marring: Non-Marring Not Included
• Includes Thin Wall: No Thin Wall
• Fastener-Holding Type: Friction
• UNSPSC: 27111704
• Equivalent Models: Allen 36144, Armstrong 21-060, Proto J07530, SK 84660, Snap-On IM602, Williams 6-660
