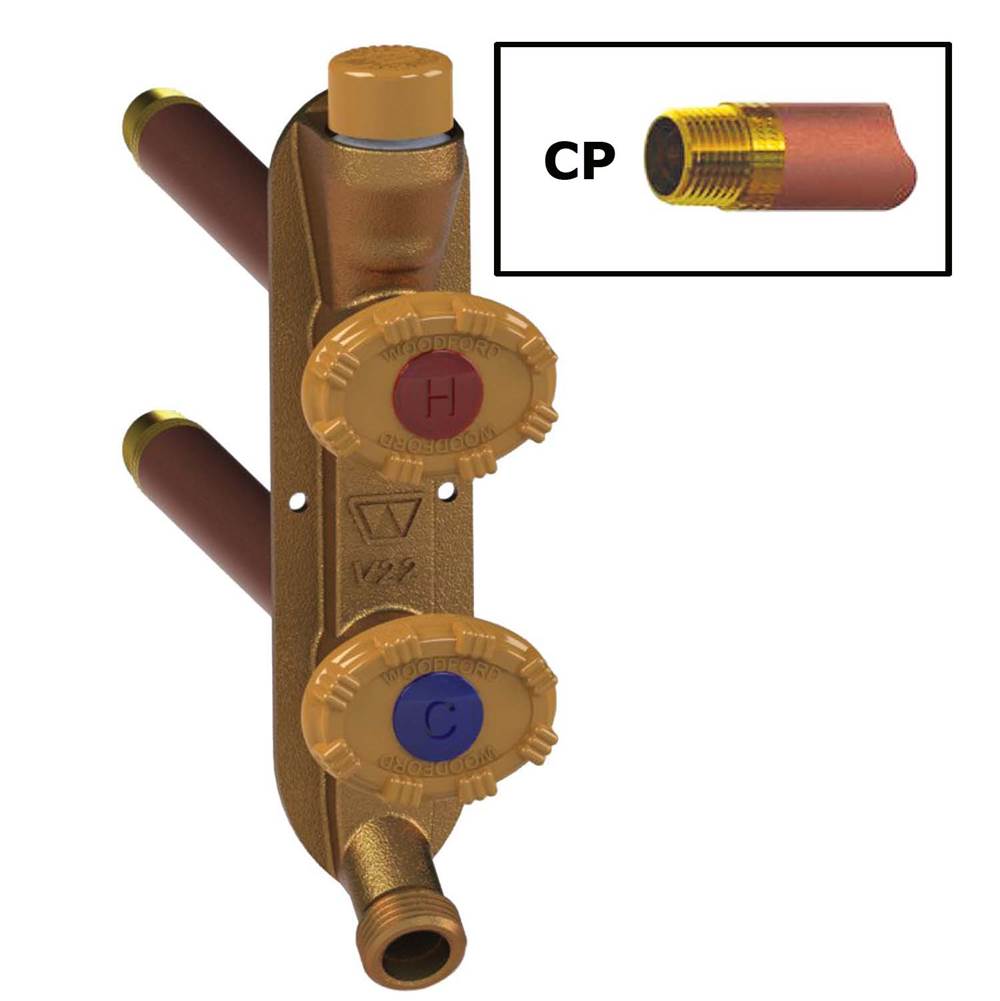

Woodford v22cp-8-mh Freezeless Wall Faucet 8 Inch

Product Description

The WOODFORD v22cp-8-mh is a freezeless hot and cold wall faucet designed for through-wall installation in applications where both hot and cold water supply connections are required. The 8-inch barrel length provides sufficient wall penetration depth to keep the valve seat and internal components in the conditioned space, reducing freeze risk in cold climates. Weighing 3.30 pounds and fitted with a metal handle, this unit is built for durability in demanding service environments. Licensed plumbers and experienced pipefitters are the typical installers for this type of wall faucet.

The v22cp-8-mh is suited for residential and light commercial exterior wall installations where a single outdoor faucet point needs access to both hot and cold water lines. Typical applications include utility wash-down stations, service areas, and exterior connections on buildings where freeze protection is a code or operational requirement. The 8-inch depth accommodates standard wood-frame or masonry wall assemblies of comparable thickness.

Key Features

• Freezeless design keeps valve seat inside the conditioned space to prevent freeze damage
• Hot and cold water capability from a single wall-mount faucet body
• 8-inch barrel depth for standard wall penetration
• Metal handle provides durable operation compared to plastic alternatives
• Through-wall installation eliminates need for separate indoor shutoff in most configurations

Compatibility

Designed as an OEM-style replacement or new-installation wall faucet for exterior plumbing applications requiring a freezeless hot and cold water outlet.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off both the hot and cold water supply lines and relieve system pressure before beginning any installation or service work. Ensure proper slope toward the exterior to allow complete drainage when the faucet is closed. Do not over-tighten the wall escutcheon or body flange against finished surfaces, as this may crack masonry or damage siding.

Technical Specifications

• Barrel Length: 8 inches
• Overall Length: 9.75 inches
• Width: 8.50 inches
• Height: 3.00 inches
• Weight: 3.30 pounds
• Handle Type: Metal
• UPC: 671090039494

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: v22cp-8-mh
