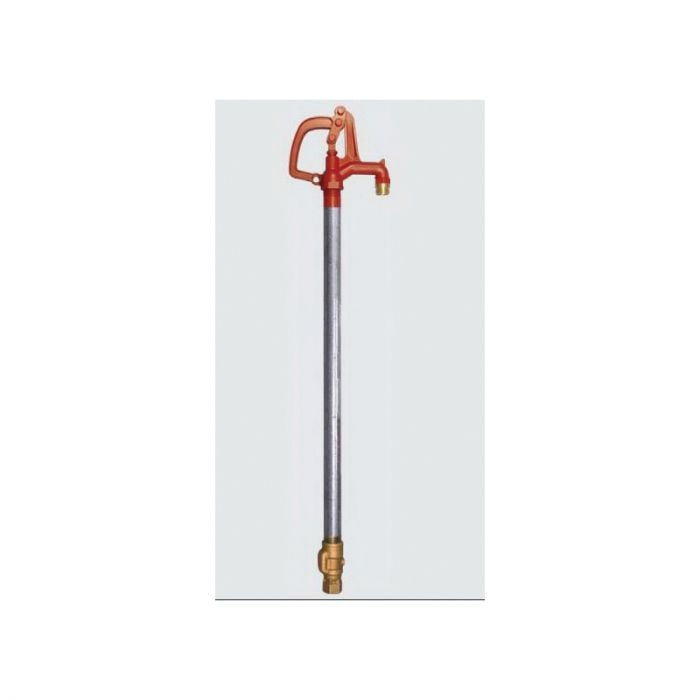

Woodford R34-3 Freezeless Yard Hydrant (3/4 in FNPT, 3 ft bury, 69 in OAL, 3/8 in rod) R343

Product Description

The Woodford R34-3 is a freezeless yard hydrant with a 3/4 in FNPT inlet, 3 ft bury depth, and 69 in overall length. It features a ductile iron head and handle, a 3/8 in steel operating rod, a 3/4 in brass hose nozzle, and a permanent brass valve body. The shut-off valve sits below the frost line to allow the standpipe to drain; maximum operating pressure is 125 psi and maximum temperature is 120 °F.

• Freezeless operation with shut-off valve below frost line and drain hole to prevent freezing when properly installed
• Ductile iron head and handle, 3/8 in steel operating rod, and permanent brass valve body with hemispherical seating surface
• 3/4 in FNPT inlet, 3/4 in brass hose nozzle, 1 in galvanized steel casing, 125 psi pressure rating, 120 °F temperature rating

Product Highlights

Freezeless yard hydrant, 3/4 in FNPT inlet, 3 ft bury, ductile iron head, brass valve, 125 psi rating

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: R34-3
• Country of Origin: Domestic (USA)
