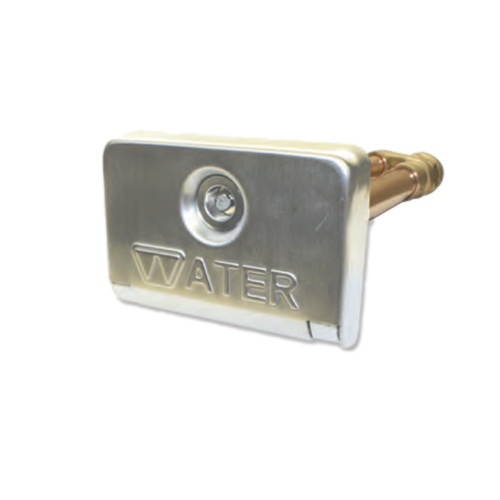

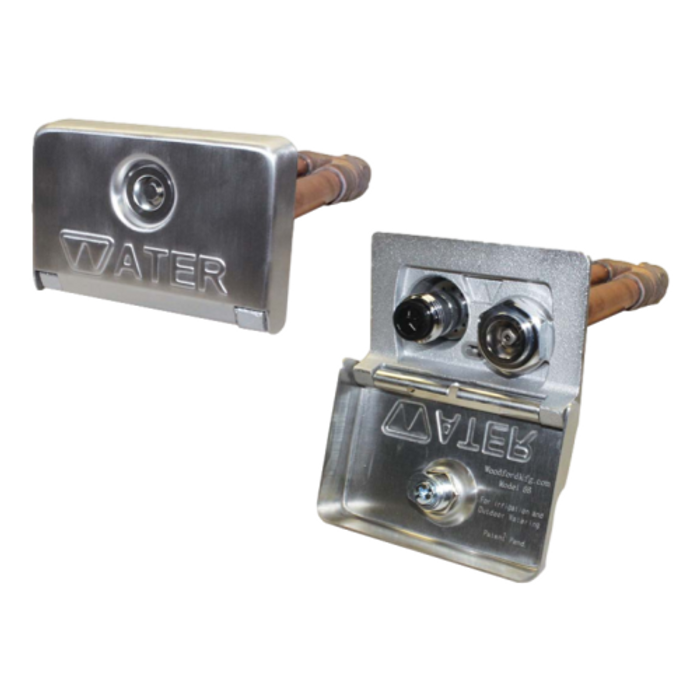

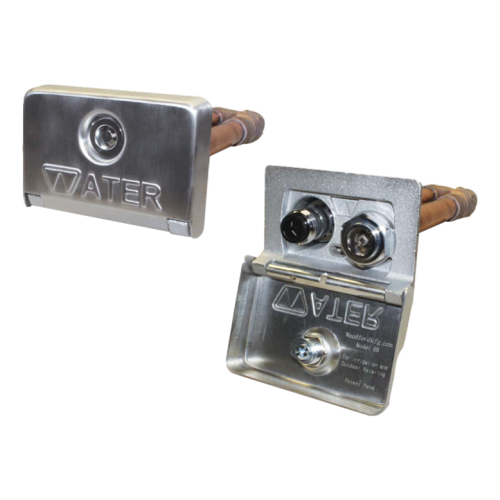

Woodford 68C-8 Undercover Freezeless Wall Hydrant

Product Description

The Woodford Model 68C-8 is a wall hydrant designed for irrigation in commercial and residential settings. It features an automatic draining system to prevent freezing. The hydrant has a locking head cover to enhance security and includes a double-check backflow preventer ensuring protection from backflow and backsiphonage.

• Features a double-check backflow preventer.
• Automatically drains to prevent freezing.
• Includes a locking head cover for security.

Product Highlights

This hydrant is ASSE 1053 listed and field testable, utilizing a solid brass operating rod and a hardened stainless steel operating stem.

Product Information

Standard Information

• Brand: Woodford
• Part Number: 68C-8

Technical Specifications

• Series: Model 68
• Nominal Size: three-fourths inch
• Inlet Style: three-fourths inch Copper Water Tube
• Wall Thickness: eight inches
• Pressure Rating: 125 psi
• Temperature Rating: 120 degrees F
• Handle Type: Long Tee Key
• End Style: Copper Water Tube
• Finish: Polished Chrome
