Wiring HBL9368 Ang Plug Nema6-50p 50A

Product Description

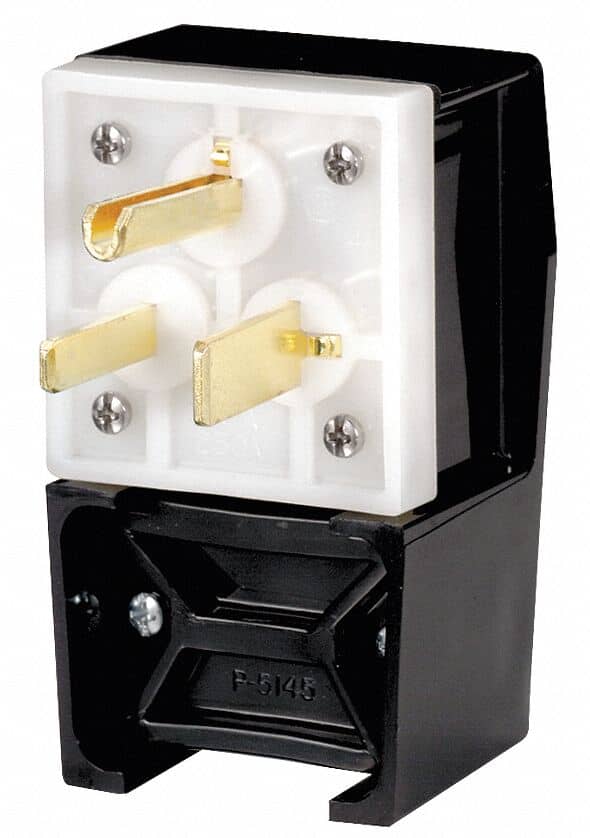

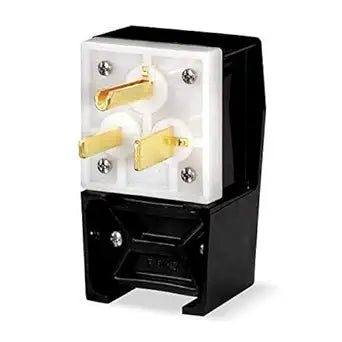

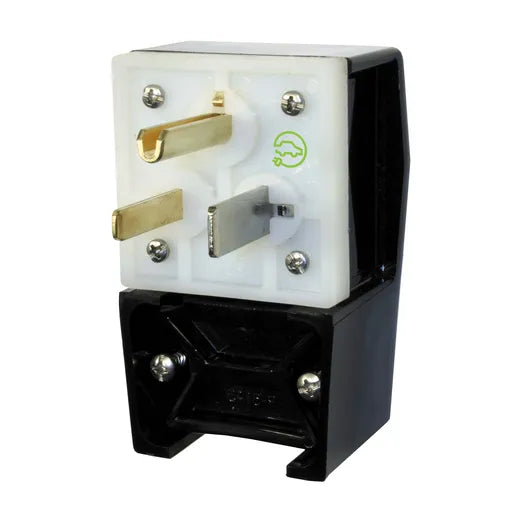

The WIRING HBL9368 is a straight blade power plug with an angled design and a 6-50P configuration. Rated at 250V and 50A, this plug features a 2-pole, 3-wire grounding setup. Constructed from durable nylon, it is suitable for EV charging applications and meets established EV charging standards.

• Angled straight blade power plug
• Rated for 250V and 50A
• Constructed from industrial-grade nylon

Product Highlights

This heavy-duty plug is designed for durability, safety, and high performance in demanding environments, ensuring reliable EV power delivery.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: HBL9368

Technical Specifications

• Type: Angled
• Configuration: 6-50P
• Voltage Rating: 250 V
• Current Rating: 50 A
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Cord Size: 0.625 to 1.187 Inch
• Approval: UL 498, FSUL, CSA C22.2
• Enclosure: IP20
• Operating Temperature: -40 to 75 Deg C
• Manufacturer: Hubbell
• Manufacturer #: HBL9368
• Catalog Number: HBL9368
• Horsepower - Maximum: 3
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Series: Extra Heavy Duty
• Style: Grounding
• UPC: 783585015286
• Amperage Rating: 50 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating Description: 250 V
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Industry Standard(s): UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
• Nema Rating: 6-50P
• Brand: Hubbell
• Voltage: 250 Volts
• Amperage: 50 Amps
• Volts AC: 250
