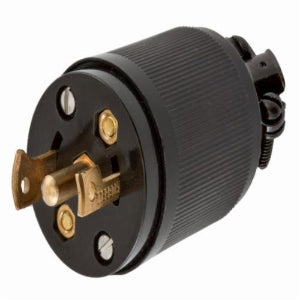

Wiring HBL7485 Locking Plug 15 Ampere

Product Description

The WIRING HBL7485 is a locking plug designed with an angled and polarized configuration. Constructed to be abuse and heat resistant, this plug features a ML-3P configuration. It is rated for 125/250 VAC at 15 Ampere and accommodates cord sizes from 0.281 to 0.421 inches. The plug is built with a nylon body and a phenolic base.

• Angled and Polarized design
• Abuse and Heat Resistant construction
• Rated to 125/250 VAC at 15 Ampere

Product Highlights

Locking plug with durable construction and polarized design, suitable for various commercial and industrial applications.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: HBL7485

Technical Specifications

• Type: Angled, Polarized
• Constructional Feature: Abuse Resistant, Heat Resistant
• Configuration: ML-3P
• Voltage Rating: 125/250 VAC
• Current Rating: 15 Ampere
• Number of Poles: 3
• Number of Wires: 3
• Ground Type: Non-Grounding
• Material: Nylon Body, Phenolic Base
• Cord Size: 0.281 to 0.421 Inch
• Approval: UL 94/498, CSA C22.2
• Enclosure: IP20
• Temperature Rating: -40 to 60 Deg C
• NEMA Rating: ML-3P
