Wiring HBL460P7W Plug-3p4w60a3ph480v

Product Description

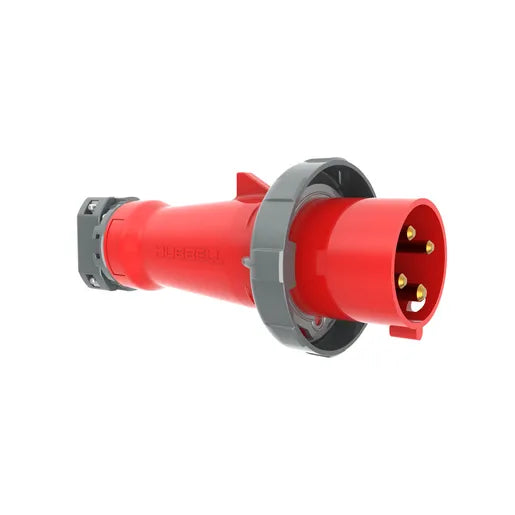

The WIRING HBL460P7W is a pin and sleeve plug designed for high ampacity connections. This polarized plug features impact-resistant and watertight construction. Rated at 480V 3-Phase and 60 Ampere, it accommodates cable outer diameters from 0.5 to 1.45 inches. Constructed from Zytel ST801 Nylon with brass pins, it meets UL 1682/1686C2 and CSA C22.2 standards and is IP67 rated.

• Pin and Sleeve Plug
• Polarized design
• Impact Resistant and Watertight

Product Highlights

The HBL460P7W is a robust plug suitable for demanding environments, ensuring reliable and safe electrical connections with its watertight and impact-resistant features.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: HBL460P7W

Technical Specifications

• Type: Watertight Plug
• Constructional Feature: Impact Resistant, Watertight
• Voltage Rating: 480 V 3-Phase
• Current Rating: 60 A
• Number of Poles: 3
• Number of Wires: 4
• Minimum Cable Outer Diameter: 0.5 Inch
• Maximum Cable Outer Diameter: 1.45 Inch
• Material: Zytel ST801 Nylon
• Approval: UL 1682/1686C2, CSA C22.2
• Enclosure: IP67
• Pin Material: Brass
• Temperature Rating: -40 to 75 Deg C
• Applicable Standard: IEC 60309-1/60309-2
• Application: High Ampacity Connections
• Catalog Number: HBL460P7W
• EU RoHS Indicator: Yes
• Item Type: Male Plug
• Material - Mounting Hardware: Cord Mounted
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Phase: Three Phase
• Voltage Rating Description: 3 Phase 480 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #8 AWG to #2 AWG
• Industry Standard(s): CSA Standard C22.2 No. 182.1 UL Classified to IEC60309-1 UL Listed, File E146032
• Nema Rating: Non-NEMA
• Cord Type: All Portable
