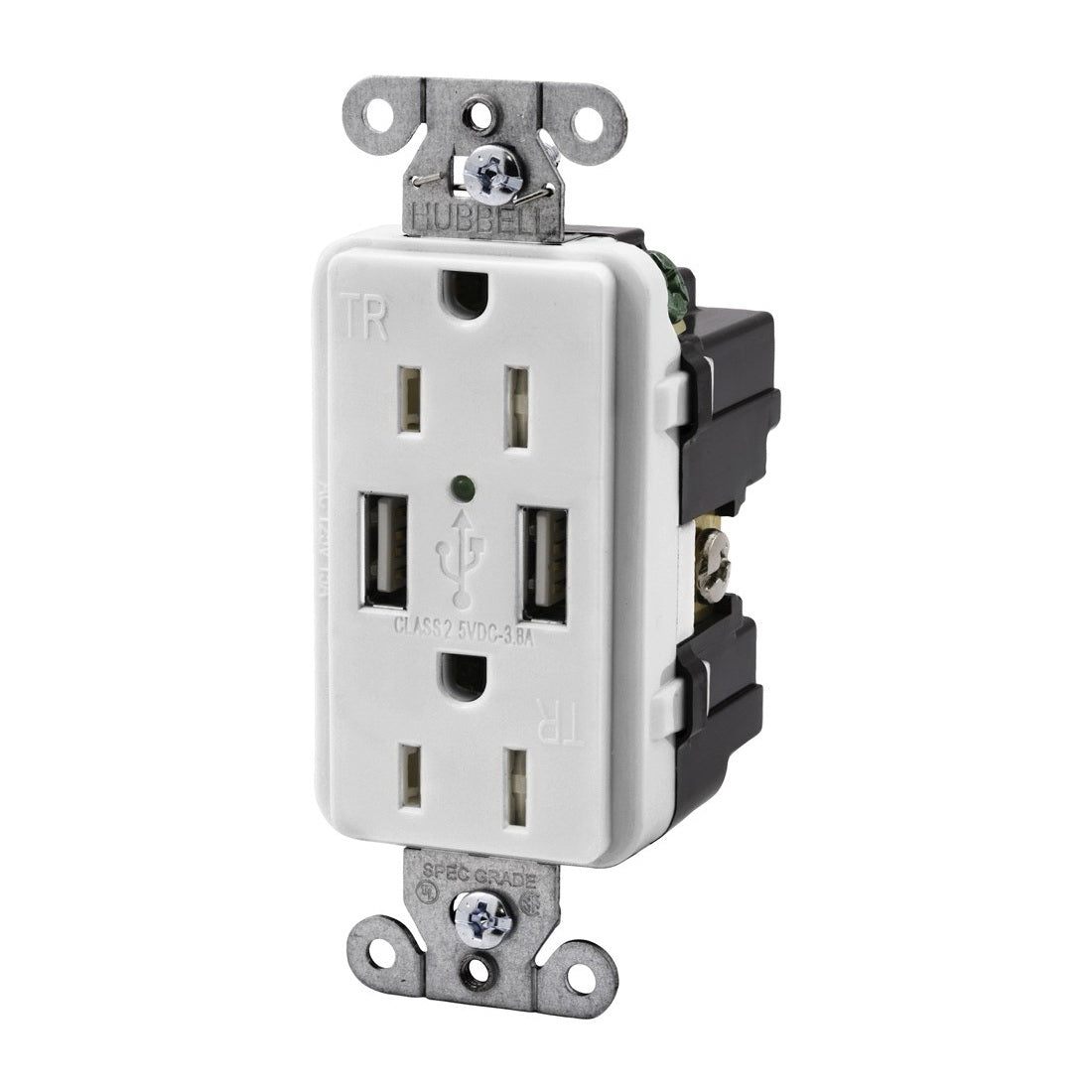

Wiring Device-Kellems USB15X2W Receptacle and USB Charger

Product Description

The Hubbell USB15X2W is a wiring device that provides both USB and AC power in a standard one-gang electrical box. With this device, users can charge personal electronics and power devices simultaneously, making it suitable for renovation projects, new constructions, or installations needing extra USB charging capacity.

• Supports two USB ports rated at three amps at five volts DC.
• Features tamper-resistant design for added safety.
• Environmental conditions range from minus forty to seventy-five degrees Celsius.

Product Highlights

This product is designed for quick installation with back and side wiring capabilities and is made from RTP material, ensuring durability.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Electrical Ratings: 125 VAC, 15 A, 1/2 hp
• Phase: 1 ph
• Number of Poles: 2
• Number of Wires: 3
• Mounting Type: Flush/Threaded
• Size: 4.12 inches H x 1.96 inches D
• USB Quantity: 2
• USB Type: Type-A USB 2.0
• USB Rating: 3 A at 5 VDC
• Insulation: Class 2.0
• Wiring Method: Grounding
• Wire Size: 14 to 10 AWG
• Color: White
• Grade: Commercial/Specification
• Connection: Back/Side Wired/Screw
• Environmental Conditions: -40 to 75 degrees Celsius Operating Temperature
