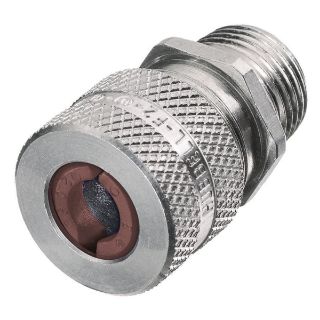

Wiring Device-Kellems SHC1034 3/4 Inch Standard Duty Straight Cord Connector

Product Description

The Wiring Device-Kellems SHC1034 is a cord connector designed for standard duty applications. This connector accommodates three-quarter inch trade size and is suitable for conductors with cable openings ranging from half to zero point sixty-three inches. Made from machined aluminum, it is effective in harsh environments and meets safety standards.

• Rated for -30 to 225 degrees Fahrenheit
• Compatible with jacketed cables
• Uses MNPT connection type

Product Highlights

Utilized for wet locations with proper installation methods, the SHC1034 ensures reliability in critical applications.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• MPN: SHC1034

Technical Specifications

• Material: Aluminum
• Connection Type: MNPT
• Trade Size: 3/4 in
• Temperature Rating: -30 to 225 degrees F
• Dimensions: 1.13 in diameter x 1.65625 in length
• Number of Conductors: 1
• Cable Openings: 0.5 to 0.63 in
• Standards: CSA Certified, RoHS Compliant, UL 514B
