Wiring Device-Kellems PT2X2GY Wiring Device 1-Piece Flush Standard Sized

Product Description

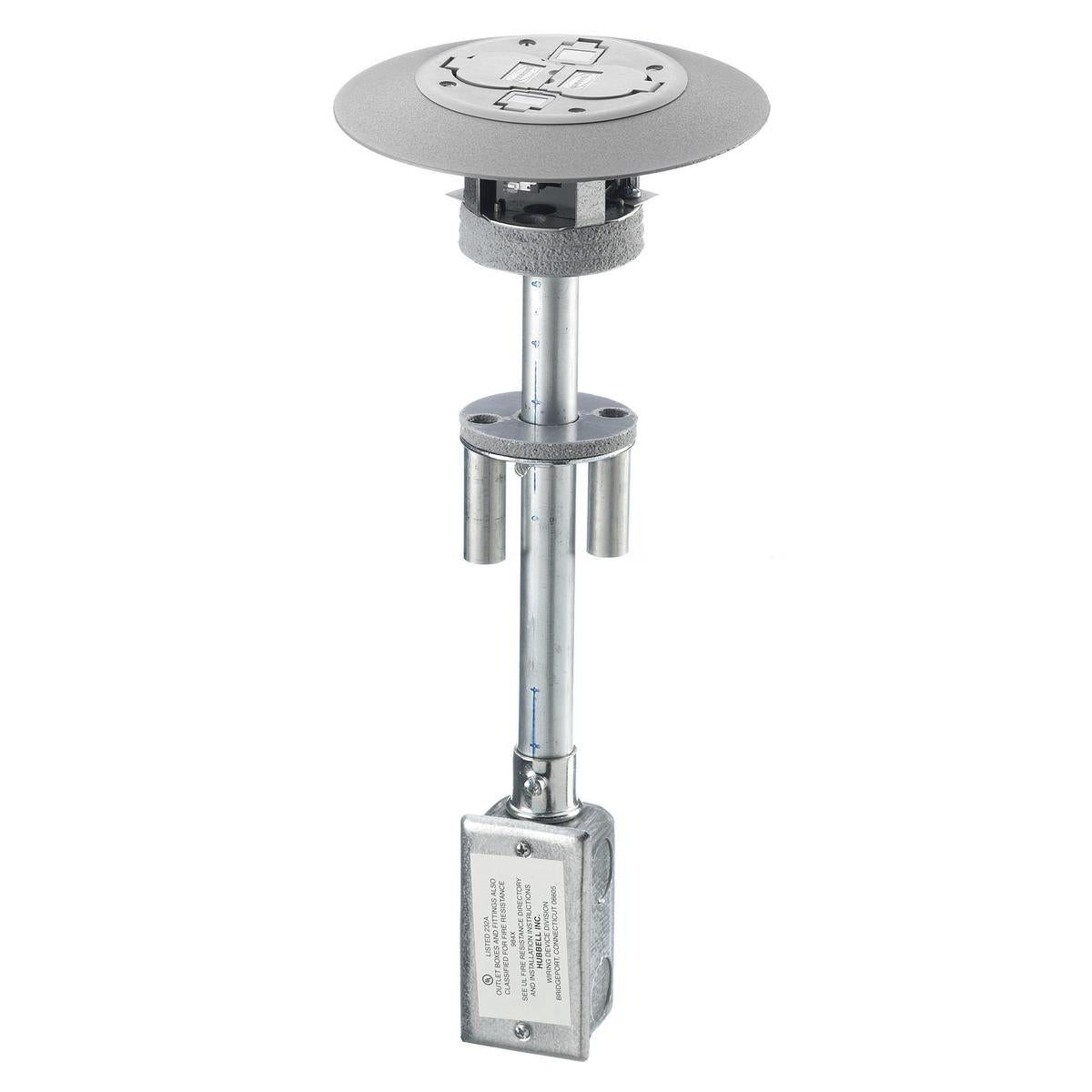

The Wiring Device-Kellems PT2X2GY is a flush, standard-sized poke-through unit designed for in-floor delivery systems and concrete floors. This single-piece unit features a three-inch hole and a knock-out that measures three-quarters of an inch. Made from composite materials, it includes a thermoplastic cover that is fire-rated and offers a capacity of thirteen cubic inches. The overall length is sixteen point sixty-seven inches, with a cover diameter of seven inches and a thickness of zero point fifty-eight inches.

• Used with in-floor delivery systems
• Fire-rated for safety
• Composite construction for durability

Product Highlights

This unit is perfect for electrical installations where you need access to power without visible wiring or obstruction.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 1-Piece Flush Standard Sized
• Color: Gray
• Cover Material: Thermoplastic
• Device Type: Fire-Rated
• Knockout Size: 3/4 in
• Length: 16.67 in
• Suitable For Use With: In-Floor Delivery Systems and Concrete Floors
• Hole Size: 3 in
• Cover Size: 7 in Dia x 0.58 in THK
• Capacity: 13 cu-in
• Material: Composite
