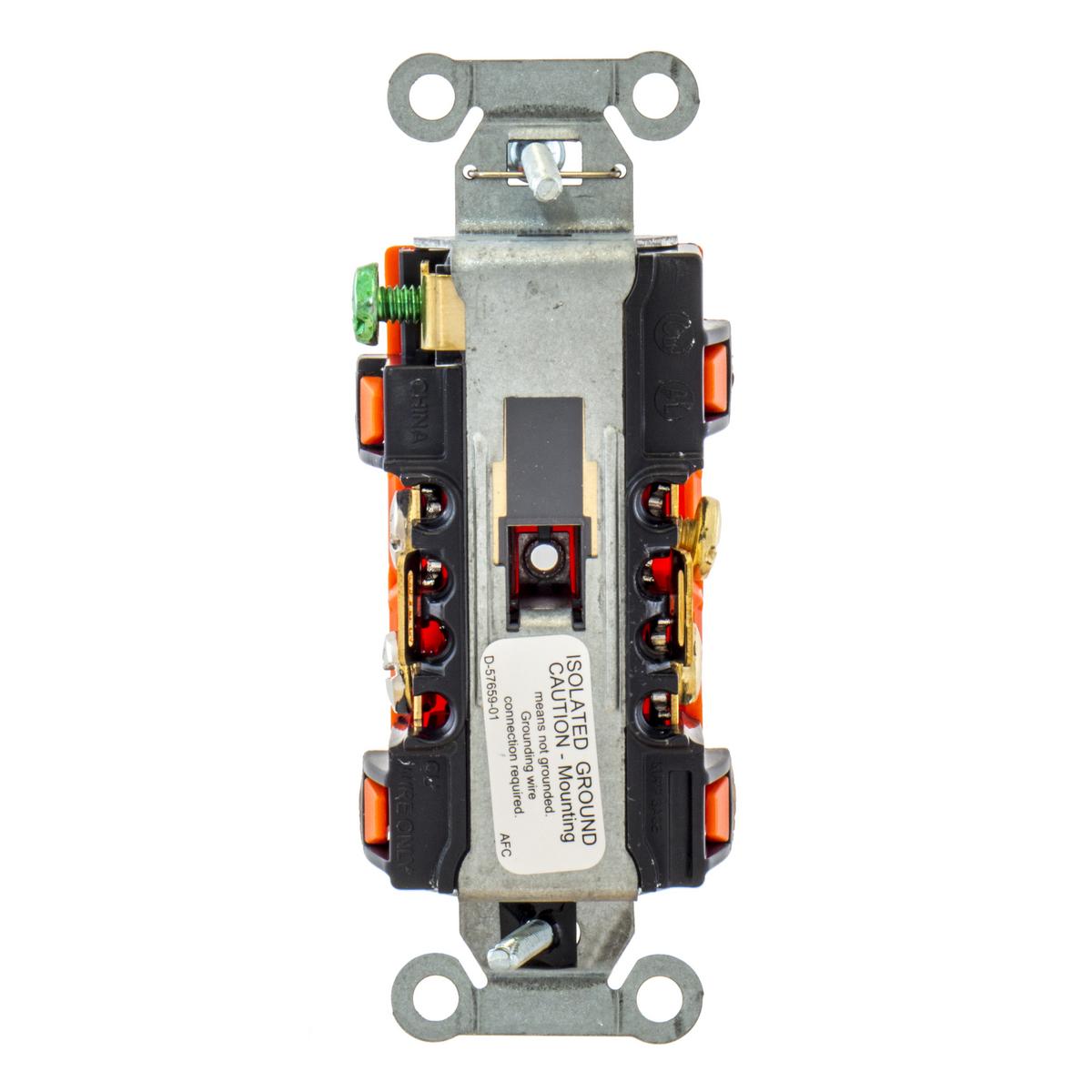

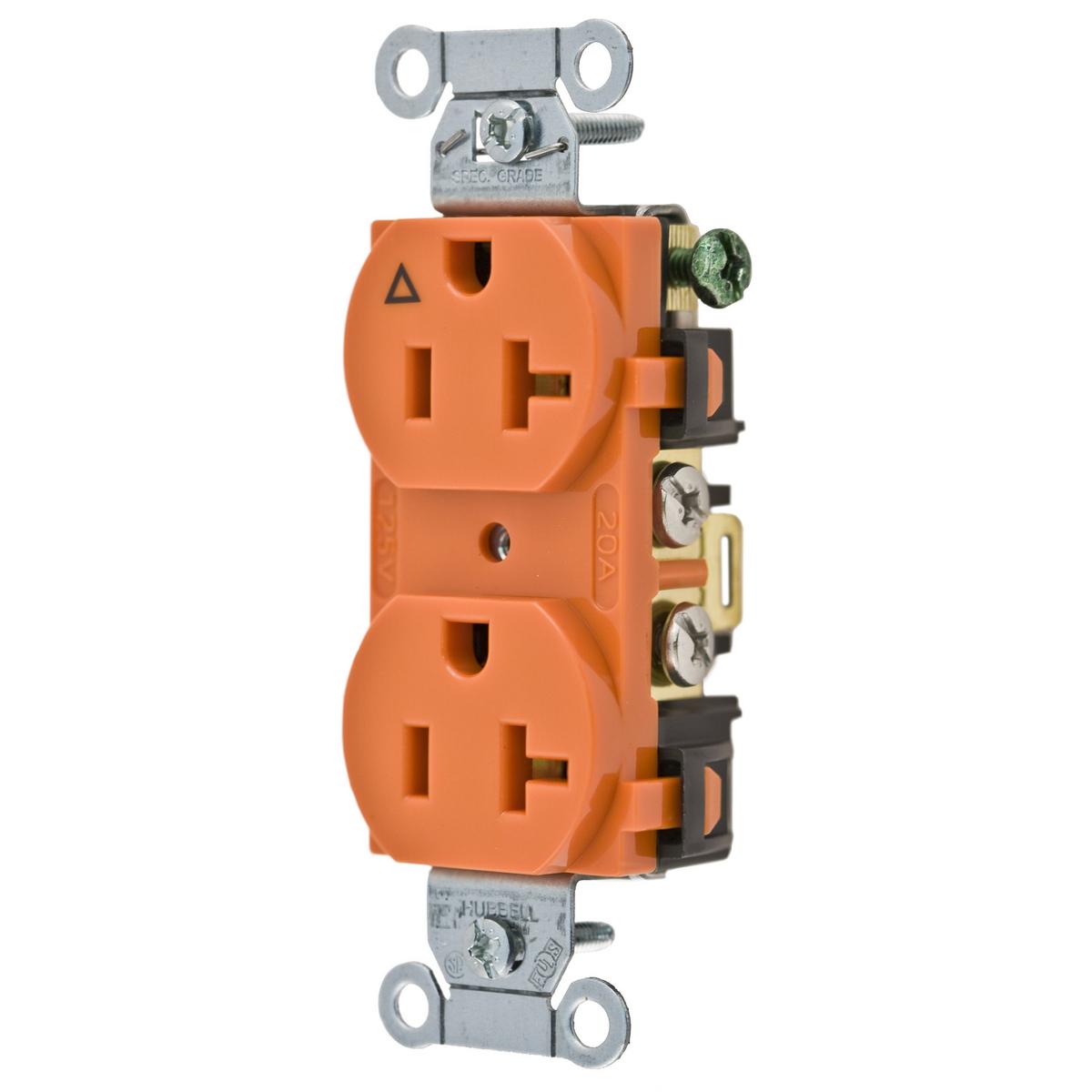

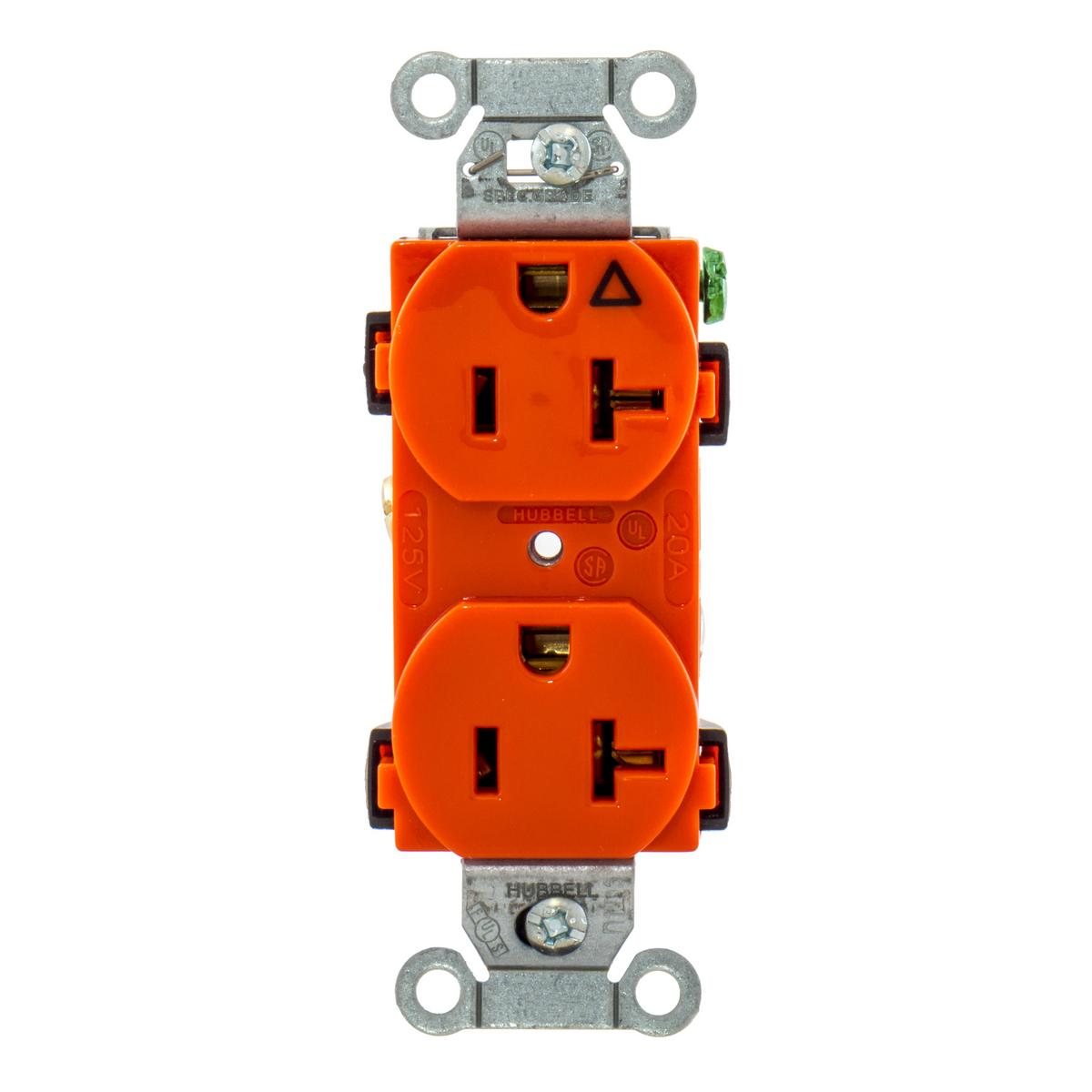

Wiring Device-Kellems IG5352 Heavy Duty Screw Mount Straight Blade Receptacle 125 VAC 20 A

Product Description

The Wiring Device-Kellems IG5352 is a robust straight blade receptacle designed for heavy-duty applications. This 1-phase duplex grounding device operates at 125 VAC with a current rating of 20 A. It features a dual-pole, three-wire configuration and is made from nylon material for durability. This receptacle is ideal for commercial settings and has a NEMA rating of 5-20R.

• Heavy duty screw mount design

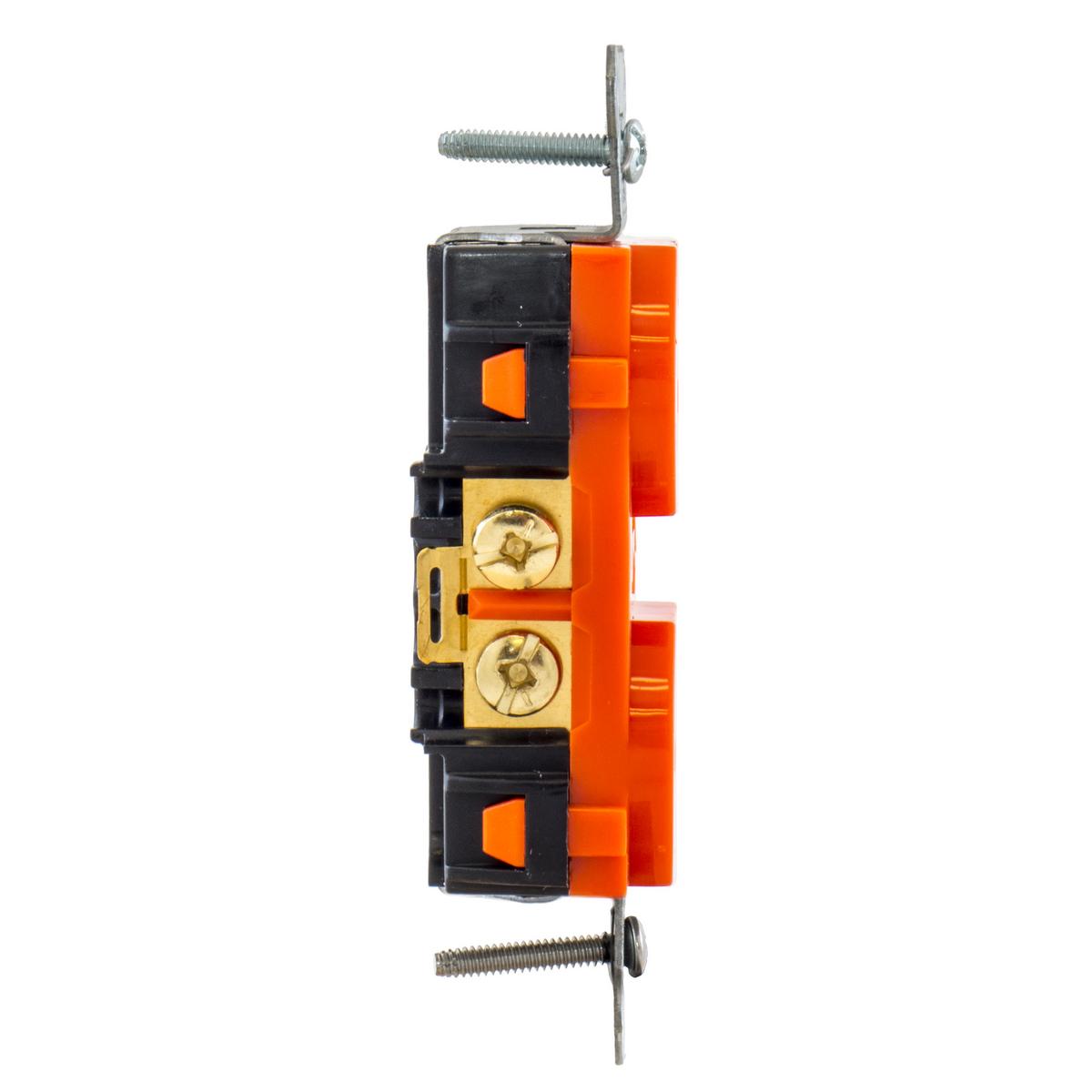

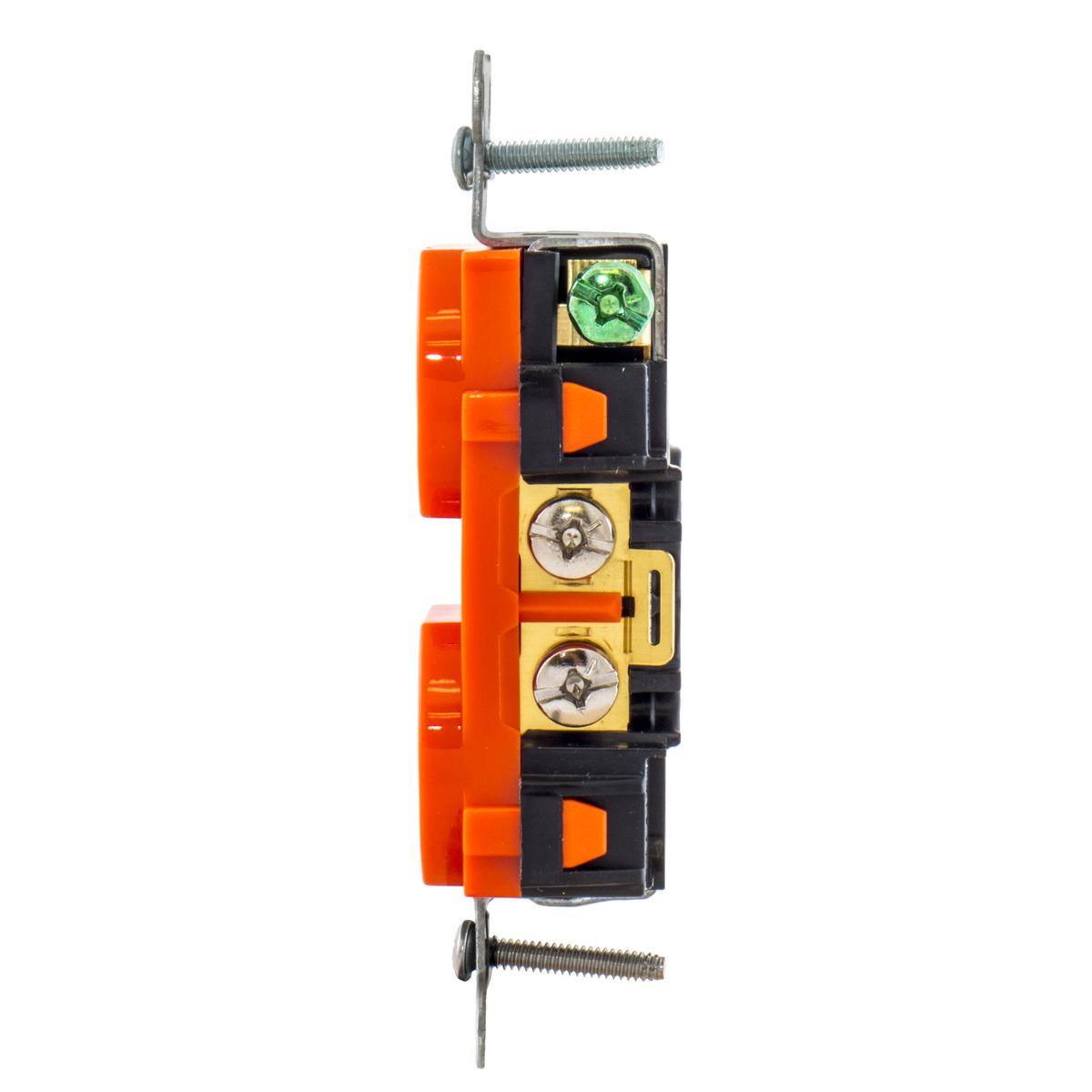

• Back and side wire/screw terminal
• Temperature range from -40 to 75 degrees Celsius

Product Highlights

This receptacle is suitable for various indoor applications, providing reliability and safety in electrical connections.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase Duplex Grounding Heavy Duty Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Color: Orange
• Material: Nylon
• Temperature Rating: -40 to 75 degrees Celsius
• Dimensions: 3.28 inches by 1.57 inches by 1.07 inches
