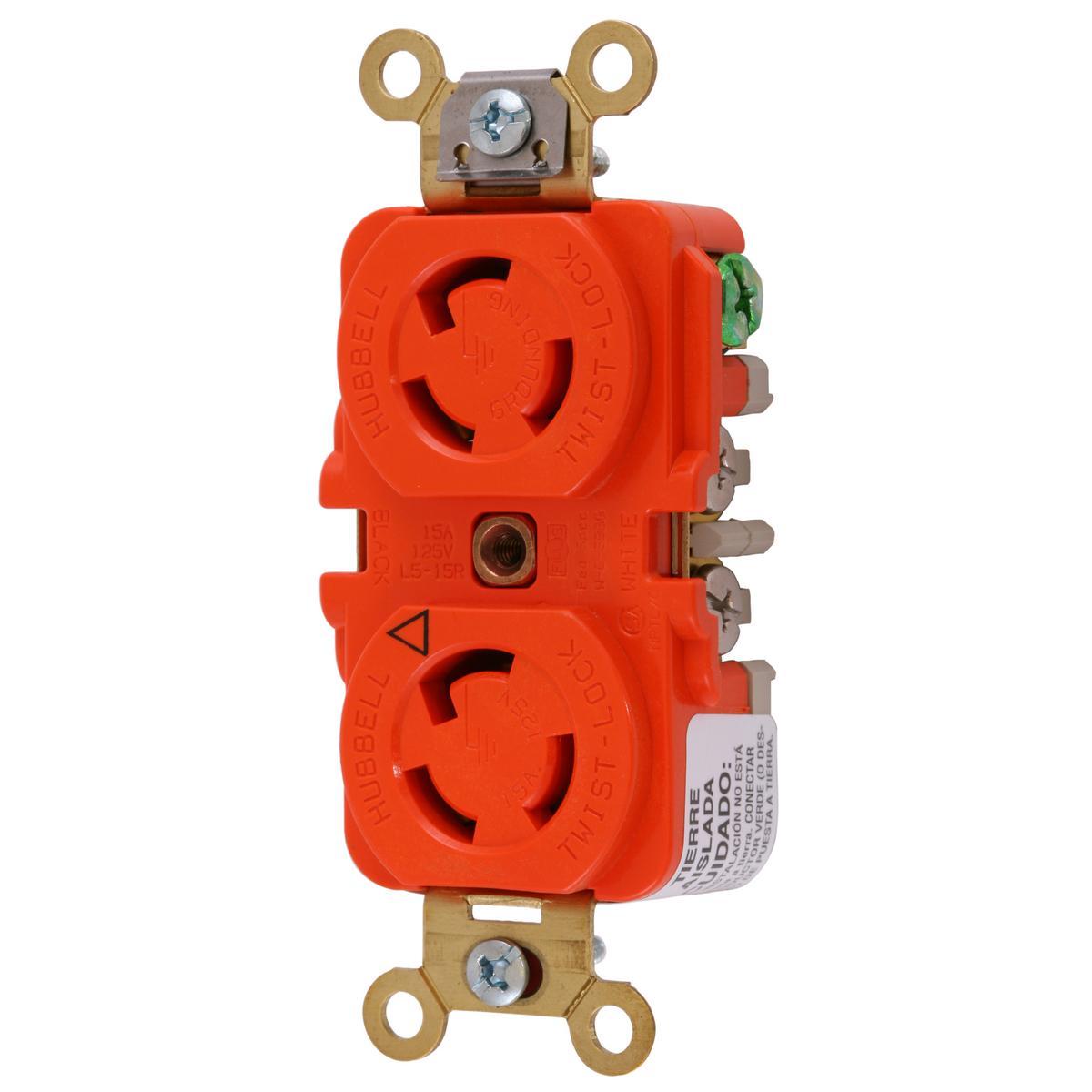

Wiring Device-Kellems IG4700A 1-Phase Heavy Duty Duplex Grounding Standard Traditional Screw Mount IG4700A HW

Product Description

The Wiring Device-Kellems IG4700A is a heavy-duty locking receptacle designed for industrial use. This model features a traditional screw mount design and operates at 125 VAC with a 15 A rating. It includes a two-pole configuration and three-wire setup, making it suitable for various applications. The receptacle is constructed from thermoplastic material, providing durability in harsh environments.

• Rated for 125 VAC and 15 A
• Temperature range from -40 to 75 degrees C
• L6-15R NEMA rating for industrial applications

Product Highlights

This locking receptacle supports reliable connections in demanding environments. The screw terminal design simplifies installation and maintains strong connectivity.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase Heavy Duty Duplex Grounding Standard Traditional Screw Mount
• Dimensions: 3.29 x 1.7 x 1.17 inches
• Grade: Industrial
• Horsepower: 1/2 hp
• Material: Thermoplastic
• NEMA Rating: L6-15R
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Orange
