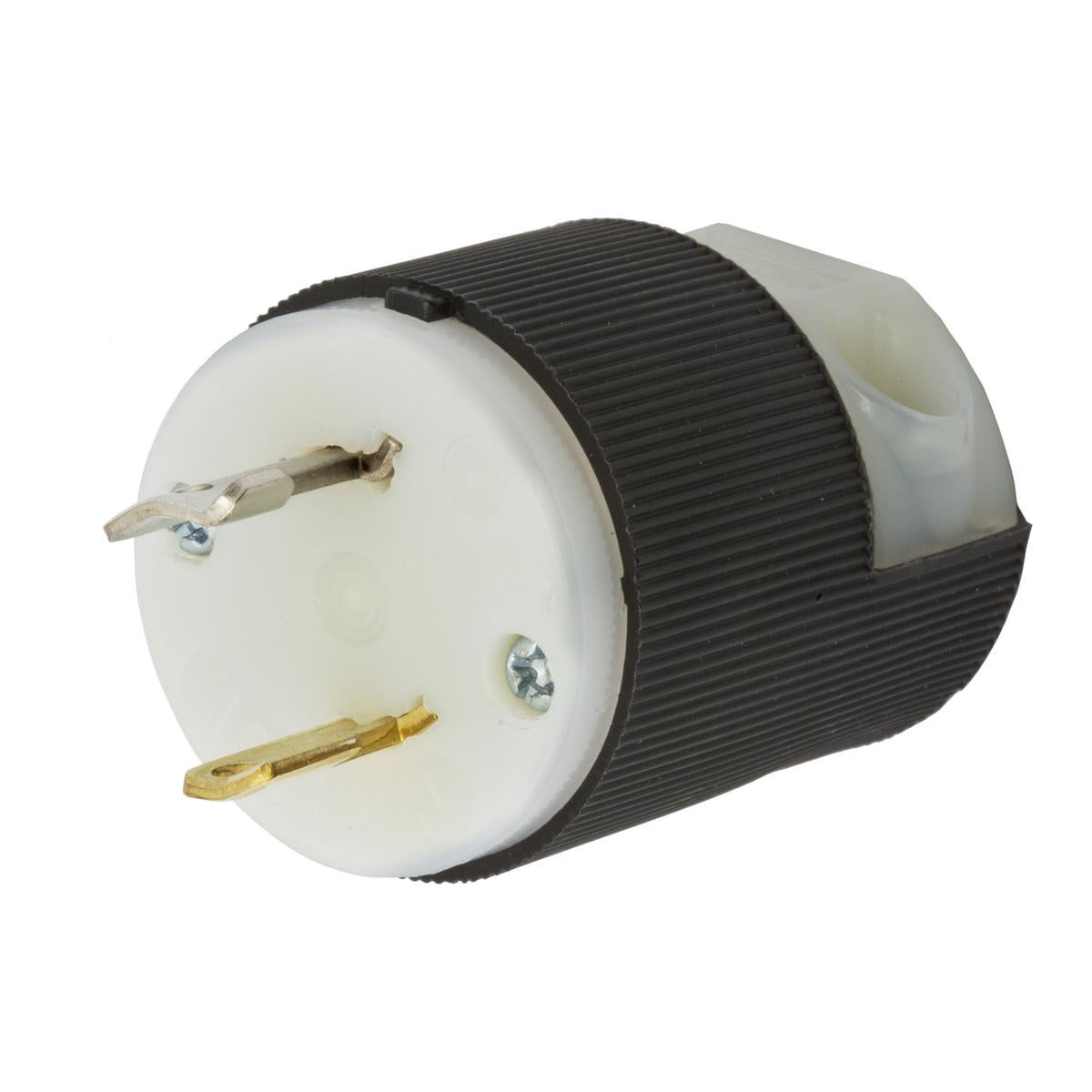

Wiring Device-Kellems HBL7545C Twist-Lock 125 VAC 15 A Locking Plug

Product Description

The Wiring Device-Kellems HBL7545C is a twist-lock locking plug designed for non-grounding applications. It operates at one hundred twenty-five volts alternating current and supports up to fifteen amperes. This plug comes with two poles and three wires, making it suitable for various industrial settings.

• Compatible with 0.23 to 0.72 inch diameter cords.
• Temperature rated for use between -40 and 75 degrees Celsius.
• Features a composite construction and IP20 enclosure.

Product Highlights

This device is built for reliability, capable of withstanding a dielectric voltage of two thousand VAC. It is certified for current interrupting at full rated current.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase Non-Grounding Cord Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Horsepower: 1/2 hp
• Dimensions: 1.96 x 1.52 x 1.52 in
• Cord Diameter: 0.23 to 0.72 in
• Materials: Composite
• Enclosure: IP20
• NEMA Rating: L1-15P
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
