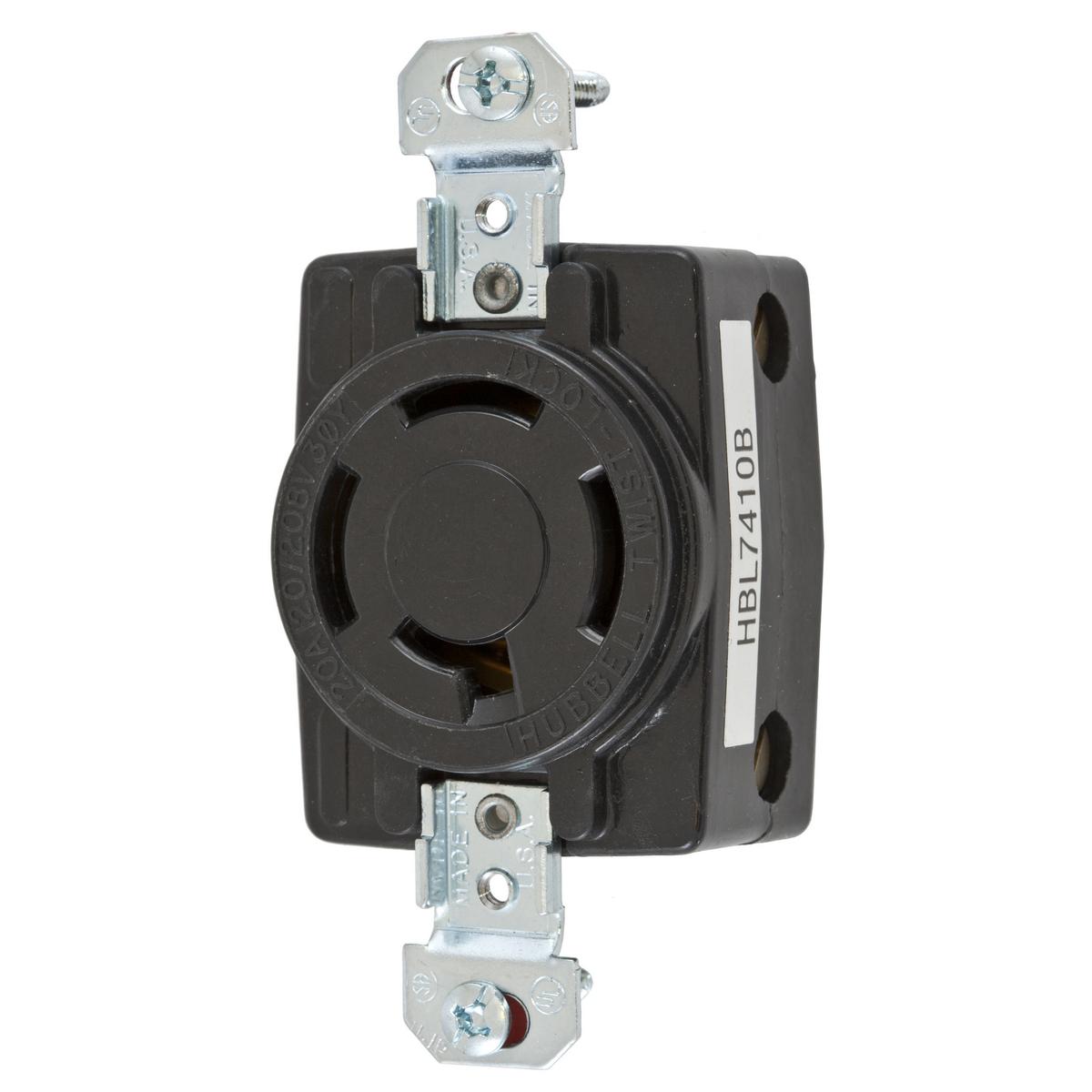

Wiring Device-Kellems HBL7410B 3-Phase Heavy Duty Single Screw Mount Locking Receptacle

Product Description

The Wiring Device-Kellems HBL7410B is a locking receptacle designed for heavy duty applications. This receptacle supports three-phase power with a voltage rating of one hundred twenty Y/208 VAC and handles a maximum of twenty amperes. It features a single screw mount for secure installation and is made from industrial grade nylon, offering durability in challenging environments.

• Designed for 3-phase heavy-duty applications
• Temperature rated from minus forty to seventy-five degrees Celsius
• Includes screw terminals for secure wire connections

Product Highlights

This product is ideal for industrial environments where reliability is crucial. It features a robust design and meets high safety standards.

Product Information

Standard Information

• Grade: Industrial
• Material: Nylon

Technical Specifications

• Type: 3-Phase Heavy Duty Single Screw Mount
• Voltage Rating: 120Y/208 VAC
• Amperage Rating: 20 A
• Number of Poles: 4
• Number of Wires: 4
• Color: Black
• Dimensions: 3.61 x 1.71 x 1.28 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Series: HBL®
