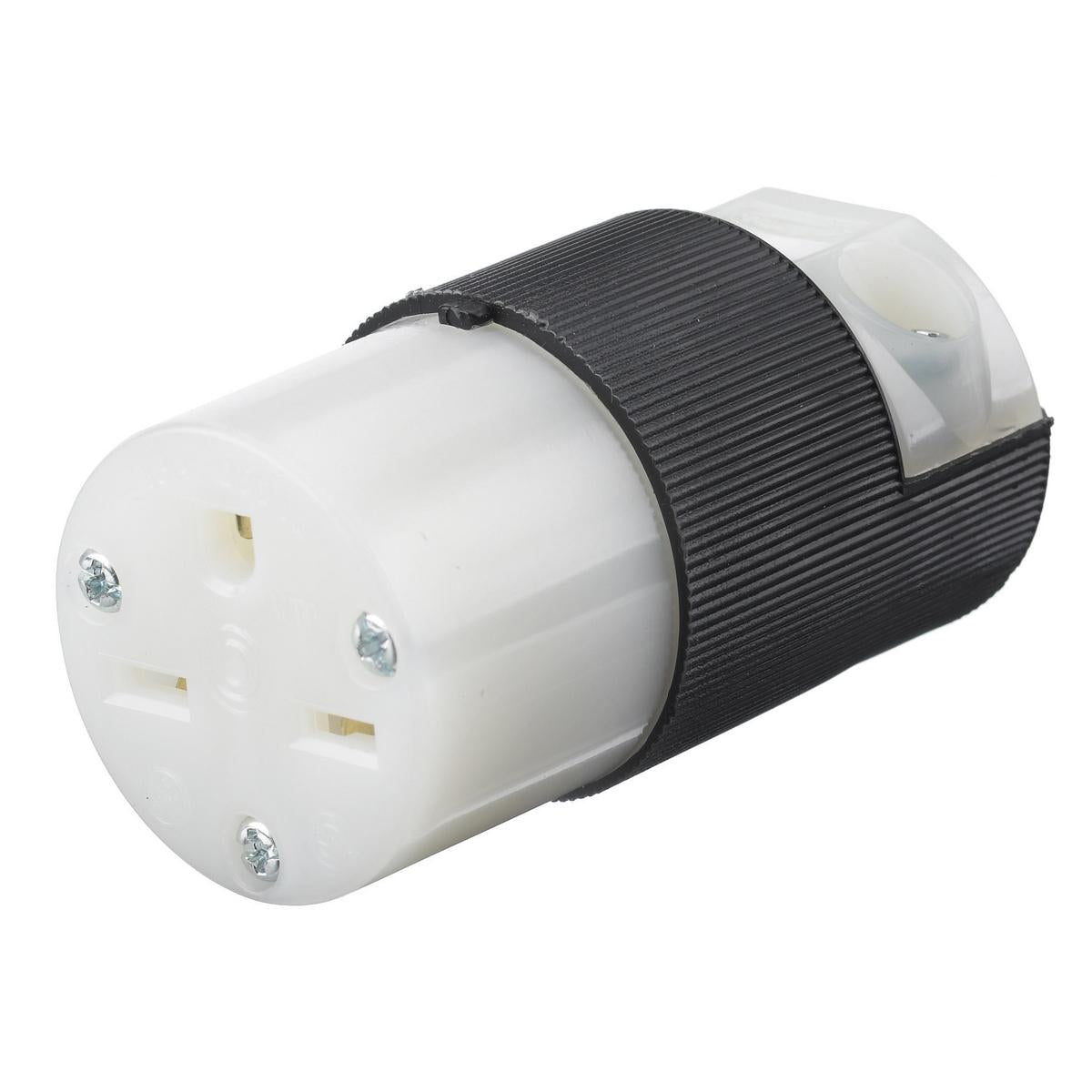

Wiring Device-Kellems HBL5669C Insulgrip Straight Blade Connector 250 VAC

Product Description

Wiring Device-Kellems HBL5669C is a female grounding insulated cord mount straight blade connector. It operates at 250 VAC and has a fifteen amp rating. This connector has two poles and supports three wires. It features a six to fifteen R (NEMA) rating, making it suitable for commercial and industrial applications.

• Insulgrip design for Secure Connections
• Suitable for a cord diameter of 0.23 to 0.72 inches
• Withstands temperatures from -40 to 75 degrees Celsius

Product Highlights

This connector is ideal for various wiring tasks in residential and industrial settings. Its nylon construction ensures durability while the screw terminals facilitate easy connections.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: HBL5669C
• Type: Female Grounding Insulated Cord Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 15 A
• Horsepower: 2 hp
• Number of Poles: 2
• Number of Wires: 3
• Color: Black/White
• Enclosure: IP20
• Grade: Commercial/Industrial
• Cord Diameter: 0.23 to 0.72 in
• Dimensions: 2.78 x 1.53 x 1.53 in
• NEMA Rating: 6-15R
• Material: Nylon
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
