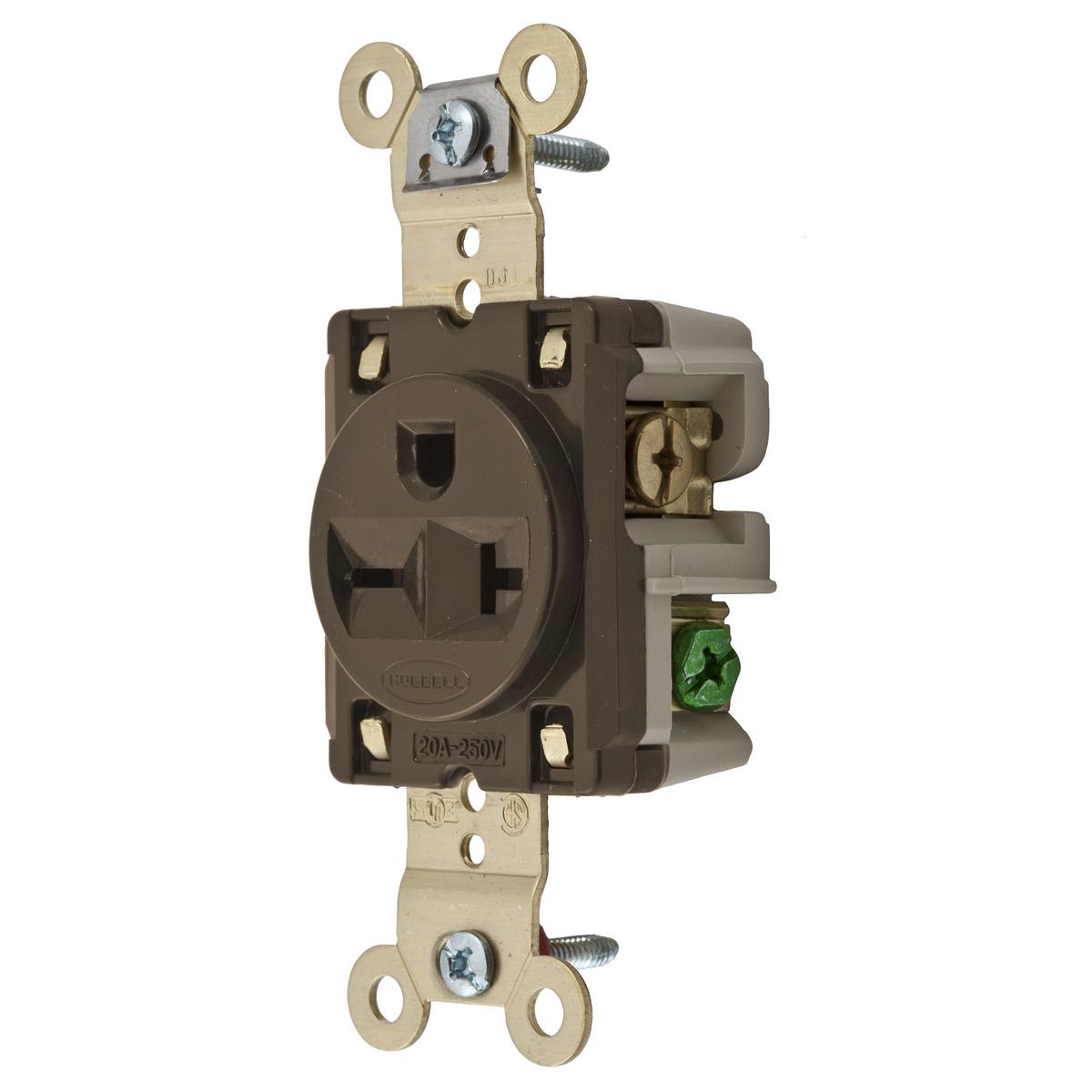

Wiring Device-Kellems HBL5461 1-Phase Extra Heavy Duty Self-Grounding Single Screw Mount

Product Description

Wiring Device-Kellems offers the HBL5461, a straight blade receptacle designed for heavy-duty use. This single screw mount receptacle is rated for a voltage of 250 VAC and an amperage of 20 A, making it suitable for various applications. The receptacle features a marine-grade construction, ensuring durability in demanding environments.

• Rated for 250 VAC and 20 A
• Self-grounding design with dual terminal types
• Marine grade and temperature rating of -40 to 75 degrees Celsius

Product Highlights

The HBL5461 is built for reliability with its thermoplastic and composite materials. It includes both back and side wire capabilities and accommodates conductors ranging from fourteen to ten AWG. Designed for professional use, it ensures a secure and enduring connection.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 1-Phase Extra Heavy Duty Self-Grounding Single Screw Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Horsepower: 2 hp
• NEMA Rating: 6-20R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Dimensions: 3.28 x 1.63 x 1.19 inches
• Material: Thermoplastic/Composite
• Color: Brown
