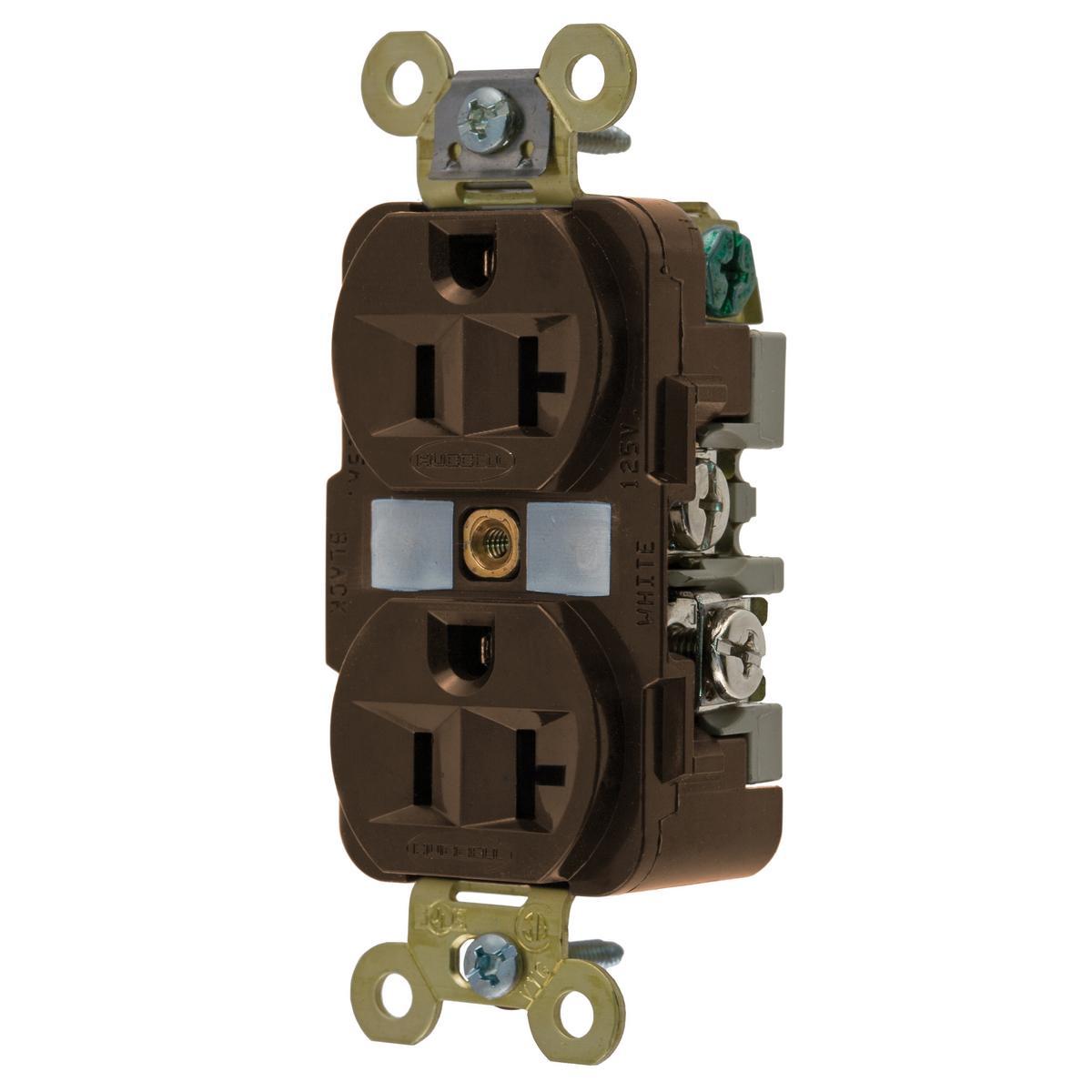

Wiring Device-Kellems HBL5362 1-Phase Duplex Extra Heavy Duty Self-Grounding Screw Mount

Product Description

The Wiring Device-Kellems HBL5362 is a straight blade receptacle designed for durability and safety. This 1-phase duplex receptacle features self-grounding and accommodates heavy-duty applications. It operates at 125 VAC with a capacity of 20 A and is suitable for various industrial settings.

• Temperature Rating: -40 to 75 degrees Celsius
• Grade: Industrial
• Material: Thermoplastic/Composite

Product Highlights

This receptacle is ideal for demanding environments needing reliable power connections. It features a back and side wire/screw terminal for installation flexibility.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 3.28 x 1.65 x 1.19 inches
• Horsepower: 1 hp
• NEMA Rating: 5-20R
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Terminal Type: Back and Side Wire/Screw
• Color: Brown
