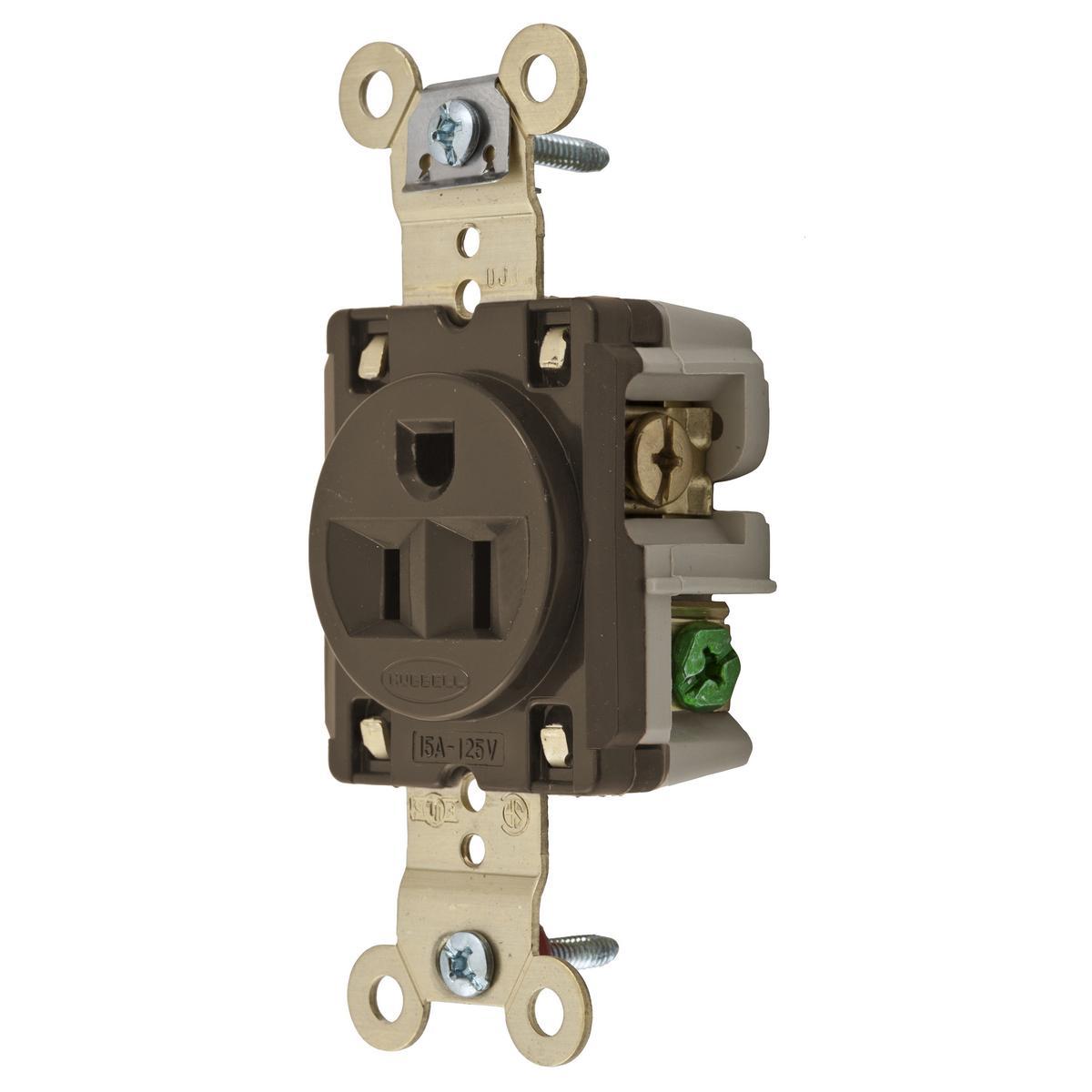

Wiring Device-Kellems HBL5261 1-Phase Extra Heavy Duty Single Screw Mount

Product Description

The Wiring Device-Kellems HBL5261 is a straight blade receptacle designed for heavy-duty applications. This product operates at a voltage of one hundred twenty-five volts with a maximum current of fifteen amps. It features a single screw mount and is suitable for side wiring. The receptacle is made from thermoplastic composite and rated for industrial use. It can function within a temperature range of negative forty to seventy-five degrees Celsius.

• Voltage rating: 125 VAC
• Current rating: 15 A
• Industrial grade receptacle with NEMA 5-15R rating

Product Highlights

This straight blade receptacle offers reliable connectivity for various electrical devices. Its design includes a sturdy single screw mount and accommodates up to three wires.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• MPN: HBL5261

Technical Specifications

• Dimensions: 3.28 inches x 1.63 inches x 1.19 inches
• Grade: Industrial
• Horsepower: 1/2 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 75 degrees C
• Terminal Type: Side Wired
• Number of Poles: 2
• Number of Wires: 3
• Color: Brown
