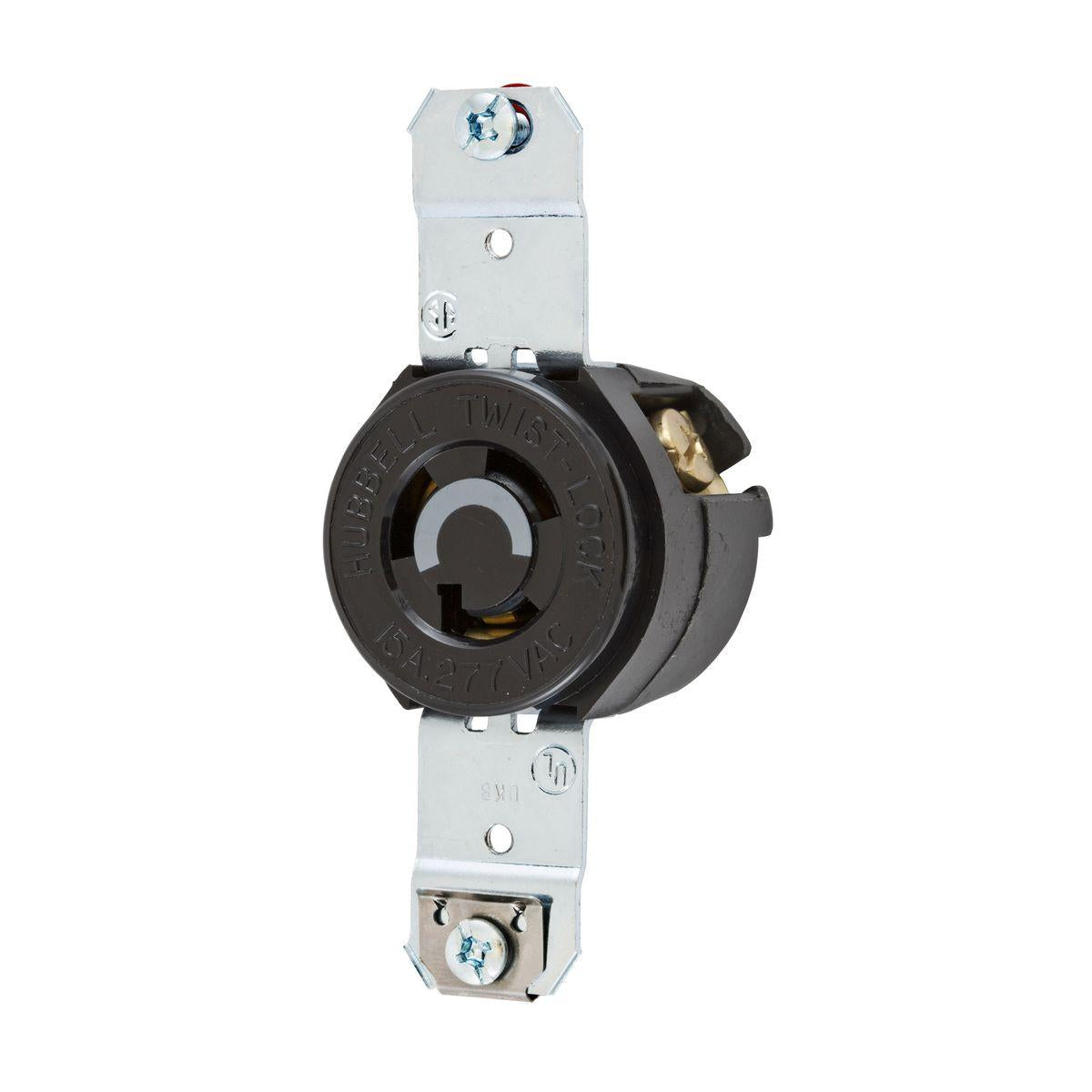

Wiring Device-Kellems HBL4760C Grounding Single Locking Receptacle 277 VAC 15 A

Product Description

The Wiring Device-Kellems HBL4760C is a twist-lock grounding receptacle designed for durability and safety. This receptacle operates at 277 VAC and supports a maximum of 15 amps. It is ideal for industrial applications where reliable connections are essential.

• Grounding single design with two poles and three wires
• Rated for industrial use with a temperature range of -40 to 75 degrees Celsius
• Features screw terminal connections for secure wiring

Product Highlights

This wiring device is optimized for heavy-duty environments, allowing for secure and stable connections in various electrical systems.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 1.38 inches OD
• Grade: Industrial
• Horsepower: 2 hp
• Material: Thermoplastic
• NEMA Rating: NEMA L7-15R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Voltage Rating: 277 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Brown
