Wiring Device-Kellems HBL4125C6W

Product Description

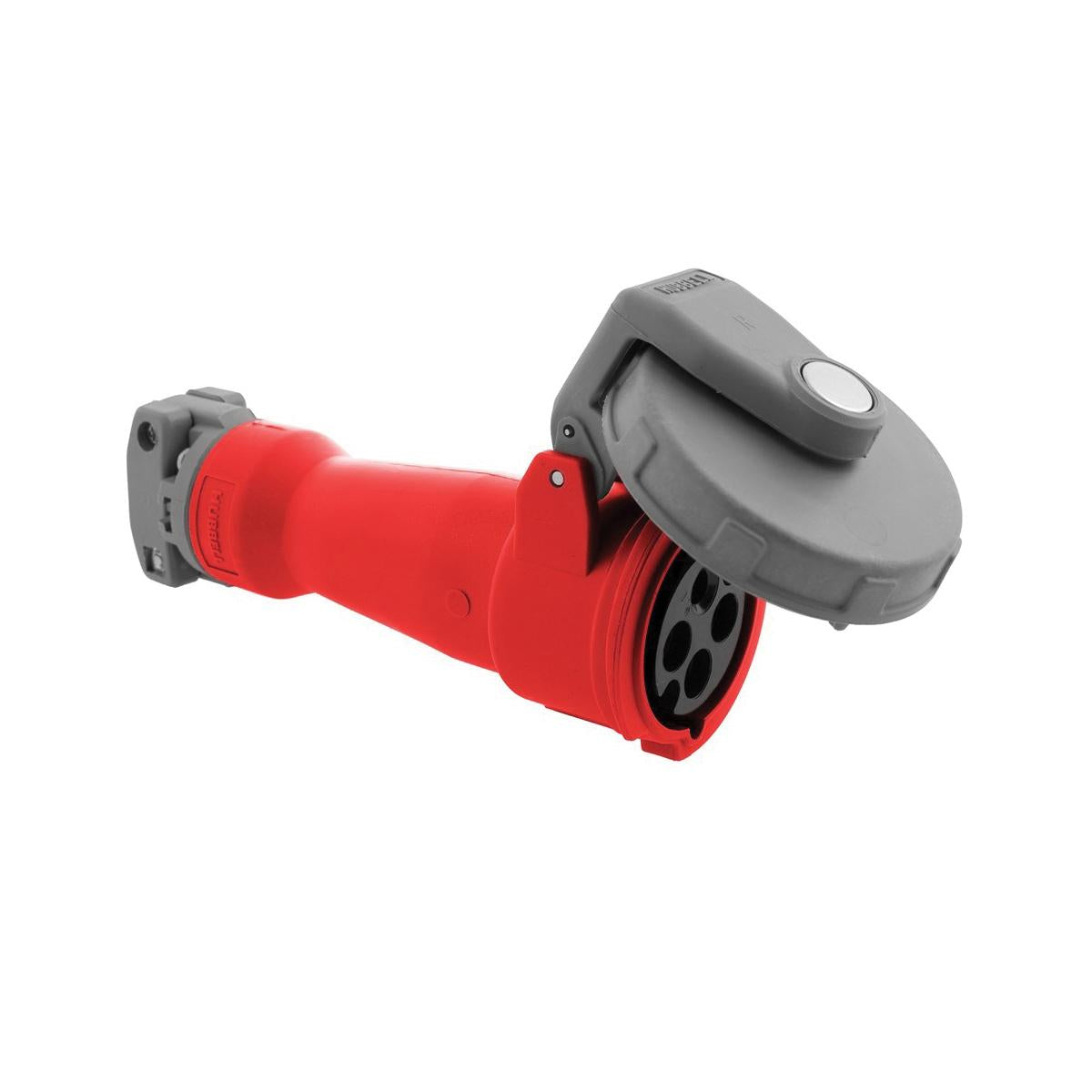

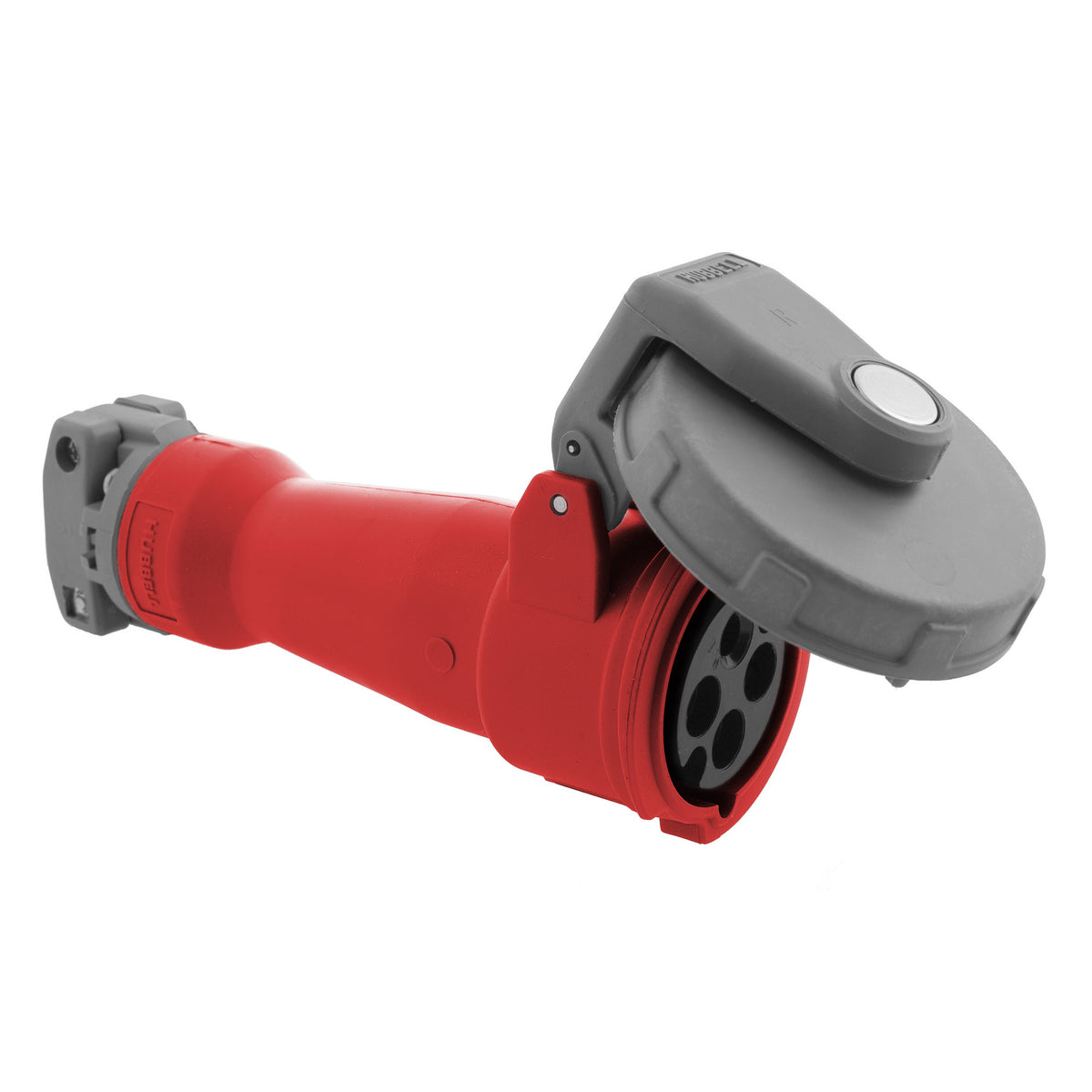

The Wiring Device-Kellems HBL4125C6W is a female heavy duty standard watertight pin and sleeve connector designed for reliable electrical connections. It operates at a voltage of 380/415 VAC and has a current rating of 125 A, making it suitable for industrial applications that demand high performance.

• Heavy duty construction for durability
• Features a self-closing gasketed cover
• Temperature rating from -40 to 75 degrees Celsius

Product Highlights

This device is ideal for environments where watertight connections are crucial. It combines a robust design with features that enhance usability and safety, including color-coded housings for easy identification based on voltage.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 13.57 in L x 5.71 in W
• Grade: Industrial
• Material: Composite/Nylon
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
• Type: Female Heavy Duty Standard Watertight
• Voltage Rating: 380/415 VAC
• Amperage Rating: 125 A
• Number of Poles: 3
• Number of Wires: 4
• Color: Red
