Wiring Device-Kellems HBL25W47 Grounding Heavy Duty Cord Mount Watertight 125 VAC

Product Description

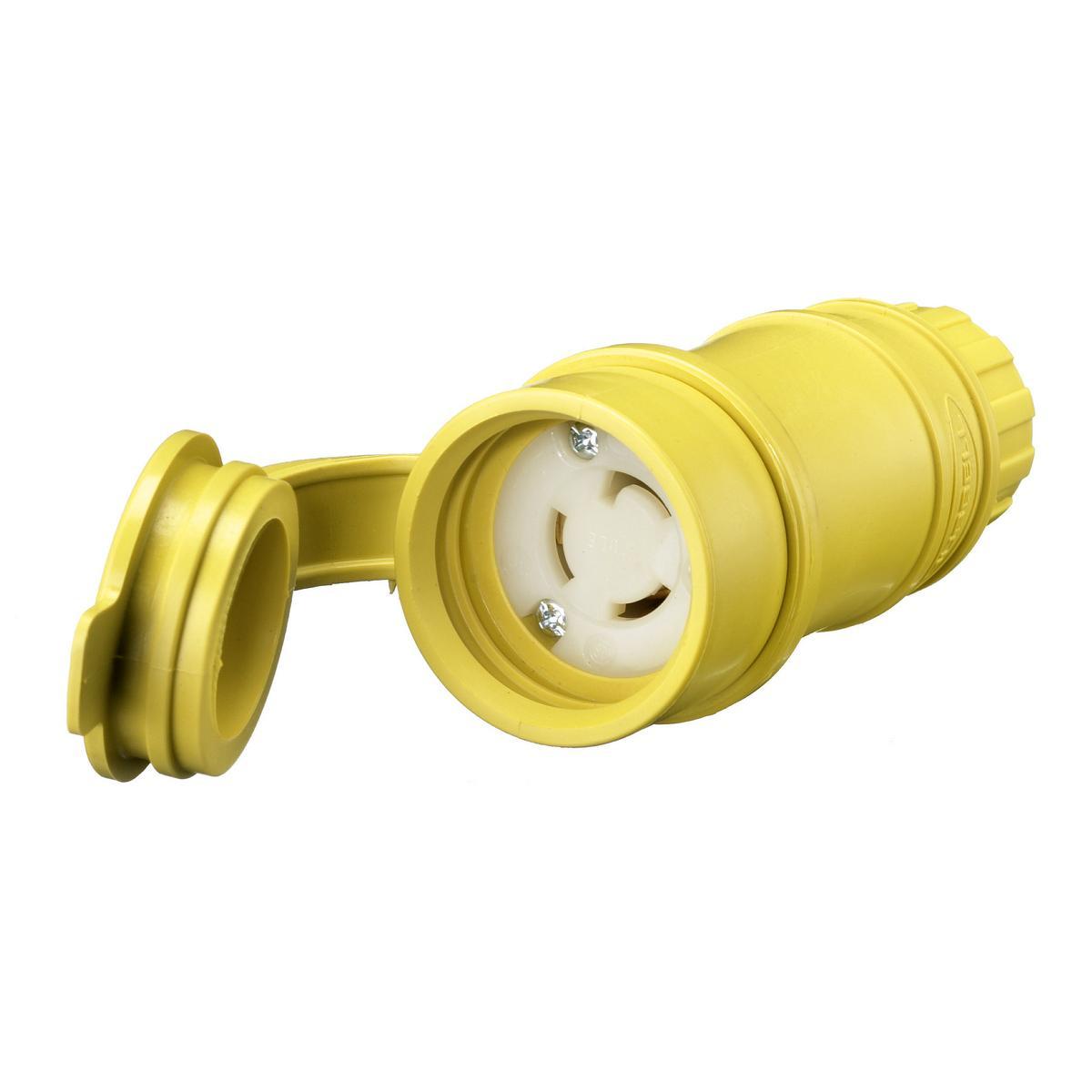

The Wiring Device-Kellems HBL25W47 is designed for use in demanding environments. This heavy-duty cord mount locking connector offers watertight performance suitable for harsh conditions. Ideal for industrial applications, it operates at 125 VAC and supports a current rating of 15 Amps. This connector is built to accommodate a cord diameter between 0.3 and 0.65 inches, ensuring a secure and reliable connection.

• Features an integral weatherproofing shroud to seal the connection.
• Constructed with a nylon compression nut to prevent water and dust ingress.
• Includes a clear polycarbonate terminal retainer for added protection.

Product Highlights

This connector is ideal for waterproof electrical connections in various applications, including construction sites and industrial settings. Its industrial-grade design ensures durability and reliability.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: HBL25W47
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 2
• Temperature Rating: -40 to 75 deg C
• Enclosure: IP20
• Material: Elastomer
• NEMA Rating: L6-15R
• Dimensions: 1.76 x 1.76 x 4.03 inches
• Cord Diameter: 0.3 to 0.65 inches
