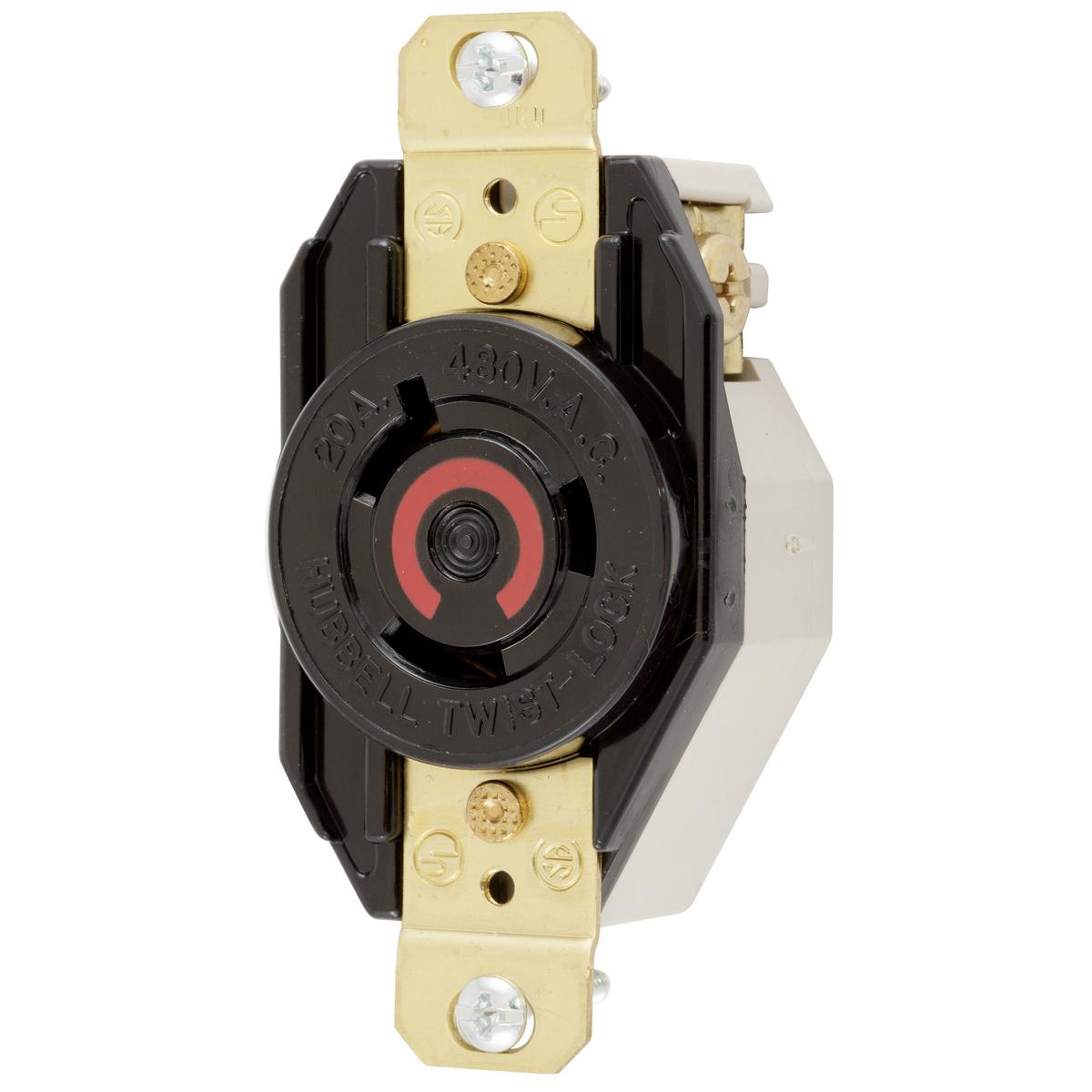

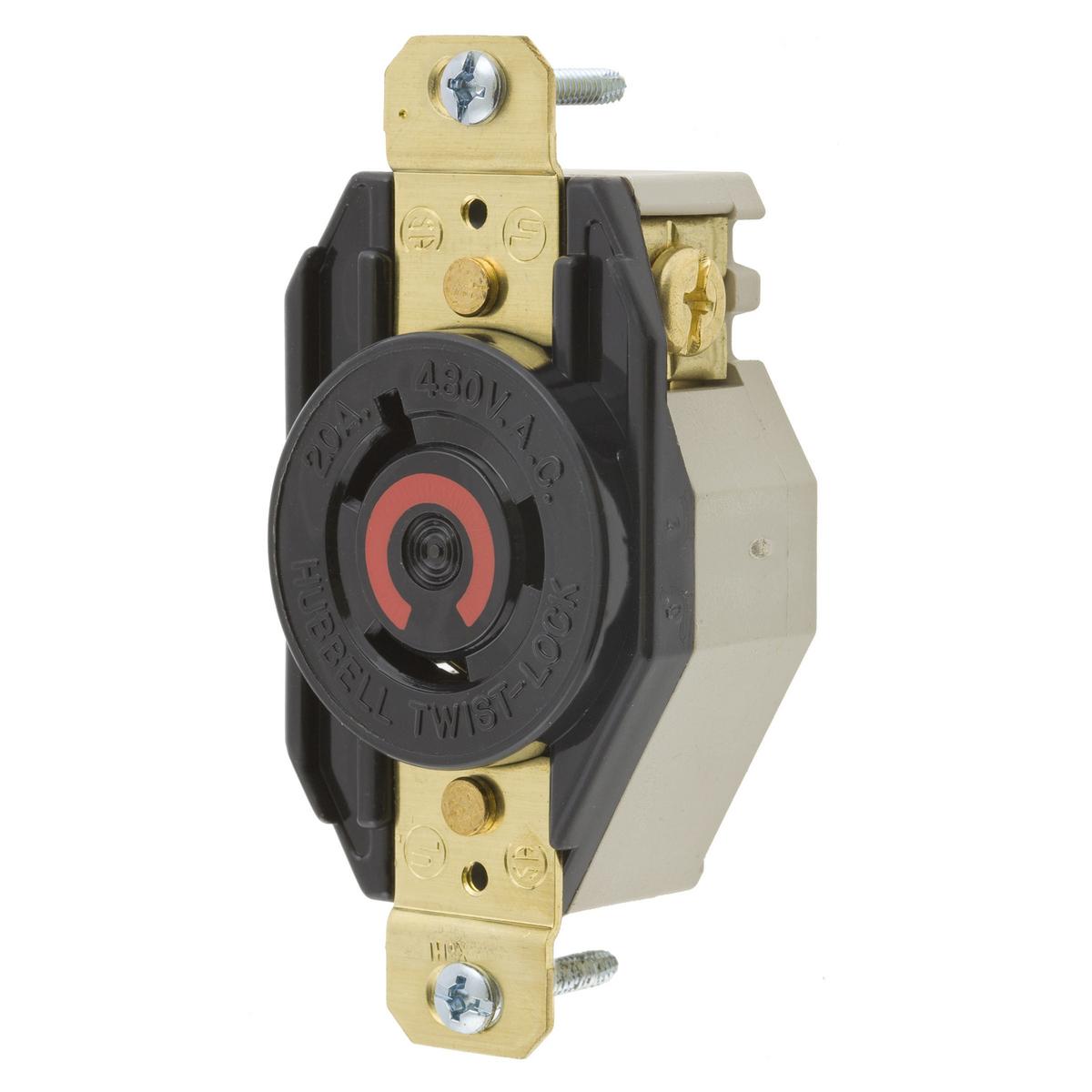

Wiring Device-Kellems HBL2340 1-Phase Heavy Duty Single Screw Mount Locking Receptacle

Product Description

The Wiring Device-Kellems HBL2340 is a locking receptacle designed for heavy-duty applications. It operates on 480 VAC with a current rating of 20 A. This locking receptacle features two poles and accommodates three wires. It is part of the HBL series from Hubbell.

• Rated for 480 VAC and 20 A
• Constructed from durable nylon for industrial applications
• Features a locking mechanism for secure connections

Product Highlights

This receptacle meets the L8-20R NEMA rating, allowing it to function effectively in various industrial environments.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Part Number: HBL2340 HW

Technical Specifications

• Dimensions: 3.28 x 1.7 x 1.23 in
• Grade: Industrial
• Horsepower: 3 hp
• Material: Nylon
• NEMA Rating: L8-20R
• Series: HBL®
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Type: 1-Phase Heavy Duty Single Screw Mount
• Voltage Rating: 480 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Black
